| SM8S36A-TP | ||
|---|---|---|
|
|
||
|
||

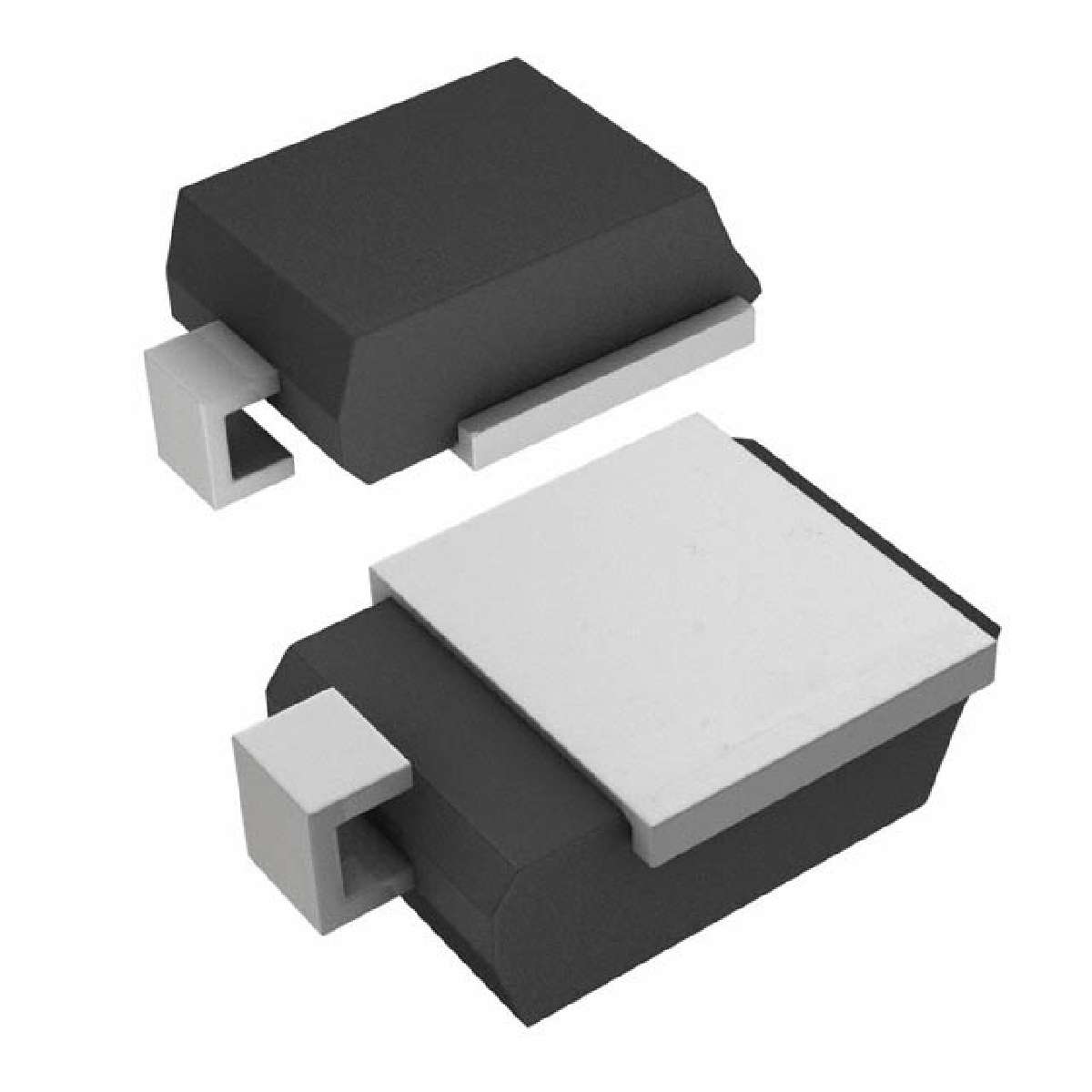

| Product description : SMBSXXA Series 6.8 kW 36 V Uni Directional TVS Diode - DO-218AB | ||
| SPQ：750 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Power - Peak Pulse | 6600W (6.6kW) |
|---|---|
| Type | Zener |
| Power Line Protection | No |
| Part Status | Active |
| Manufacturer | Micro Commercial Co |
| Voltage - Breakdown (Min) | 40V |
| Unidirectional Channels | 1 |
| Applications | Automotive |
| Voltage - Reverse Standoff (Typ) | 36V |
| Packaging | Digi-Reel® |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Voltage - Clamping (Max) @ Ipp | 58.1V |
| Category | Circuit Protection |
| Current - Peak Pulse (10/1000µs) | 114A |
| Series | Automotive, AEC-Q101 |
| Family | TVS - Diodes |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| ECCN | EAR99 |
