| SBT12M0PC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

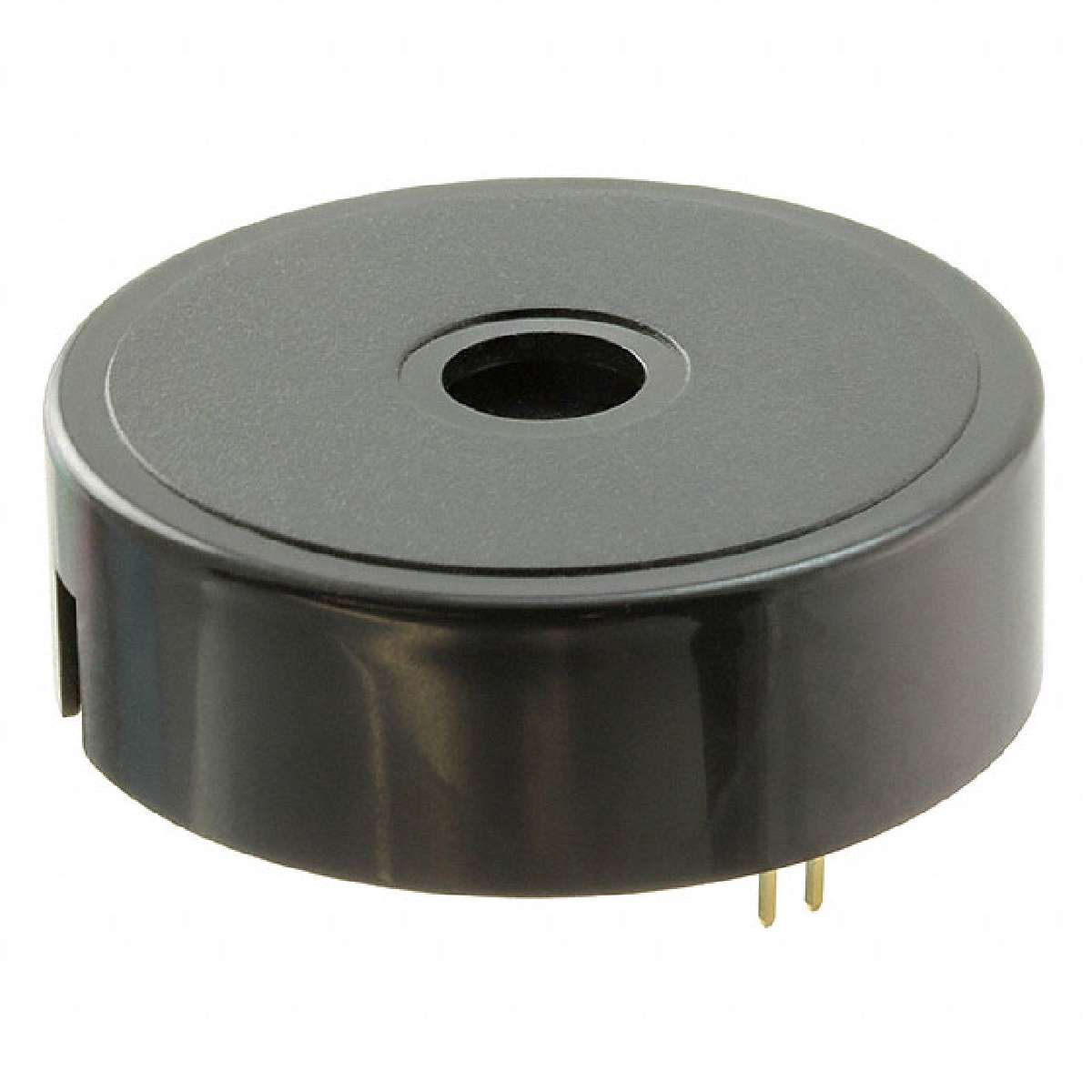

Ø44.5 x 14 mm 12 V 90 dB 4 kHz PC Pin Piezo Medical Alarm
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Transducers |
|---|---|
| Dimensions: | 44.5 mm L x 44.5 mm W x 14 mm H |
| Width: | 44.5 mm |
| Voltage Rating: | 9 V to 12 V |
| Frequency: | 200 Hz |
| Height: | 14 mm |
| Length: | 44.5 mm |
| Shape: | Round |
| Series: | SBT |
| Brand: | Mallory Sonalert |
| Diameter: | 44.5 mm |
| Product Category: | Speakers & Transducers |
| Type: | Piezoelectric |
| Height - mm: | 14 mm |
| Sound Pressure Level: | 90 dBA |
| Packaging: | Bulk |
| Operating Temperature Range: | - 30 C to + 65 C |
| Height - in: | 0.551 in |
| Unit Weight: | 0.599657 oz |
| Manufacturer: | Mallory Sonalert |
| Mounting: | Through Hole |
| Factory Pack Quantity: | 25 |
| RoHS: | Details |
| Termination Style: | Solder Pin |
| Current Rating: | 25 mA |
| ECCN | EAR99 |
