| SBS12M1PC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

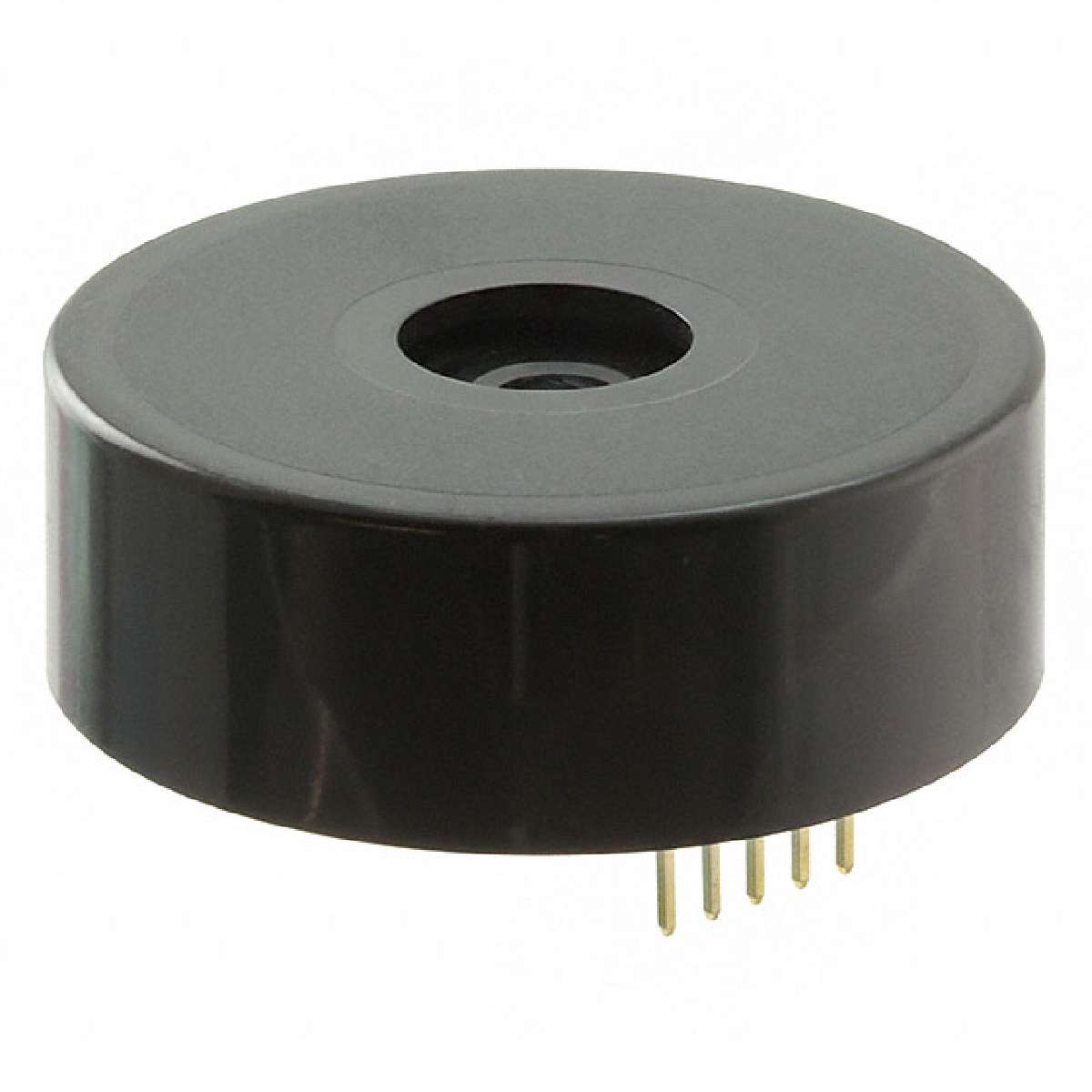

Ø44.5 x 15 mm 12 V 100 dB 4 kHz PC Pin Medical Alarm
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | PC Pins |
|---|---|
| Ratings | Medical |
| Voltage Range | 9 ~ 12V |
| Part Status | Active |
| Manufacturer | Mallory Sonalert Products Inc. |
| Height - Seated (Max) | * |
| Family | Alarms, Buzzers, and Sirens |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C ~ 65°C |
| Technology | Magnetic |
| Driver Circuitry | Indicator, Internally Driven |
| ECCN | EAR99 |
| Sound Pressure Level | 95dB @ 9V, 10cm |
| Approvals | cUL, UL |
| Size / Dimension | 44.50mm Dia |
| Category | Audio Products |
| Port Location | Top |
| Duration | Variable |
| Operating Mode | Pin Selectable |
| Frequency | 2.075kHz |
| Current - Supply | 40 ~ 200mA |
| Packaging | Bulk |
| Input Type | DC |
