| R76QI22204040J | ||
|---|---|---|
|
|
||
|
||

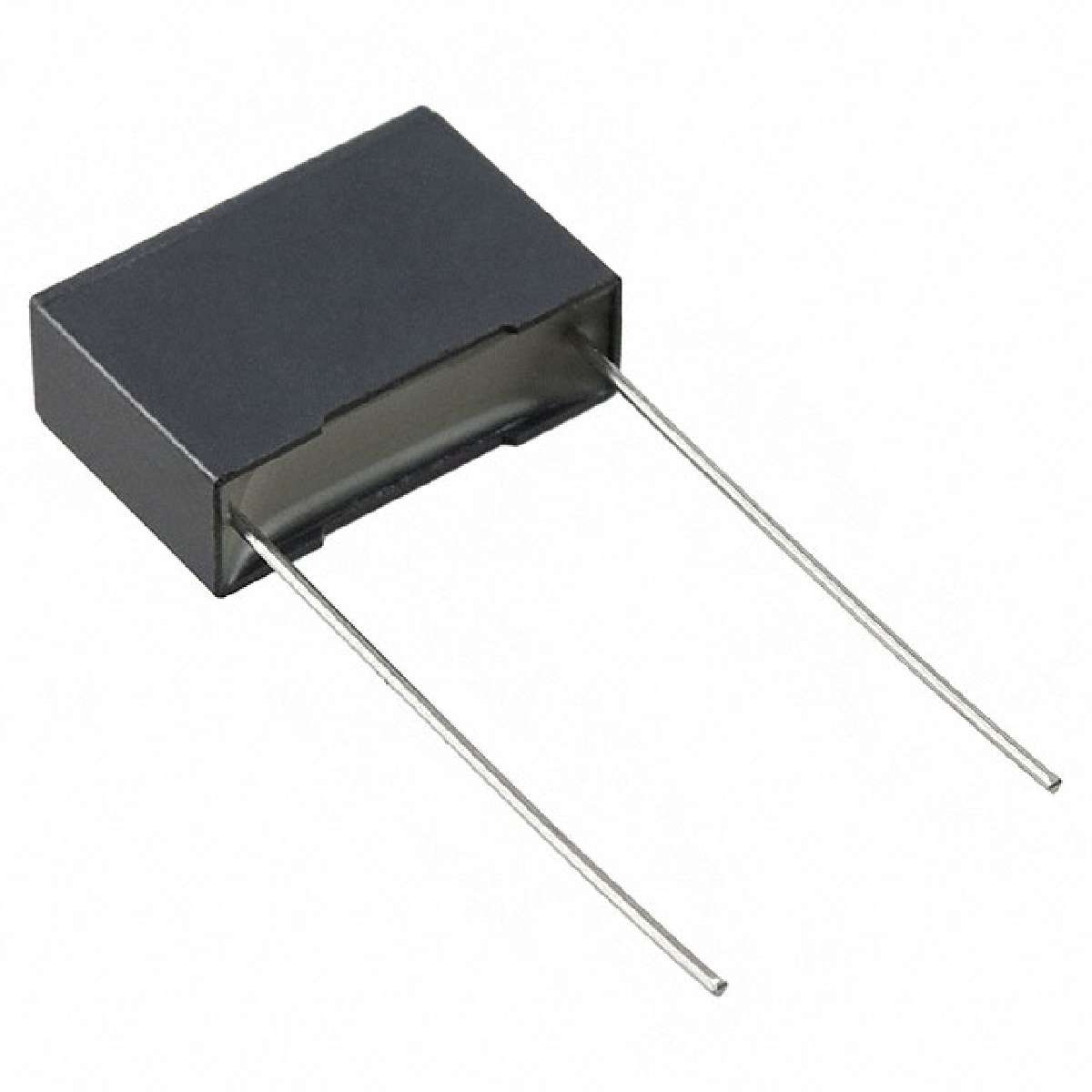

| Product description : Capacitor: polypropylene; 22nF; 15mm; ±5%; 18x6x12mm; -55÷105°C | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | PC Pins |
|---|---|
| Package / Case | Radial |
| Capacitance | 0.022µF |
| Voltage Rating - DC | 1000V (1kV) |
| Size / Dimension | 0.709" L x 0.236" W (18.00mm x 6.00mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.476" (12.10mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Tolerance | ±5% |
| Lead Spacing | 0.591" (15.00mm) |
| Voltage Rating - AC | 600V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Part Status | Active |
| Manufacturer | Kemet |
| Series | R76 |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Operating Temperature | -55°C ~ 105°C |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.61869
￥5.13862
| 10+ | $0.61869 |
|---|---|
| 180+ | $0.60493 |
| 350+ | $0.59214 |
| stock | 250 | Update On 2025-07-16 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/10 | |
| Location | -- | |
| DateCode | -- |
