| R75PD1680Z340J | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

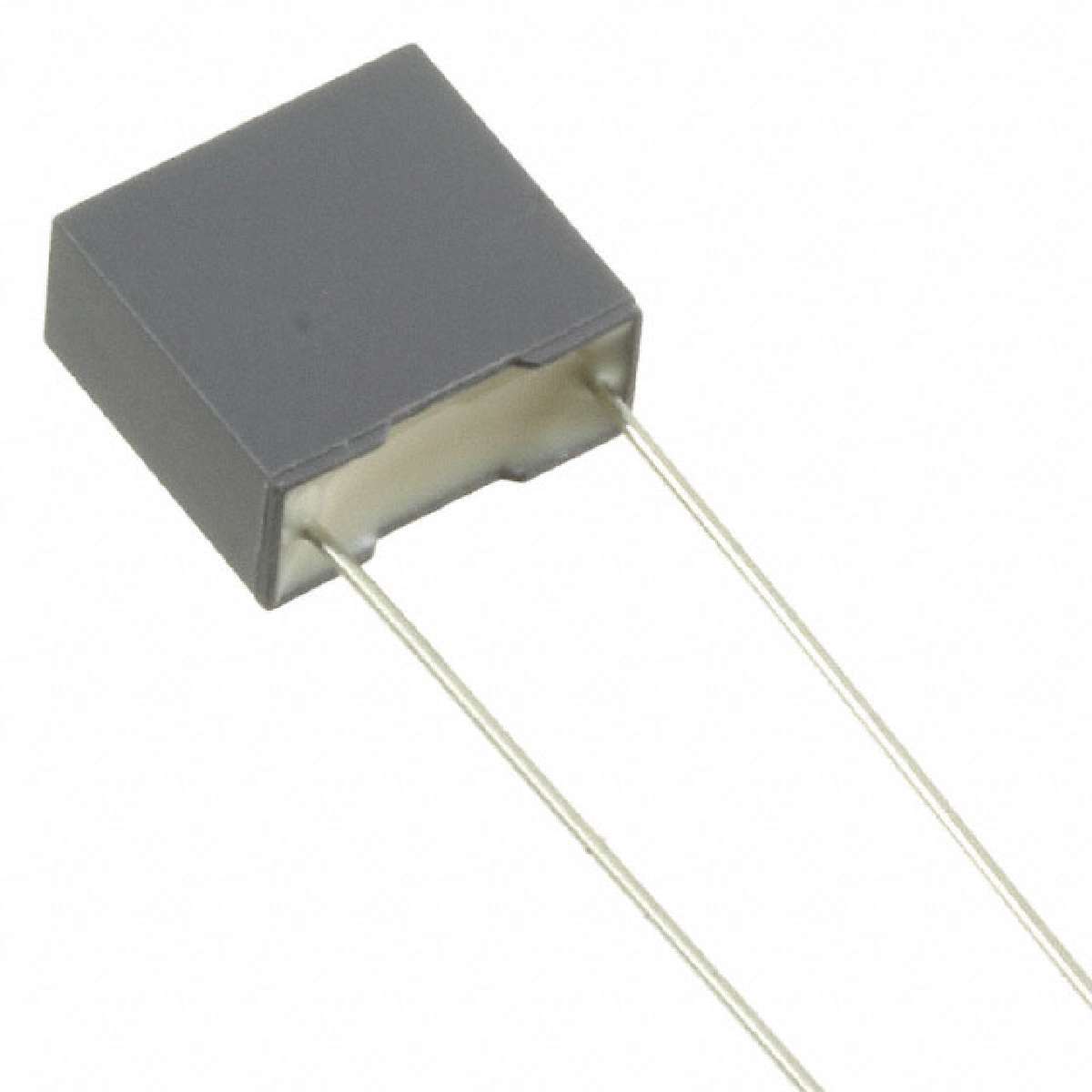

Capacitor: polypropylene; 6.8nF; 7.5mm; ±5%; 10x4x9mm; -55÷105°C
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | PC Pins |
|---|---|
| Package / Case | Radial |
| Capacitance | 6800pF |
| Voltage Rating - DC | 630V |
| Size / Dimension | 0.394" L x 0.157" W (10.00mm x 4.00mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.358" (9.10mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Tolerance | ±5% |
| Lead Spacing | 0.295" (7.50mm) |
| Voltage Rating - AC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Part Status | Active |
| Manufacturer | Kemet |
| Series | R75 |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) |
| Operating Temperature | -55°C ~ 105°C |
