| PK-35H29WQ | ||
|---|---|---|
|
|
||
|
||

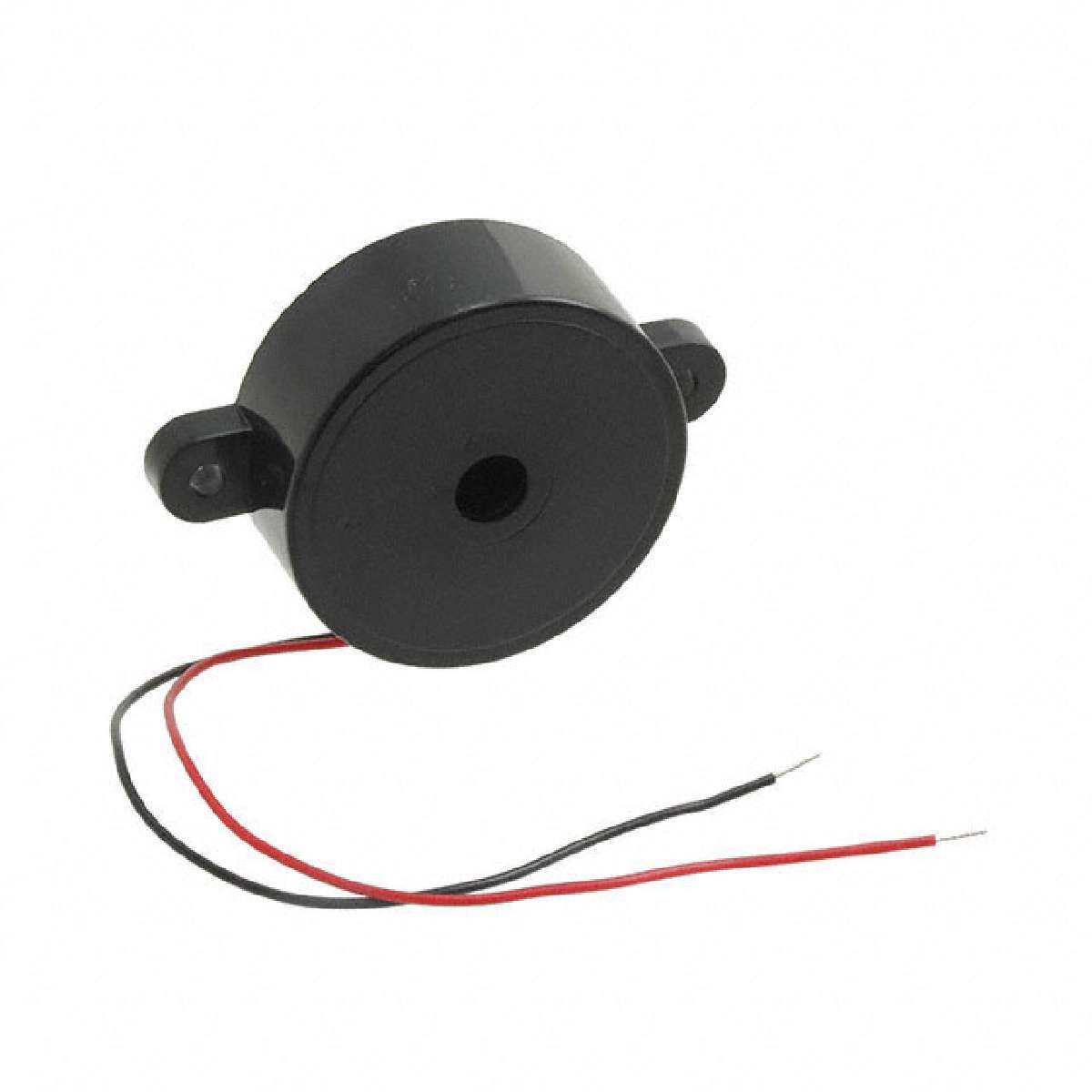

| Product description : 42 x 16.2 mm 3 to 18 VDC 100 dB 2.9 kHz Flange Wire Audio Piezo Indicator | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | Wire Leads |
|---|---|
| Voltage Range | 3 ~ 18V |
| Part Status | Active |
| Manufacturer | Mallory Sonalert Products Inc. |
| Port Location | Top |
| Series | PK |
| Operating Mode | Single Tone |
| Frequency | 2.9kHz |
| Current - Supply | 30mA |
| Packaging | Bulk |
| Input Type | DC |
| Sound Pressure Level | 100dB @ 12V, 30cm |
| Size / Dimension | 42.0mm Dia |
| Category | Audio Products |
| Voltage - Rated | 12V |
| Height - Seated (Max) | * |
| Family | Alarms, Buzzers, and Sirens |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C ~ 70°C |
| Technology | Piezo |
| Driver Circuitry | Indicator, Internally Driven |
| ECCN | EAR99 |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$15.38654
￥127.79518
| stock | 1262 | Update On 2022-12-01 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/4 | |
| Location | -- | |
| DateCode | 2216 |
