| PK-35A29W-24VQ | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

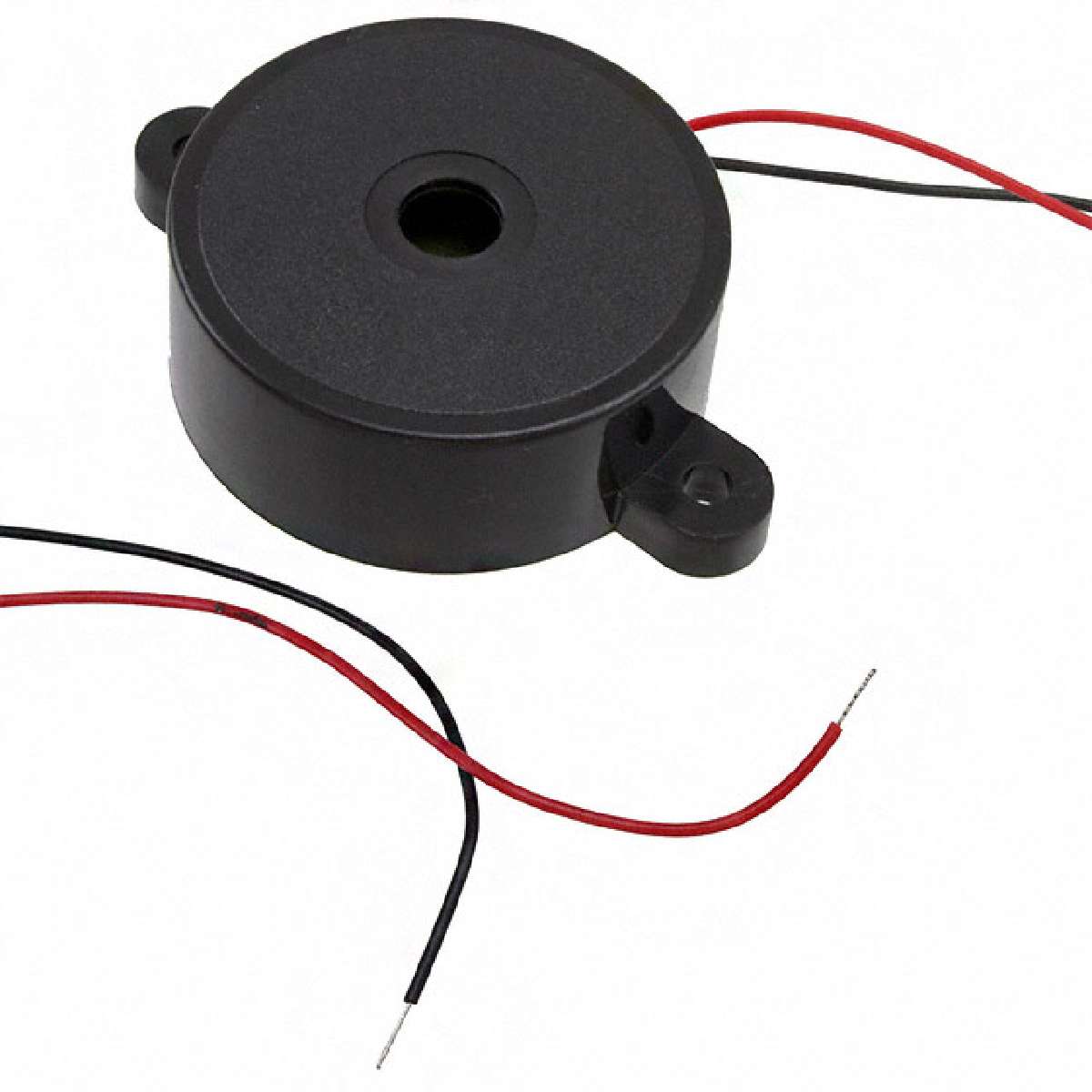

42 x 16 mm 12 to 28 VDC 2.9 kHz 95 dB Flange Wire Audio Piezo Indicator
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Wire Leads |
|---|---|
| Voltage Range | 12 ~ 28V |
| Part Status | Active |
| Manufacturer | Mallory Sonalert Products Inc. |
| Port Location | Top |
| Series | PK |
| Operating Mode | Single Tone |
| Frequency | 2.9kHz |
| Current - Supply | 50mA |
| Packaging | Bulk |
| Input Type | DC |
| Sound Pressure Level | 95dB @ 24V, 30cm |
| Size / Dimension | 42.0mm Dia |
| Category | Audio Products |
| Voltage - Rated | 24V |
| Height - Seated (Max) | * |
| Family | Alarms, Buzzers, and Sirens |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C ~ 70°C |
| Technology | Piezo |
| Driver Circuitry | Indicator, Internally Driven |
| ECCN | EAR99 |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$14.8304
￥123.17607990612981
See more prices
| 8+ | $14.8304 |
|---|---|
| 28+ | $13.80275 |
| 100+ | $11.4452 |
| 252+ | $10.881 |
| 500+ | $9.20855 |
| stock | 100 | Update On 2025-02-11 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/8 | |
| Location | -- | |
| DateCode | 1848 |
