| NDM3Z-90V-A-001 | ||
|---|---|---|
|
|
||
|
||

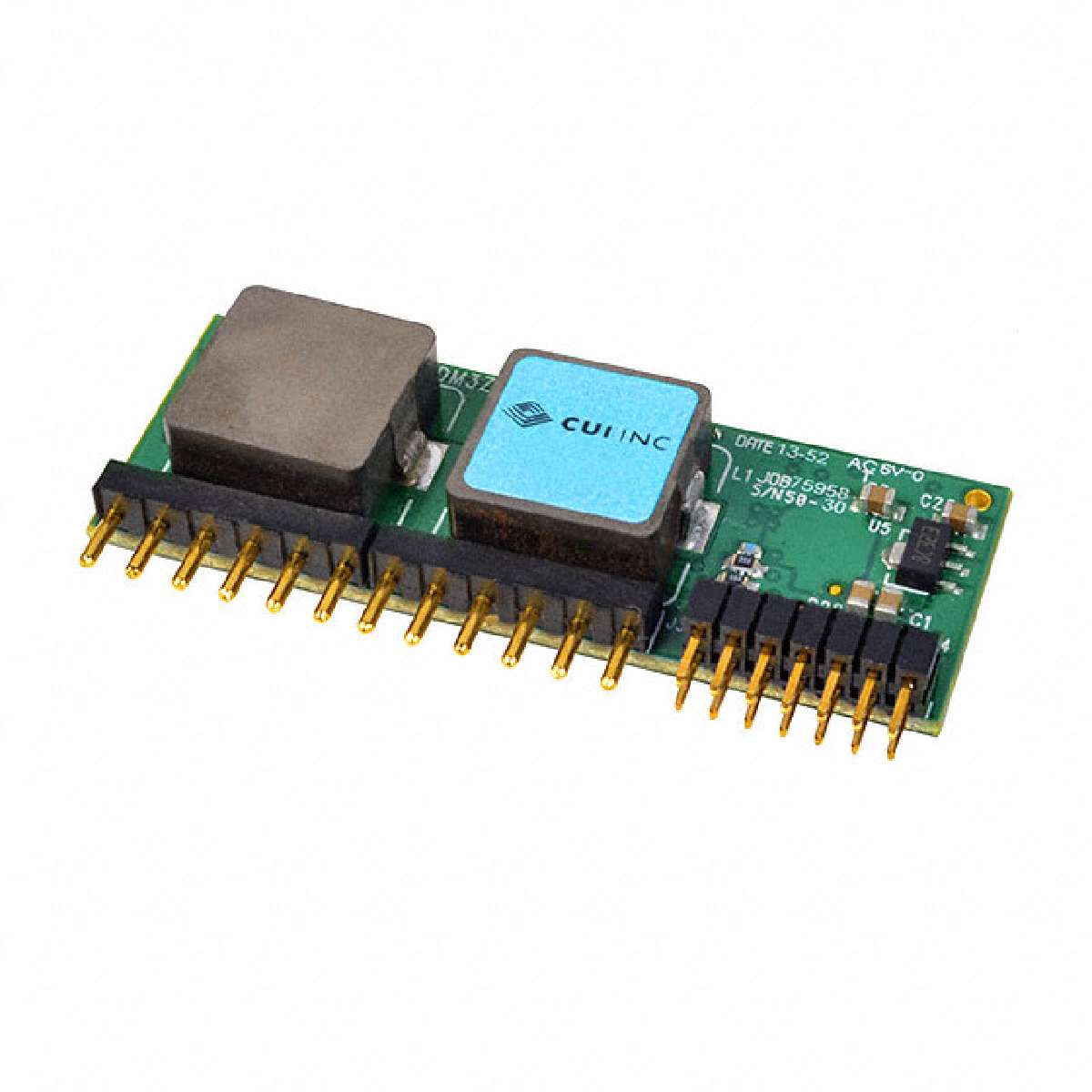

| Product description : NDM3Z-90 Series 14 V 162 W 90 A Auto Compensated Digital DC/DC POL Converter | ||
| SPQ：144 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Number of Outputs | 1 |
|---|---|
| Type | Non-Isolated PoL Module, Digital |
| Features | Digital |
| Part Status | Active |
| Efficiency | 92.5% |
| Voltage - Input (Max) | 14V |
| Series | Novum® NDM3Z-90 |
| Voltage - Input (Min) | 7.5V |
| Mounting Type | Through Hole |
| Packaging | Tray |
| Package / Case | 26-SIP Module |
| Current - Output (Max) | 90A |
| Size / Dimension | 2.00" L x 0.38" W x 0.75" H (50.8mm x 9.7mm x 19.1mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | CUI Inc. |
| Voltage - Output 1 | 0.6 ~ 1.8 V |
| Family | DC DC Converters |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 150°C |
| ECCN | EAR99 |
