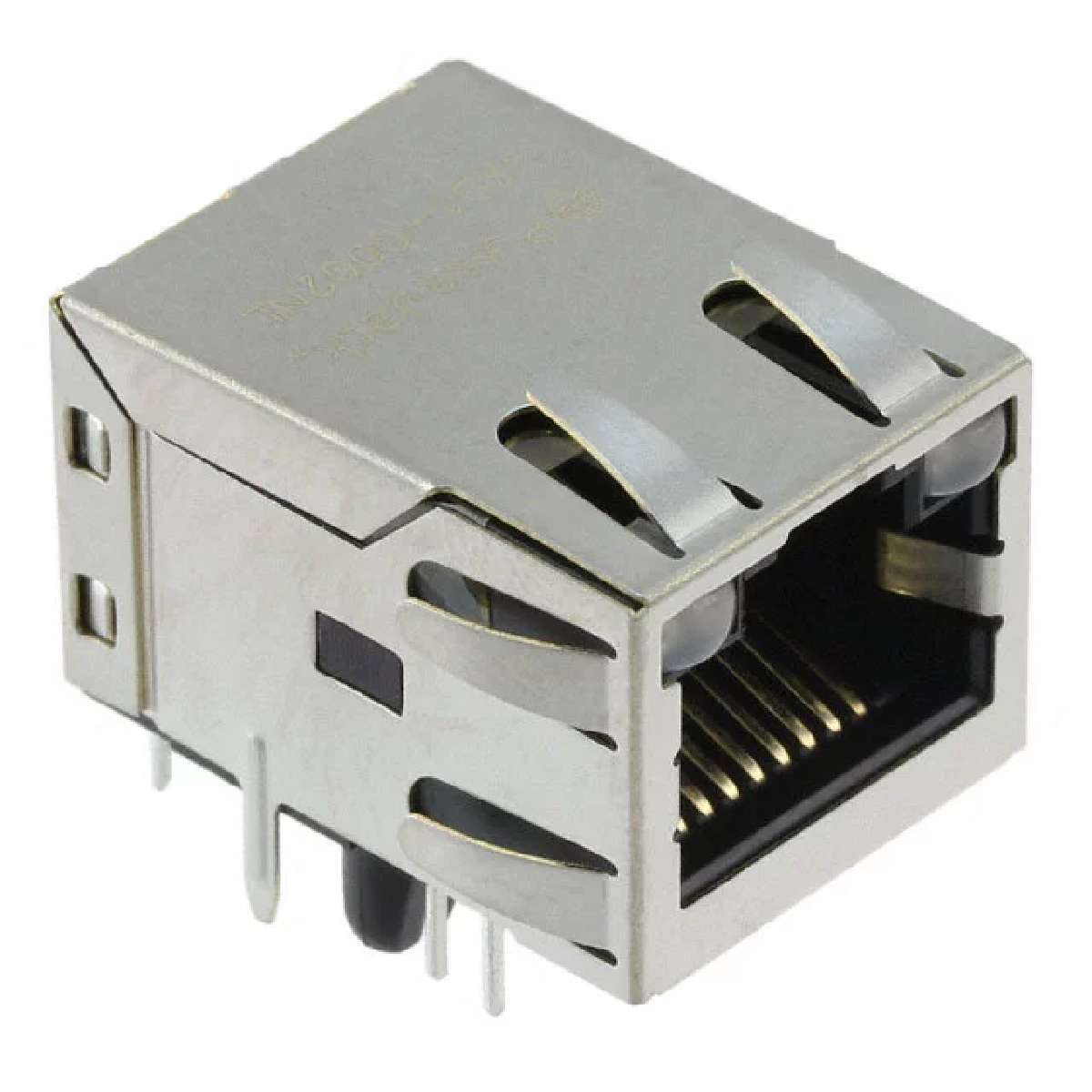

| JXD1-0002NL | ||
|---|---|---|
|
|
||
|
||
| Product description : CONN MAGJACK 1PORT 1000BASE-T | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Finish | Gold |
|---|---|
| Number of Cores per Jack | 8 |
| Housing Material | Thermoplastic |
| Mounting Type | Through Hole |
| Contact Finish Thickness | 30µin (0.76µm) |
| Height Above Board | 0.543" (13.80mm) |
| Number of Ports | 1 |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Contact Material | Phosphor Bronze |
| Family | Modular Connectors - Jacks With Magnetics |
| Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 |
| LED Color | Green, Yellow - Green, Yellow |
| Manufacturer | Pulse Electronics Corporation |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Shielding | Shielded, EMI Finger |
| Packaging | Bulk |
| Termination | Solder |
| Tab Direction | Up |
| Features | Board Guide |
| Category | Connectors, Interconnects |
| Series | PULSEJACK™ JXD1 |
| Shield Material | Brass |
| Connector Type | RJ45 |
