| MEO550-02DA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

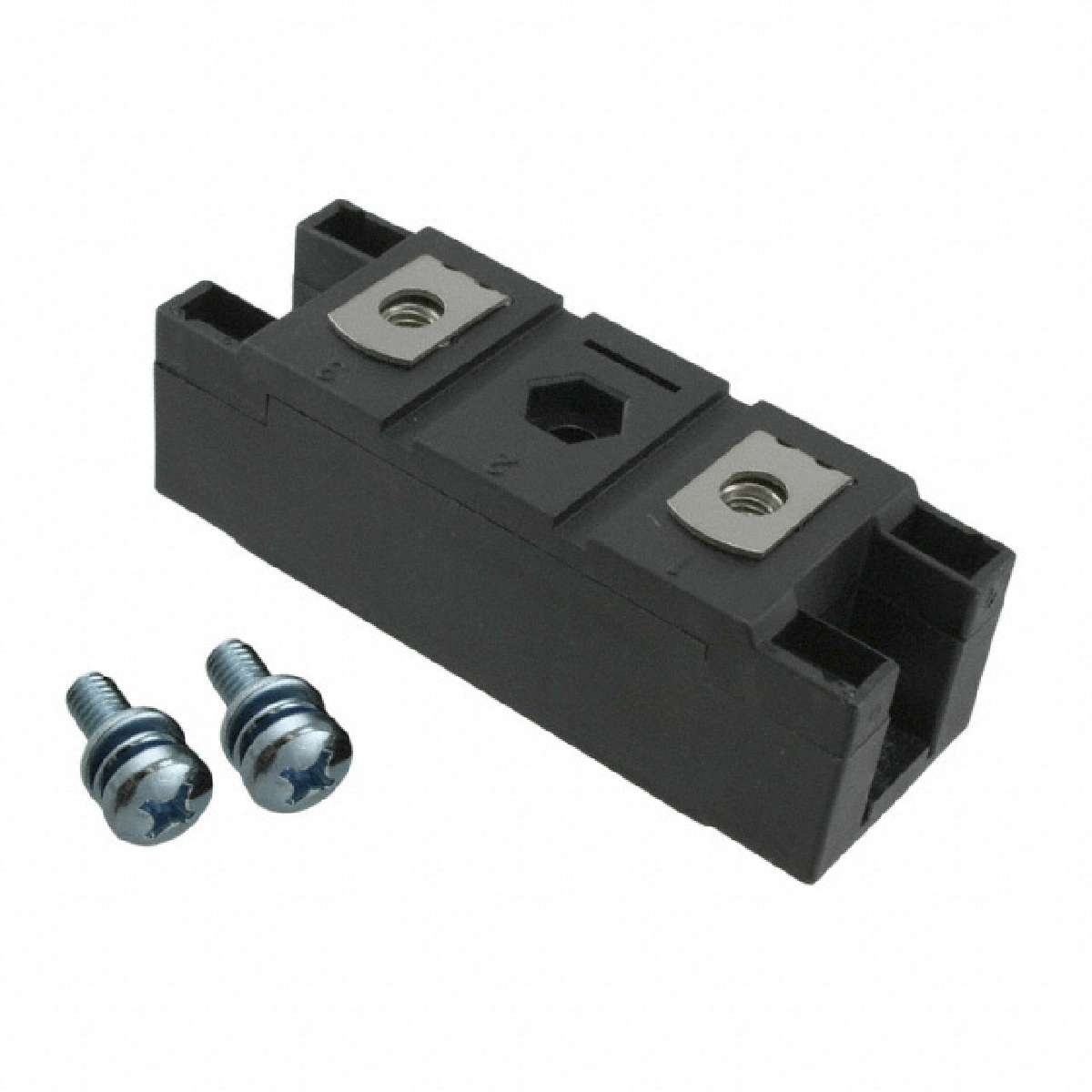

MEO550 Series 200 Vrrm 582 A 1.25 Vf Fast Recovery Epitaxial Diode
|
||
| 标准包装：6 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -40°C ~ 150°C |
|---|---|
| Package / Case | Y4-M6 |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | IXYS |
| Current - Reverse Leakage @ Vr | 5mA @ 200V |
| Mounting Type | Chassis Mount |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 520A |
| ECCN | EAR99 |
| Current - Average Rectified (Io) | 582A |
| Supplier Device Package | Y4-M6 |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 200ns |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Packaging | Bulk |
