| ISP844XSM | ||
|---|---|---|
|
|
||
|
||

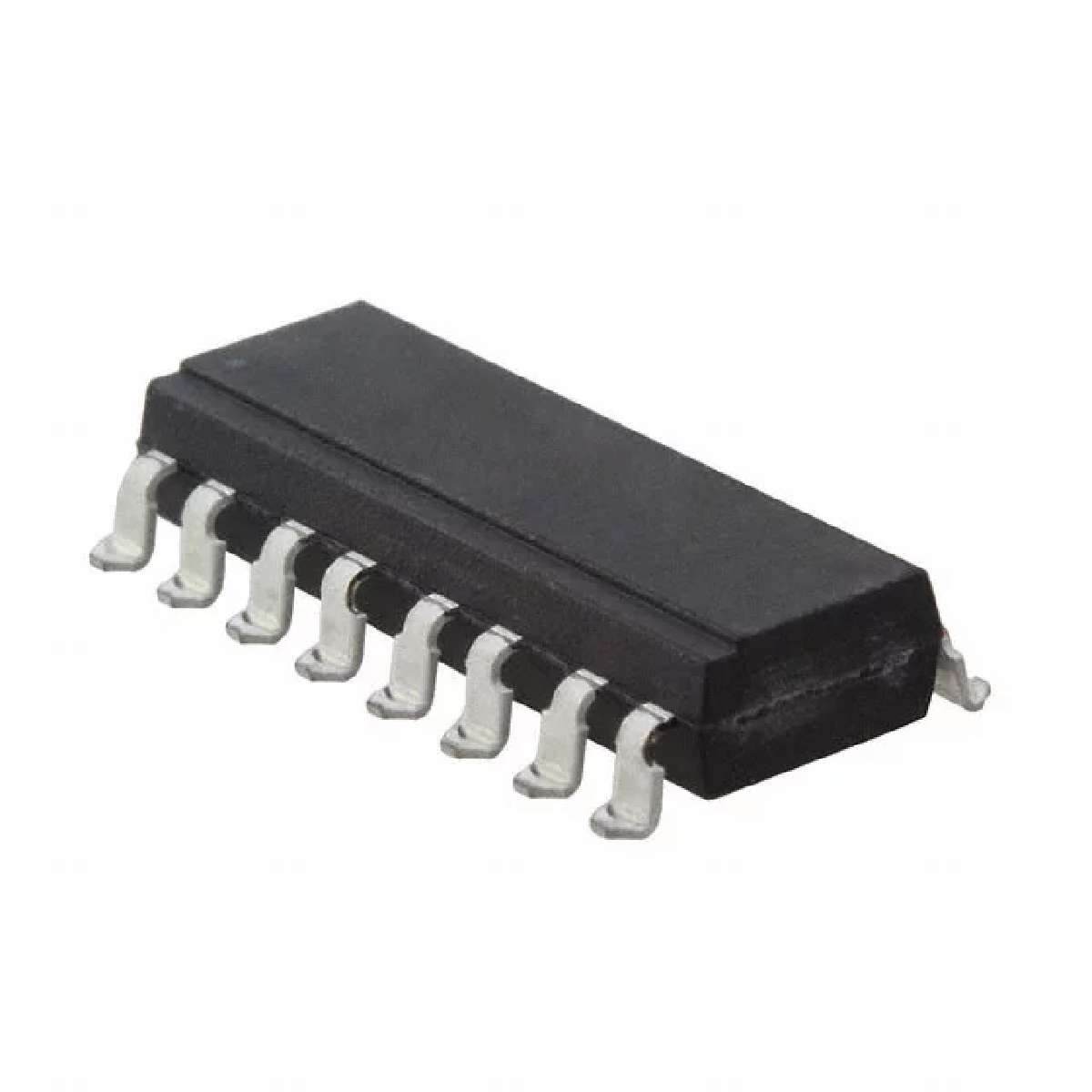

| Product description : Optocoupler; SMD; Channels: 4; OUT: transistor; Uinsul: 5.3kV | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 5300Vrms |
|---|---|
| Current - Output / Channel | 50mA |
| Part Status | Active |
| Manufacturer | Isocom Components 2004 LTD |
| Number of Channels | 4 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current Transfer Ratio (Max) | 300% @ 1mA |
| Family | Optoisolators - Transistor, Photovoltaic Output |
| Vce Saturation (Max) | 200mV |
| Packaging | Tube |
| Package / Case | 16-SMD, Gull Wing |
| Current Transfer Ratio (Min) | 20% @ 1mA |
| Category | Isolators |
| Voltage - Output (Max) | 35V |
| Output Type | Transistor |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Current - DC Forward (If) (Max) | 50mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C ~ 100°C |
| Input Type | AC, DC |
