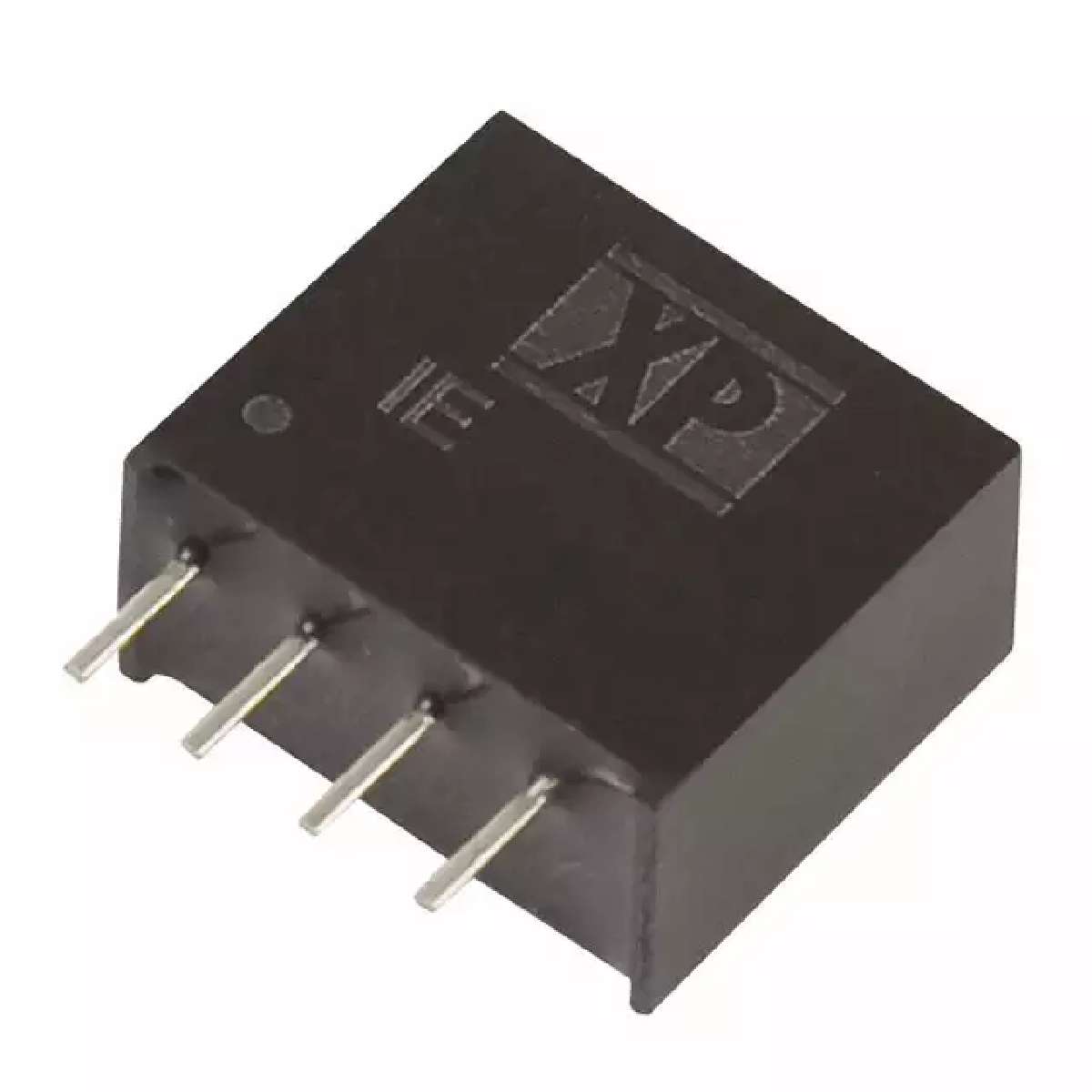

| IE2412S | ||
|---|---|---|
|
|
||
|
||
| Product description : Converter: DC/DC; 1W; Uin: 24V; Uout: 12VDC; Iout: 84mA; SIP; 1.4g | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 1kV (1000V) |
|---|---|
| Package / Case | 4-SIP Module |
| Current - Output (Max) | 84mA |
| Size / Dimension | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | XP Power |
| Voltage - Output 1 | 12V |
| Family | DC DC Converters |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tube |
| Number of Outputs | 1 |
| Type | Isolated Module |
| Power (Watts) - Manufacture Series | 1W |
| Part Status | Active |
| Efficiency | 80% |
| Voltage - Input (Max) | 26.4V |
| Series | IE |
| Voltage - Input (Min) | 21.6V |
| Mounting Type | Through Hole |
| Power (Watts) - Max | 1W |
