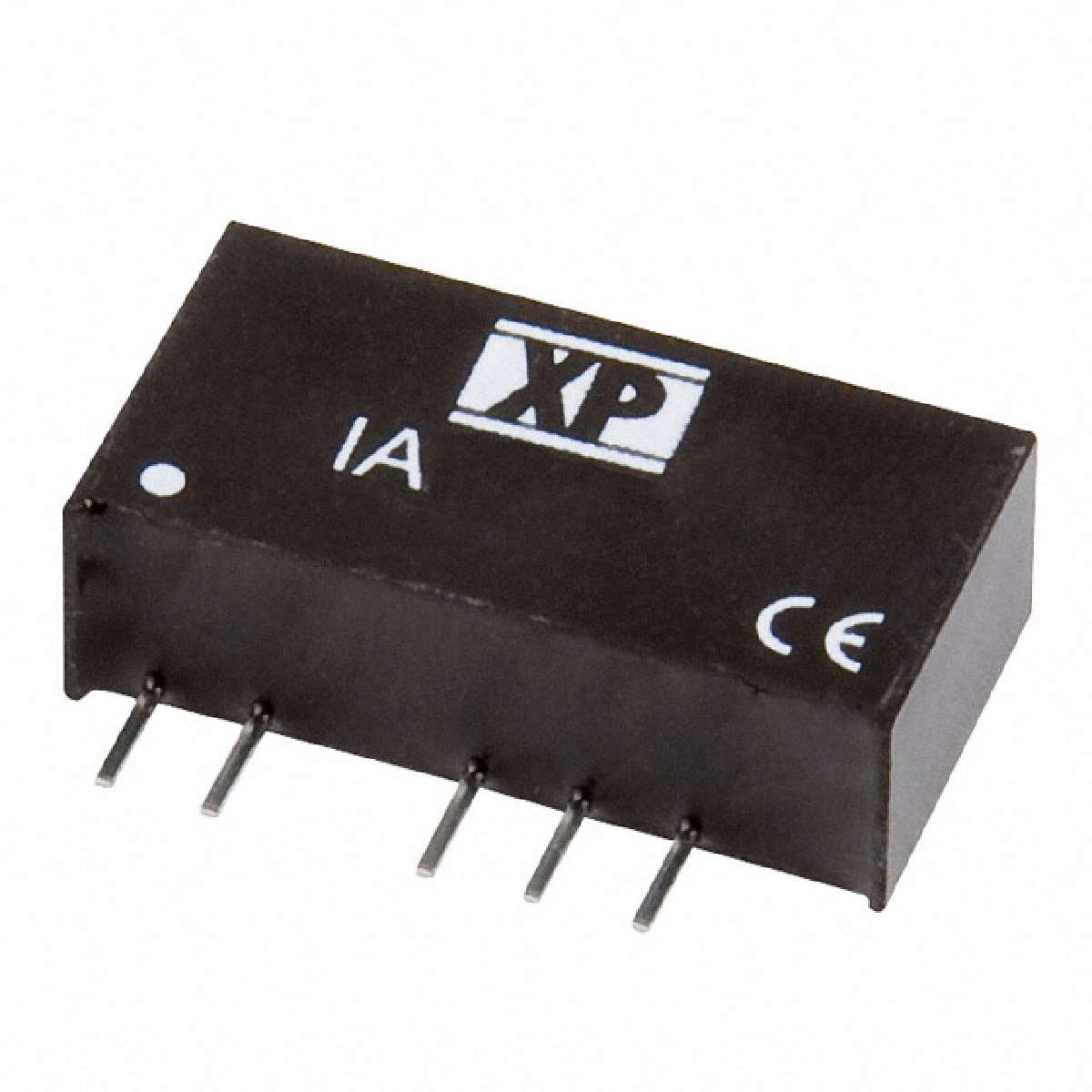

| IA0512S | ||
|---|---|---|
|
|
||
|
||
| Product description : DC/DC Isolated 1kV; 1.0W; Uin:4.5V·5.5V; Uout1: 12VDC; Uout2: -12VDC; Iout:42mA; Eff. 78%; -40°C to 85°C | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 1kV (1000V) |
|---|---|
| Package / Case | 5-SIP Module |
| Current - Output (Max) | 42mA |
| Size / Dimension | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) |
| Category | Power Supplies - Board Mount |
| Manufacturer | XP Power |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Input (Min) | 4.5V |
| Mounting Type | Through Hole |
| Power (Watts) - Max | 1W |
| Number of Outputs | 2 |
| Type | Isolated Module |
| Power (Watts) - Manufacture Series | 1W |
| Part Status | Active |
| Efficiency | 78% |
| Voltage - Input (Max) | 5.5V |
| Series | IA |
| Family | DC DC Converters |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tube |
