| GWE32DHRN-T9410 | ||
|---|---|---|
|
|
||
|
||

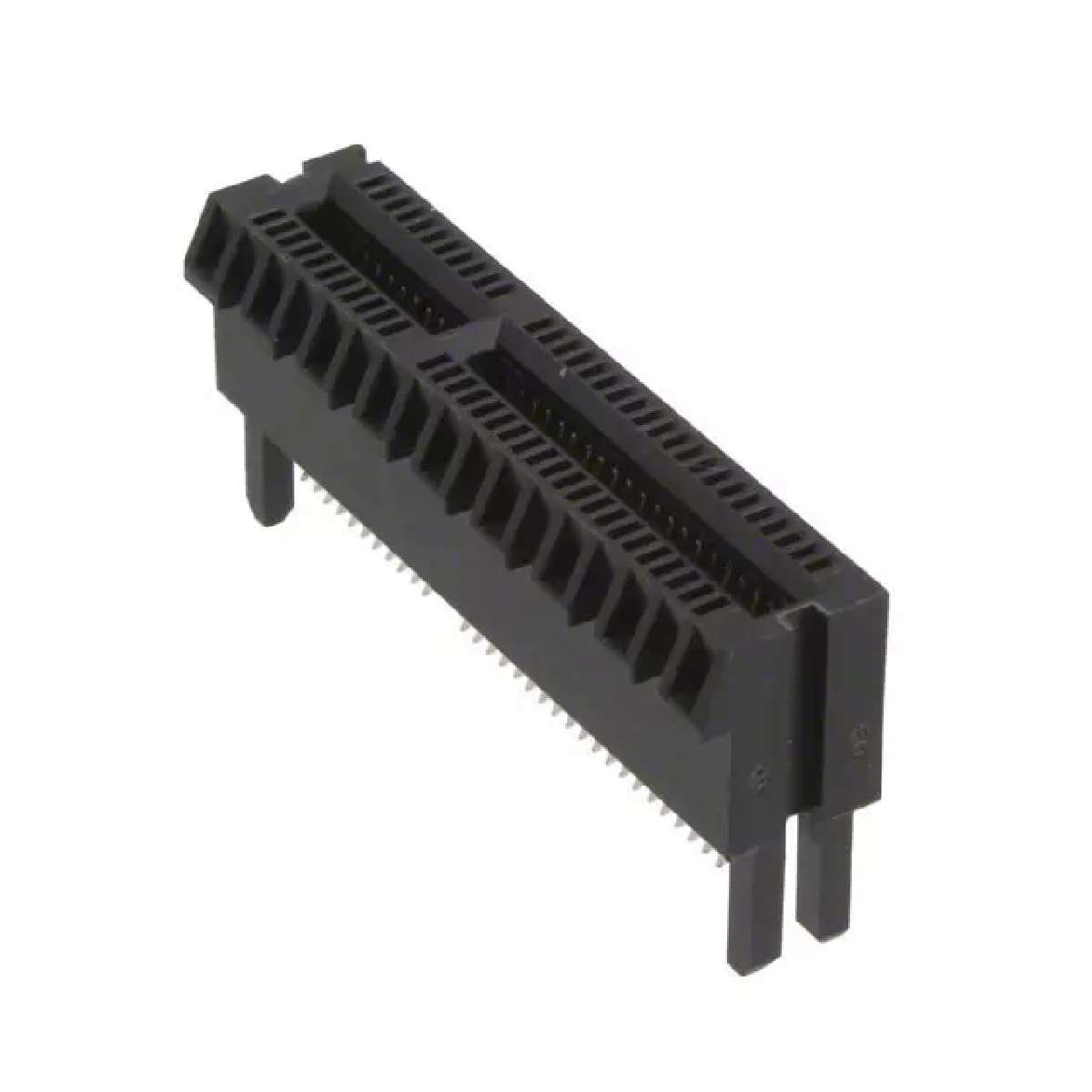

| Product description : CONN PCI EXPRESS 64POS VERT PCB | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | Solder |
|---|---|
| Card Thickness | 0.062" (1.57mm) |
| Contact Type | Cantilever |
| Features | Cap, Card Extender, Locking Ramp |
| Manufacturer | Sullins Connector Solutions |
| Contact Material | Phosphor Bronze |
| Read Out | Dual |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Operating Temperature | -10°C ~ 85°C |
| Contact Finish Thickness | Flash |
| Pitch | 0.039" (1.00mm) |
| Number of Rows | 2 |
| Material - Insulation | Polyamide (PA9T), Nylon 9T |
| Contact Finish | Gold |
| Color | Black |
| Part Status | Active |
| Category | Connectors, Interconnects |
| Gender | Female |
| Number of Positions | 64 |
| Mounting Type | Board Edge, Straddle Mount |
| Card Type | PCI Express™ |
| Number of Positions/Bay/Row | 11; 21 |
| Packaging | Tray |
| ECCN | EAR99 |
