| MDBE09SE860 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

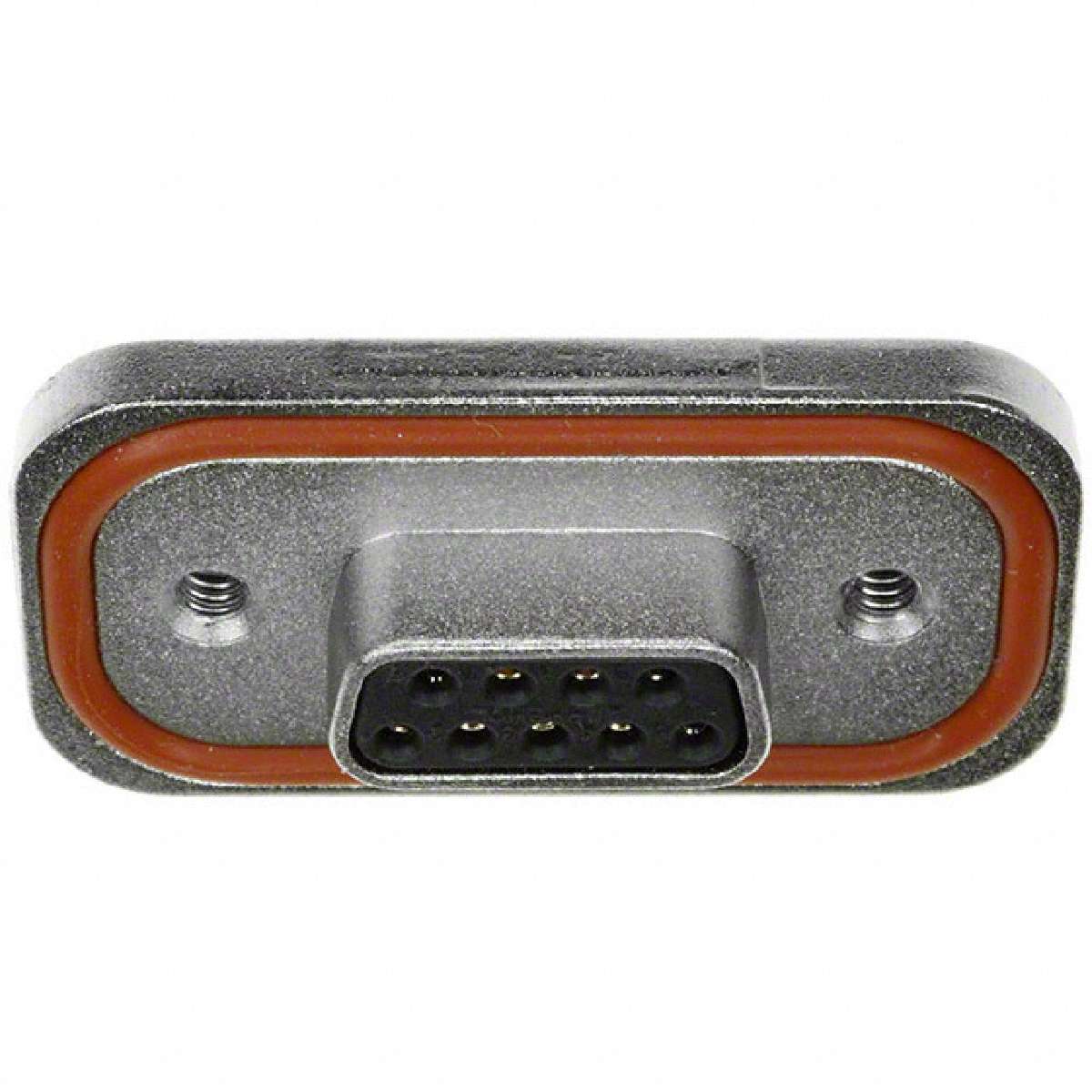

9 Position Dual Row Female Vertical Through Hole Metal D-Sub Connector
|
||
| 标准包装：48 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Insert Arrangement: | E09 |
|---|---|
| Shell Material: | Zinc Alloy |
| Manufacturer: | Amphenol |
| Series: | MDB |
| Shell Plating: | Nickel |
| Part # Aliases: | 01N5206 |
| RoHS: | Details |
| Termination Style: | Through Hole |
| Gender: | Female |
| Number of Rows: | 2 Row |
| Contact Gender: | Socket (Female) |
| Insulation Material: | Thermoplastic |
| ECCN | EAR99 |
| Mounting Angle: | Straight |
| Shell Size: | 1 (E) |
| Voltage Rating: | 200 VDC / 125 VAC |
| Operating Temperature Range: | - 40 C to + 105 C |
| Factory Pack Quantity: | 48 |
| Brand: | Amphenol Commercial Products |
| Number of Positions: | 9 Position |
| Contact Material: | Copper Alloy |
| Product Category: | D-Sub Standard Connectors |
| Current Rating: | 5 A |
| Contact Plating: | Gold |
| Type: | Receptacle |
| 数据手册： |
|---|
