| FX30B-2P-7.62DSA30 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

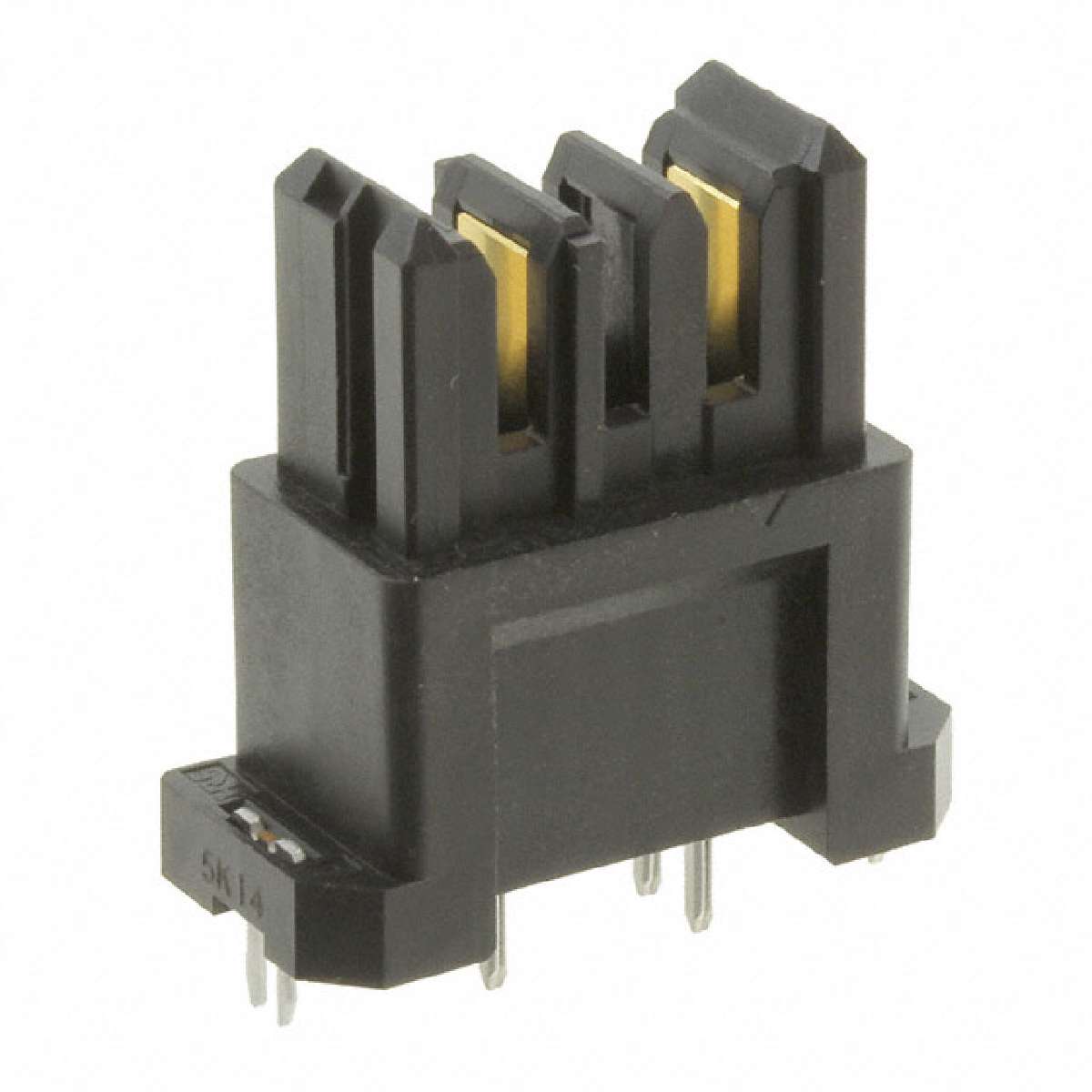

2 Position 7.62mm Straight 30mm Header Mezzanine Connectors
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Headers |
|---|---|
| Packaging: | Tray |
| Manufacturer: | Hirose Electric |
| Series: | FX30B |
| Part # Aliases: | 5703304300 |
| Stack Height: | 30 mm |
| RoHS: | Details |
| Number of Positions: | 2 Position |
| Contact Material: | Copper Alloy |
| Flammability Rating: | UL 94 V-0 |
| Number of Rows: | 1 Row |
| Insulation Resistance: | 1 GOhms |
| Mounting Angle: | Straight |
| Housing Material: | Polyamide (PA) |
| Voltage Rating: | 600 VAC/DC |
| Operating Temperature Range: | - 55 C to + 105 C |
| Brand: | Hirose Connector |
| Tradename: | FunctionMax |
| Pitch: | 7.62 mm |
| Termination Style: | Through Hole |
| Product Category: | Board to Board & Mezzanine Connectors |
| Current Rating: | 18 A |
| Contact Plating: | Gold |
| ECCN | EAR99 |
