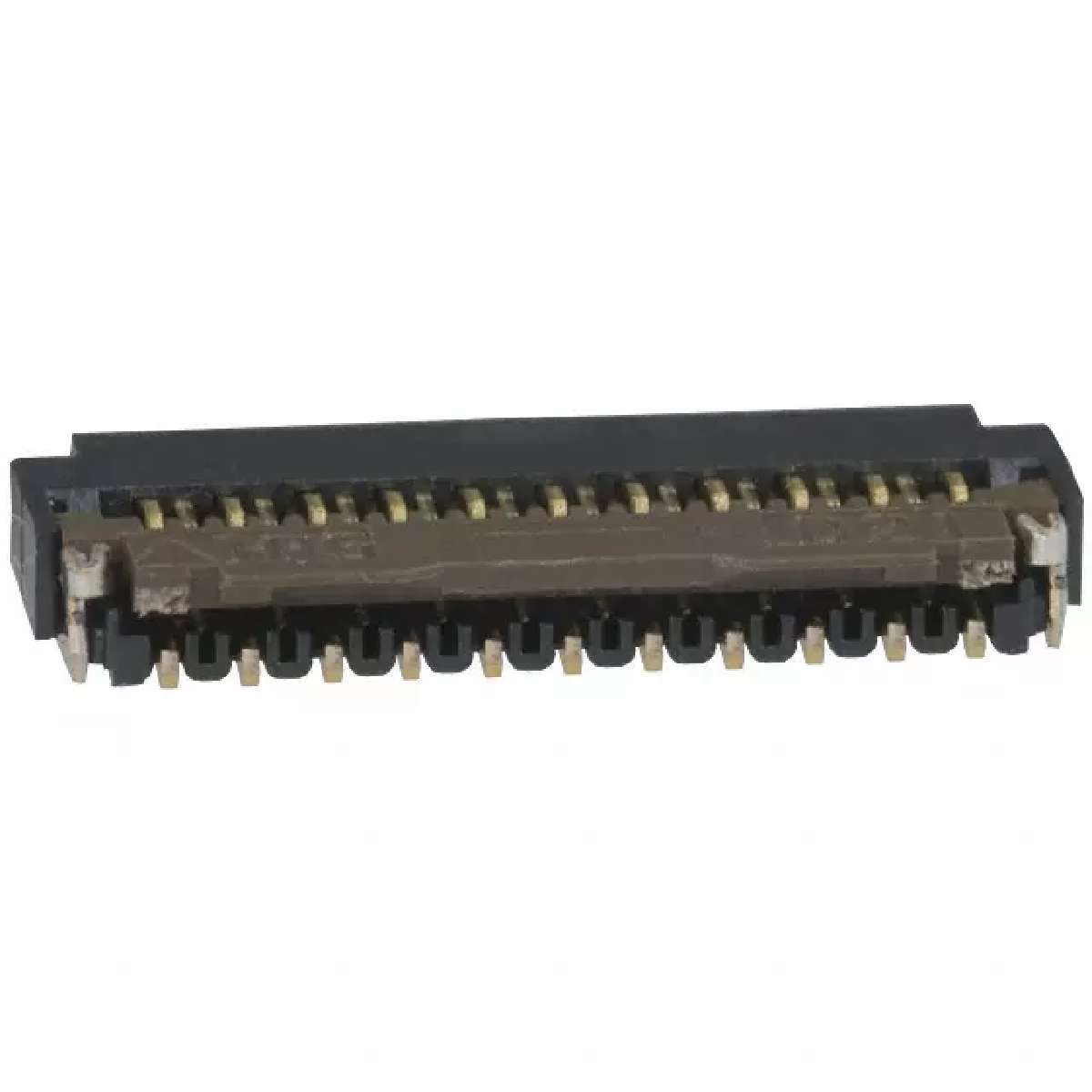

| FH26W-21S-0.3SHW(60) | ||
|---|---|---|
|
|
||
|
||
| Product description : Connector FPC/FFC 21POS .3MM | ||
| SPQ：5000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Height Above Board | 0.039" (1.00mm) |
|---|---|
| Voltage Rating | 30V |
| Cable End Type | Tapered |
| Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.20mm |
| Category | Connectors, Interconnects |
| Contact Material | Phosphor Bronze |
| Number of Positions | 21 |
| Mounting Type | Surface Mount, Right Angle |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 HB |
| Packaging | Tape & Reel (TR) |
| Current Rating | 0.2A |
| Termination | Solder |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Part Status | Active |
| Manufacturer | Hirose Electric Co Ltd |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Series | FH26 |
| Family | FFC, FPC (Flat Flexible) Connectors |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Pitch | 0.012" (0.30mm) |
| Actuator Material | Polyamide (PA), Nylon |
| ECCN | EAR99 |
