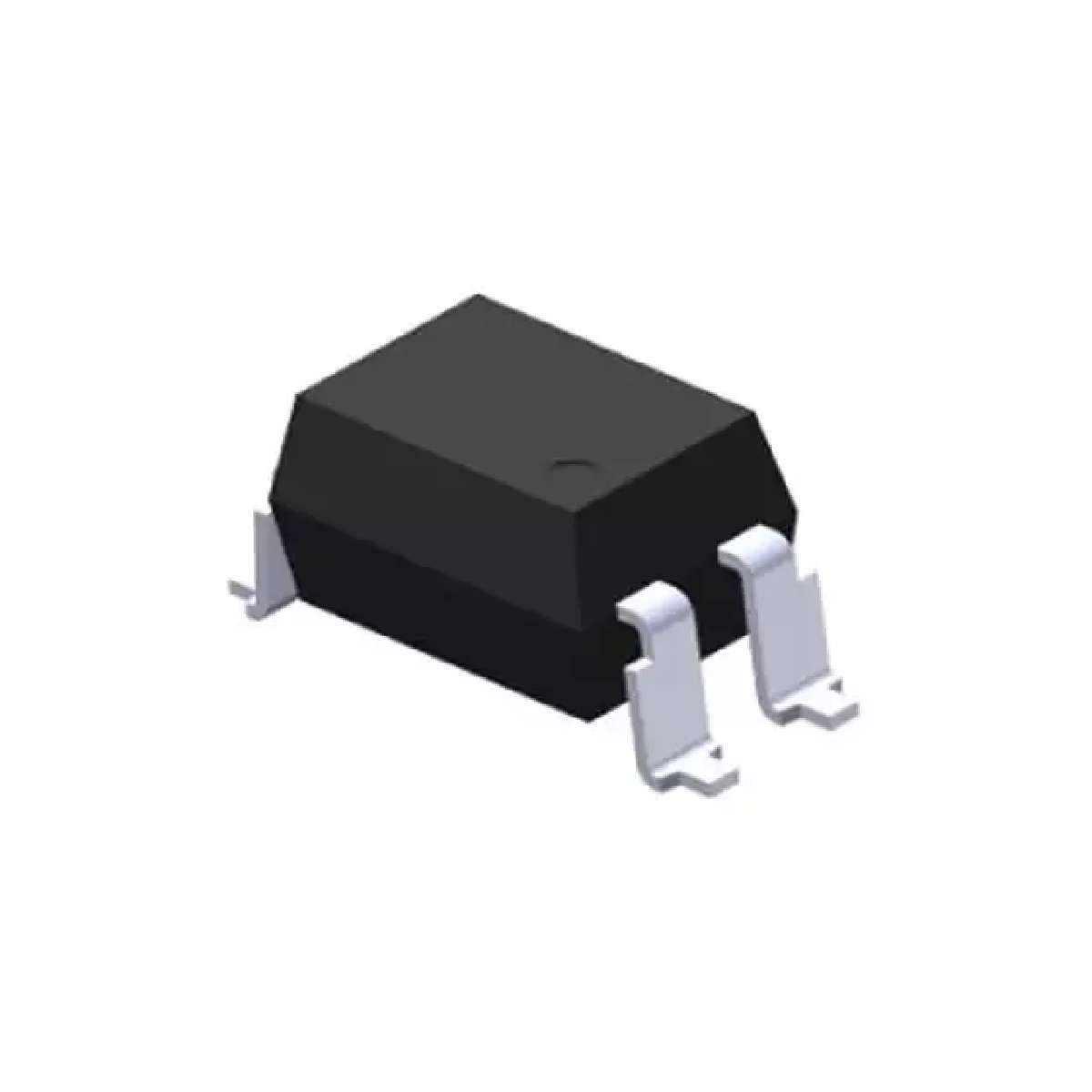

| EL817S1(A)(TU)-V | ||
|---|---|---|
|
|
||
|
||
| Product description : OPTOISOLTR 5KV TRANSISTOR 4-SMD | ||
| SPQ：1500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 5000Vrms |
|---|---|
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Category | Isolators |
| Voltage - Output (Max) | 35V |
| Output Type | Transistor |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Current - DC Forward (If) (Max) | 60mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 110°C |
| Input Type | DC |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Part Status | Discontinued |
| Manufacturer | Everlight Electronics Co Ltd |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current Transfer Ratio (Max) | 160% @ 5mA |
| Family | Optoisolators - Transistor, Photovoltaic Output |
| Vce Saturation (Max) | 200mV |
| Packaging | Tape & Reel (TR) |
