| BXRH-30G3000-D-23 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

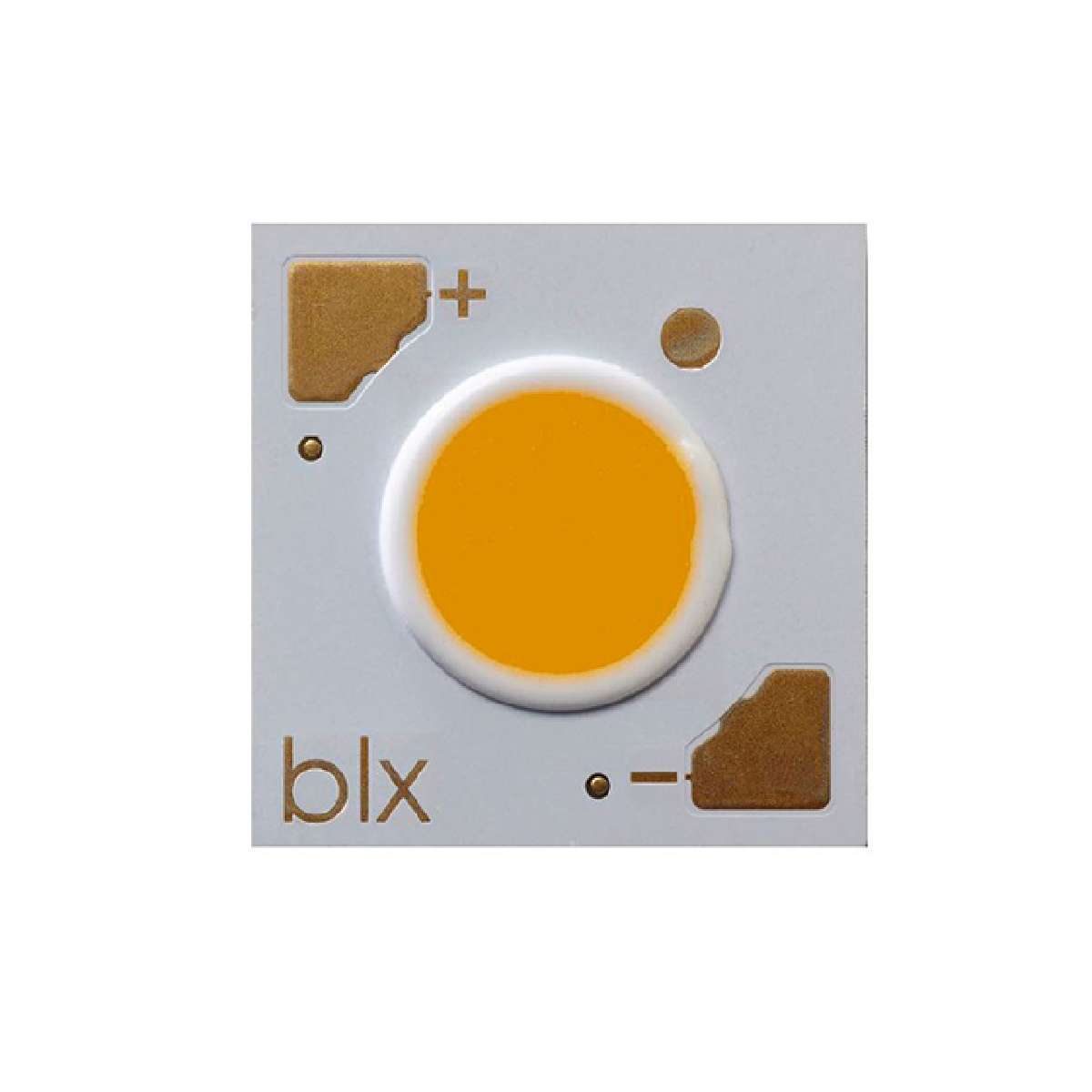

H9 Series 3000K 90 CRI min 2675 lm 36.6 V 3 SDCM Warm White LED Array
|
||
| 标准包装：300 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 90 |
|---|---|
| Viewing Angle | 112° |
| Height | 1.60mm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Light Emitting Surface (LES) | 9.30mm Diameter |
| Manufacturer | Bridgelux |
| Voltage - Forward (Vf) (Typ) | 35.1V |
| Series | H Series |
| Family | LED Lighting - COBs, Engines, Modules |
| Lumens/Watt @ Current - Test | 65 lm/W |
| ECCN | EAR99 |
| Lens Type | Flat |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Color | White, Warm |
| Part Status | Active |
| Temperature - Test | 85°C |
| Category | Optoelectronics |
| Current - Test | 1A |
| Current - Max | 1.4A |
| Flux @ Current/Temperature - Test | 2293 lm (Typ) |
| Packaging | Tube |
