| MC25100V1-000U-A99 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

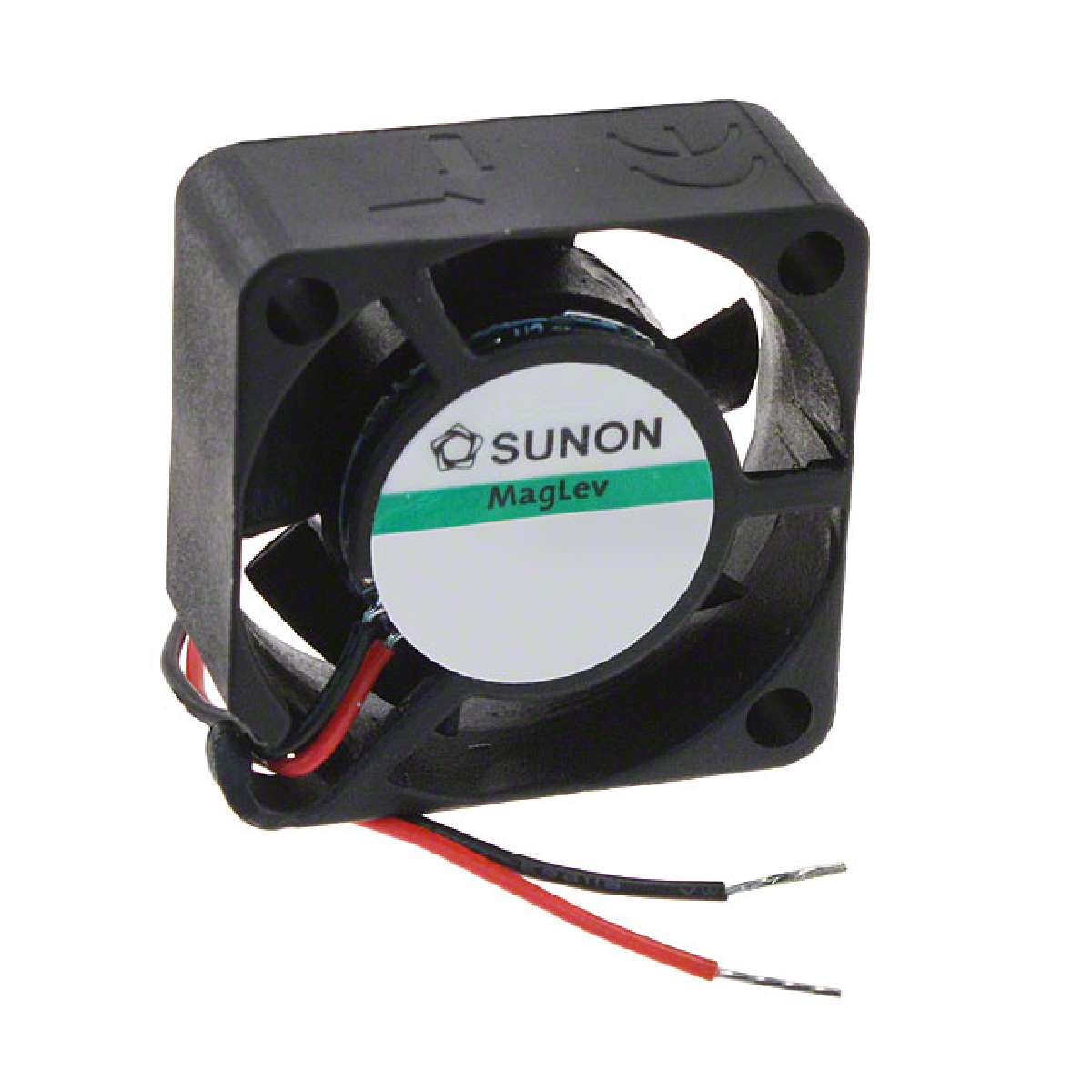

MC Series 13000 RPM 25 x 25 x 10 mm 3.5 CFM 5 VDC Vapo Bearing Maglev Motor Fan
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Features | AutoRestart |
| Size / Dimension | Square - 25mm L x 25mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Weight | 0.017 lb (7.71g) |
| Series | DR MagLev® |
| Power (Watts) | 0.60W |
| RPM | 13000 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
| Static Pressure | 0.250 in H2O (62.3 Pa) |
| Approvals | CE, CUR, TUV, UL |
| Voltage Range | 2.5 ~ 6VDC |
| Part Status | Active |
| Manufacturer | Sunon Fans |
| Air Flow | 3.5 CFM (0.099m³/min) |
| Voltage - Rated | 5VDC |
| Noise | 23 dB(A) |
| Family | DC Fans |
| Width | 10.00mm |
| Bearing Type | Vapo-Bearing™ |
| Current Rating | 0.120A |
