| APHBM2012LQBDSURKC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

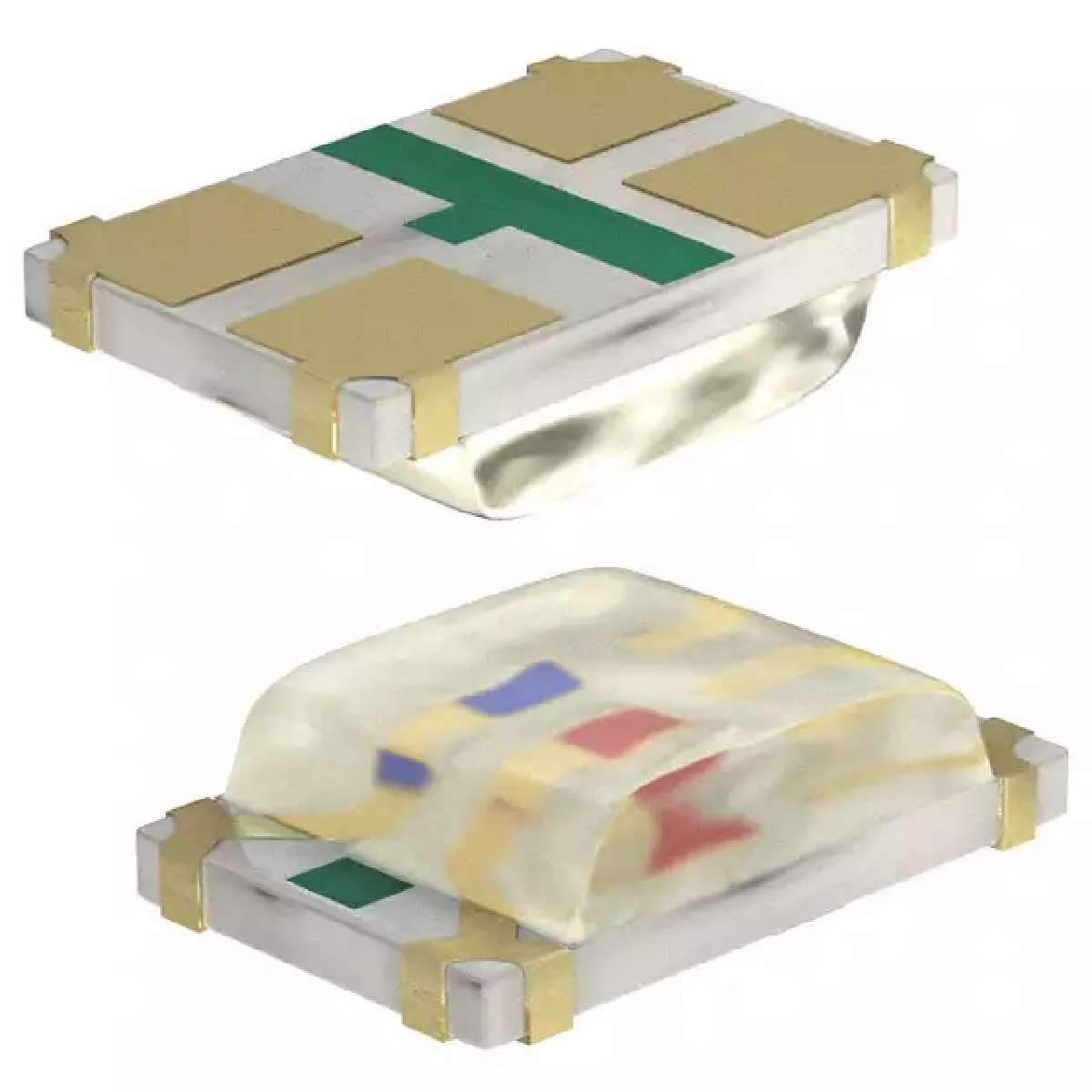

Blue/Red 2x1.25x0.45mm 120° Clear 12/10 mcd 2.7/1.8 V SMT Chip LED Lamp - SMD-4
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 4-SMD, No Lead |
|---|---|
| Supplier Device Package | 4-SMD |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.20mm x 1.25mm |
| Wavelength - Dominant | 465nm Blue, 630nm Red |
| Current - Test | 2mA Blue, 2mA Red |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 12mcd Blue, 10mcd Red |
| ECCN | EAR99 |
| Viewing Angle | 120° |
| Color | Blue, Red |
| Part Status | Active |
| Manufacturer | Kingbright |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.7V Blue, 1.8V Red |
| Wavelength - Peak | 460nm Blue, 645nm Red |
| Height (Max) | 0.45mm |
| Lens Transparency | Clear |
| Packaging | Tape & Reel (TR) |
