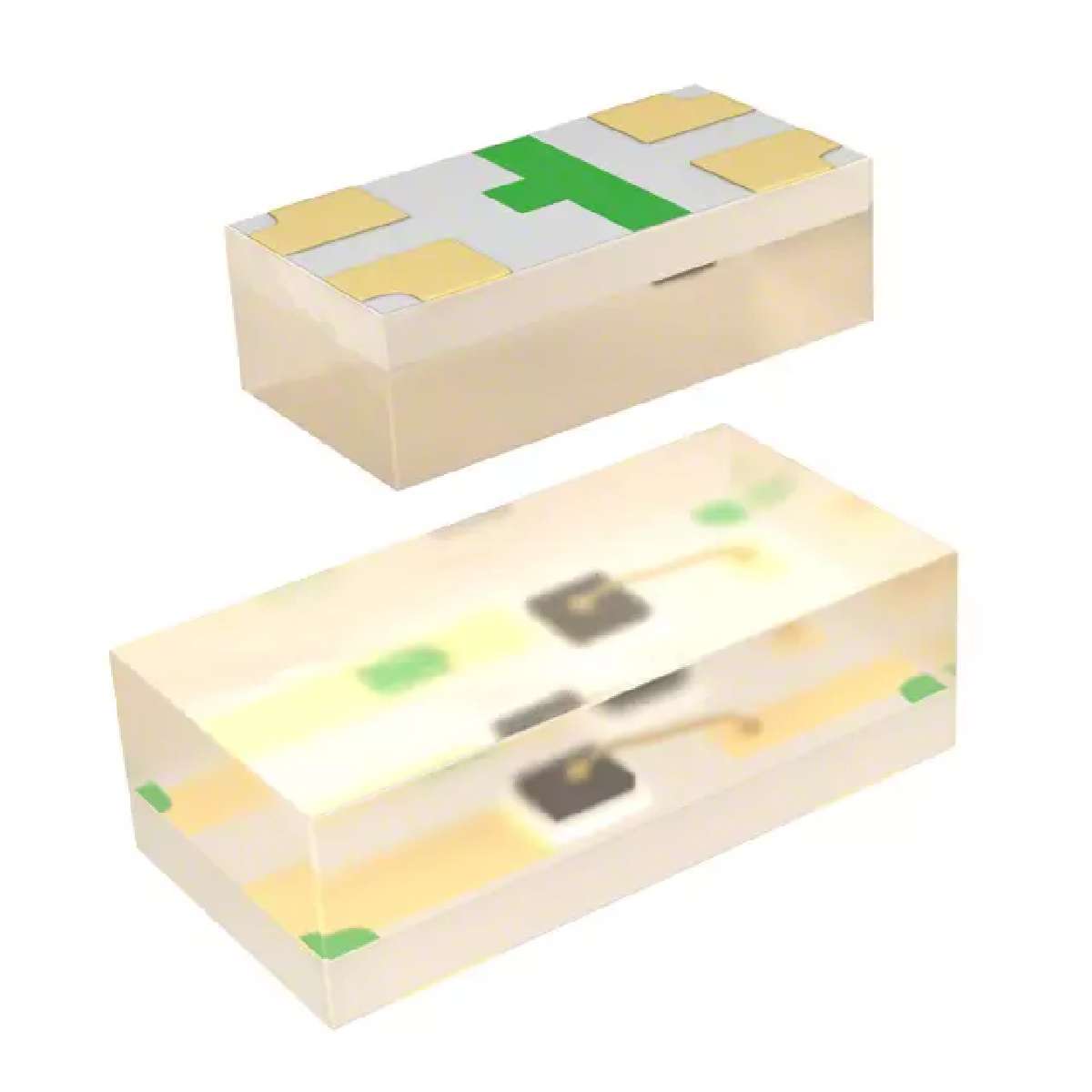

| APHB1608LCGKSURKC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
KBR LED
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 0603 (1608 Metric) |
|---|---|
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.60mm x 0.80mm |
| Wavelength - Dominant | 570nm Green, 630nm Red |
| Current - Test | 2mA Green, 2mA Red |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 3mcd Green, 8mcd Red |
| ECCN | EAR99 |
| Viewing Angle | 130° |
| Color | Green, Red |
| Part Status | Active |
| Manufacturer | Kingbright |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 1.9V Green, 1.8V Red |
| Wavelength - Peak | 574nm Green, 645nm Red |
| Height (Max) | 0.65mm |
| Lens Transparency | Clear |
| Packaging | Tape & Reel (TR) |
