| MB2011SB1W01-4C-A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

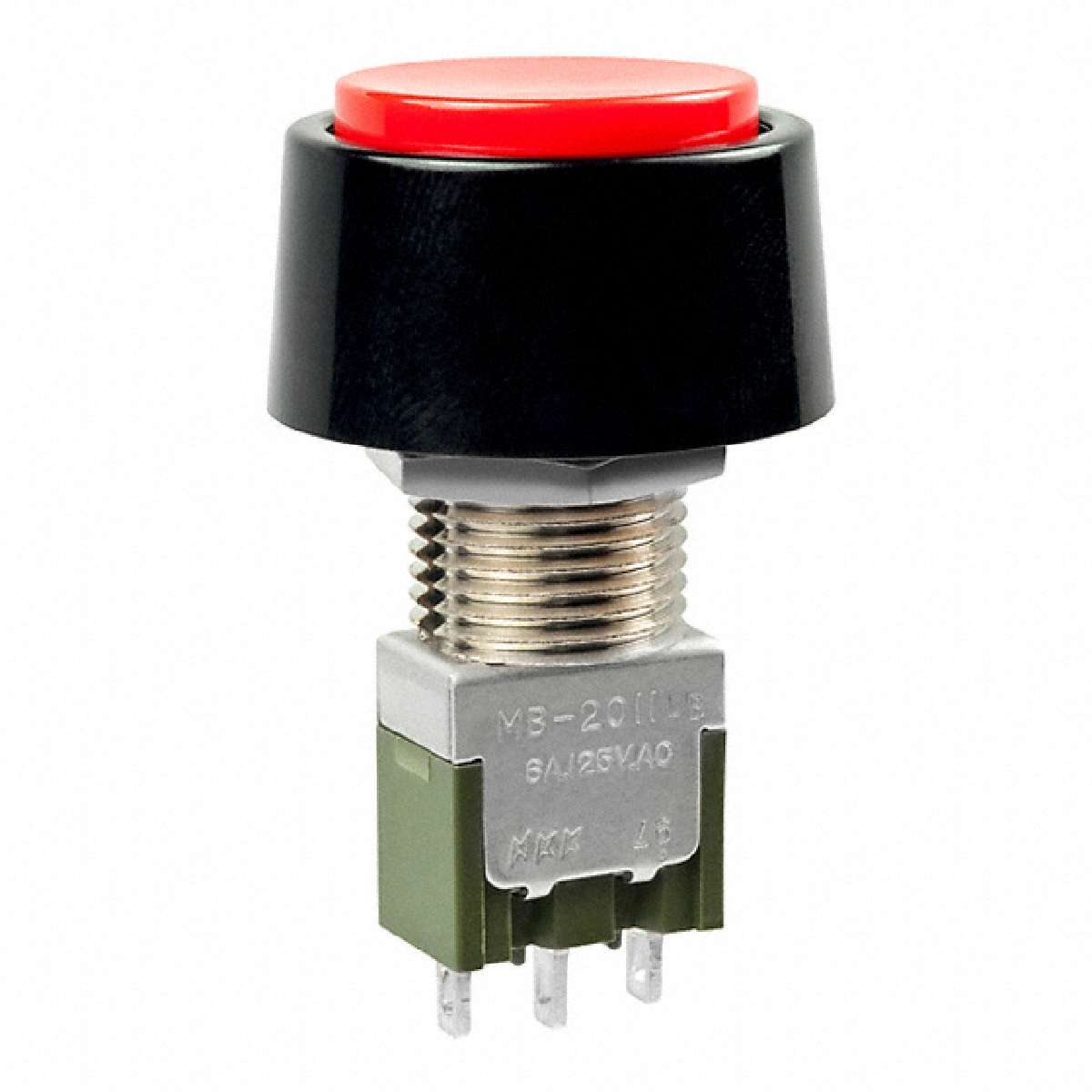

Pushbutton SPDT 6A 125V Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Cap Color: | Red |
|---|---|
| Terminal Seal: | Epoxy |
| Actuator: | Plunger, with Cap |
| Voltage Rating AC: | 250 V |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Solder Lug |
| Flammability Rating: | UL 94 V-0 |
| Contact Plating: | Silver |
| Mounting Style: | Panel |
| Housing Material: | Diallyl Phthalate Resin |
| Switch Function: | ON - (ON) |
| Manufacturer: | NKK Switches |
| Contact Form: | SPDT |
| Part # Aliases: | MB2011SB1W01-4C-A |
| RoHS: | Details |
| Product Category: | Pushbutton Switches |
| Current Rating: | 6 A |
| Life: | 100000 Cycles |
| ECCN | EAR99 |
