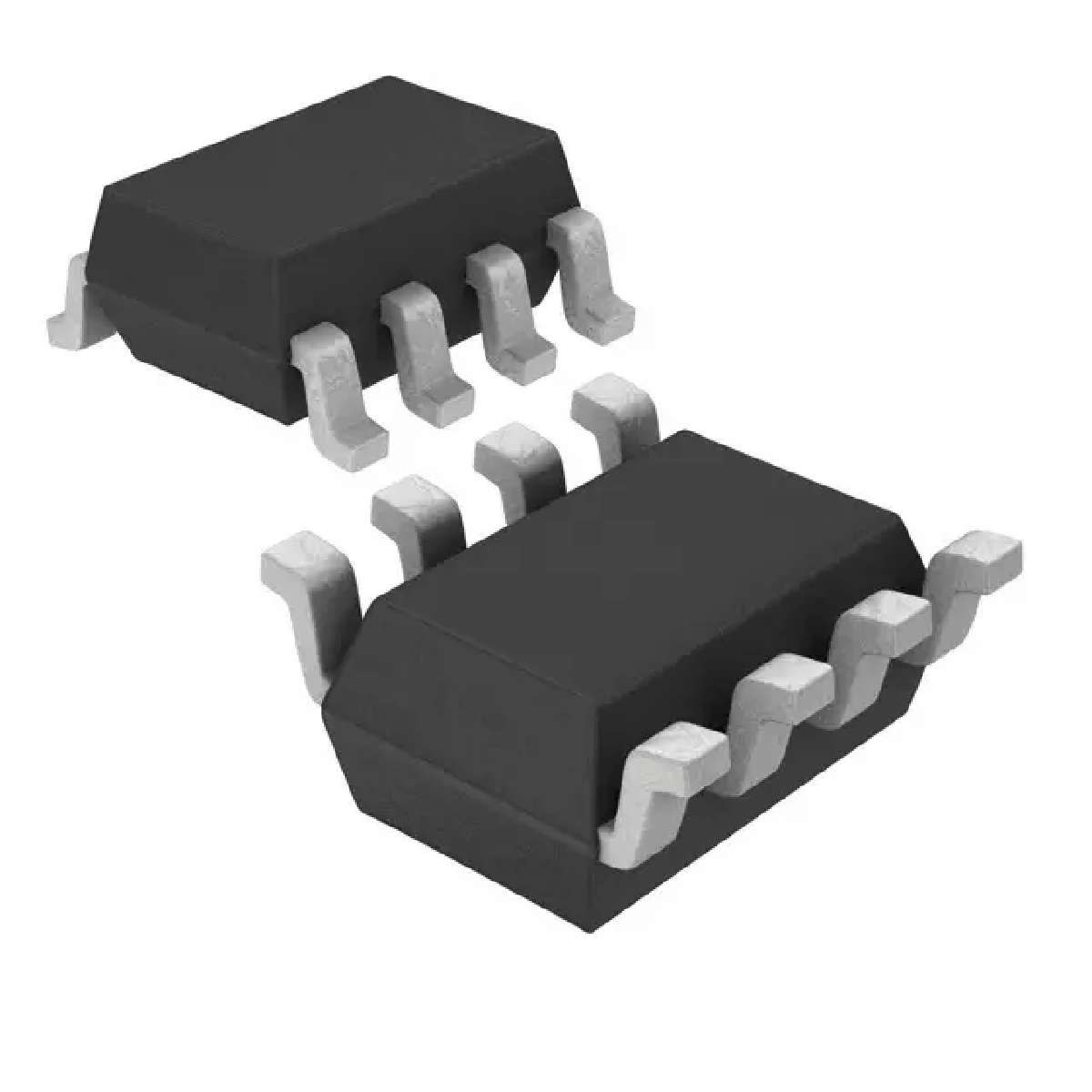

| MAX9618AXA+T | ||
|---|---|---|
|
|
||
|
||
| Product description : High-Efficiency, 1.5MHz Op Amps with RRIO | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Product: | Operational Amplifiers |
|---|---|
| CMRR - Common Mode Rejection Ratio: | 122 dB |
| Pd - Power Dissipation: | 245 mW |
| Package / Case: | SC-70-8 |
| Supply Voltage - Max: | 5.5 V |
| Mounting Style: | SMD/SMT |
| Shutdown: | No Shutdown |
| Output Current per Channel: | 150 mA |
| Manufacturer: | Maxim Integrated |
| Series: | MAX9618 |
| Factory Pack Quantity: | 2500 |
| Part # Aliases: | MAX9618 |
| Operating Supply Current: | 59 uA |
| Vcm - Common Mode Voltage: | 1.8 V to 5.5 V |
| ECCN | EAR99 |
| Packaging: | Reel |
| Minimum Operating Temperature: | - 40 C |
| Supply Voltage - Min: | 1.8 V |
| Ib - Input Bias Current: | 80 pA |
| Vos - Input Offset Voltage: | 10 uV |
| Number of Channels: | 2 Channel |
| Supply Type: | Single |
| SR - Slew Rate: | 0.7 V/us |
| Operating Supply Voltage: | 1.8 V to 5.5 V |
| GBP - Gain Bandwidth Product: | 1.5 MHz |
| Brand: | Maxim Integrated |
| RoHS: | Details |
| Product Category: | Operational Amplifiers - Op Amps |
| Maximum Operating Temperature: | + 125 C |
