| 63PZE33M8X9 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

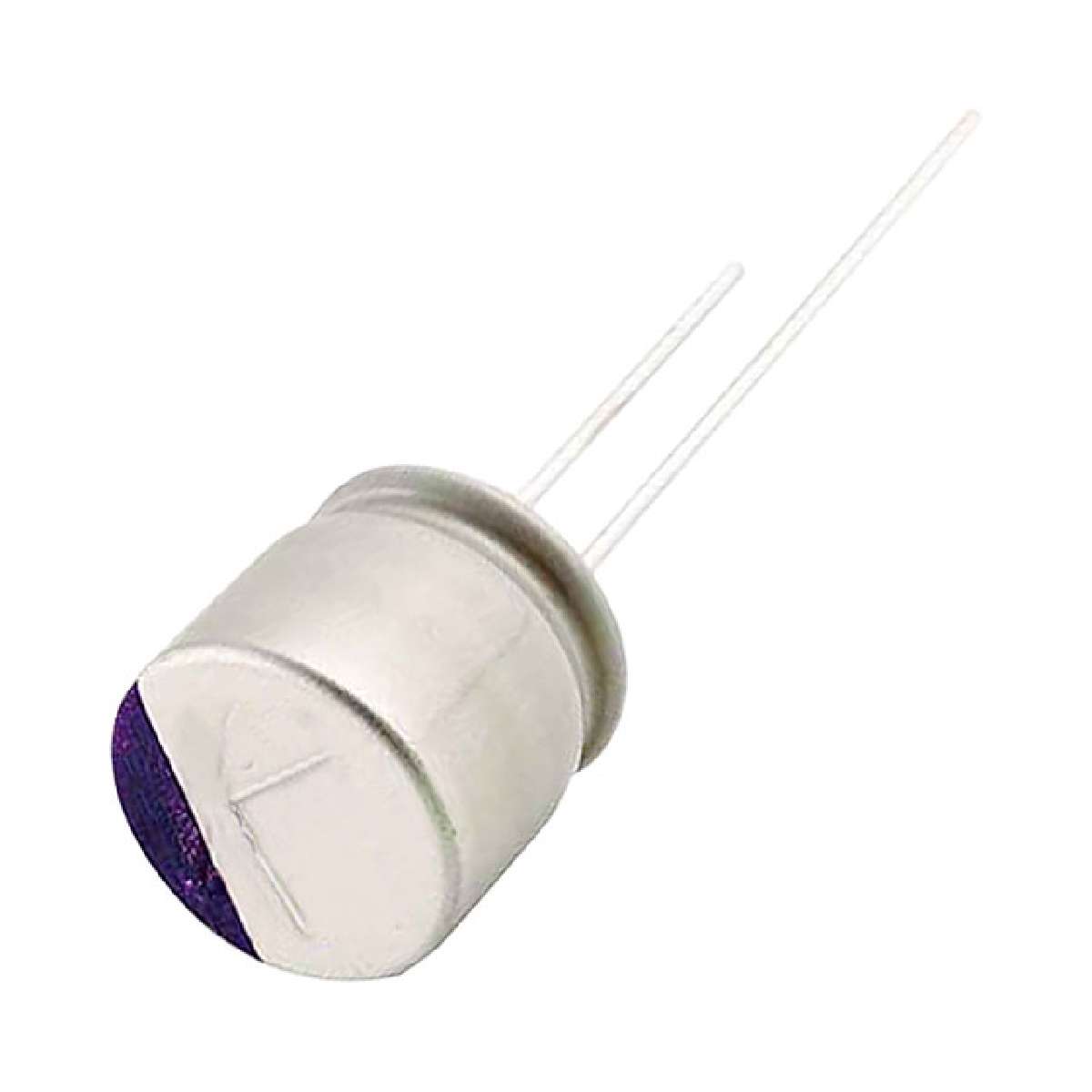

CAP ALUM POLY HYB 33UF 63V T/H
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 63V |
|---|---|
| Package / Case | Radial, Can |
| Lead Spacing | 0.138" (3.50mm) |
| ESR (Equivalent Series Resistance) | 40 mOhm |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Family | Aluminum - Polymer Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Categories | Capacitors ->Aluminum - Polymer Capacitors |
| Ripple Current @ Low Frequency | 85mA @ 120Hz |
| Tolerance | ±20% |
| Type | Hybrid |
| Capacitance | 33µF |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 85mA |
| Manufacturer | Rubycon |
| Series | PZE |
| Applications | Automotive |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Packaging | Bulk |
| Categories | Capacitors ->Aluminum - Polymer Capacitors |
| Ripple Current @ Low Frequency | 85mA @ 120Hz |
