| MAX4737EBE+T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

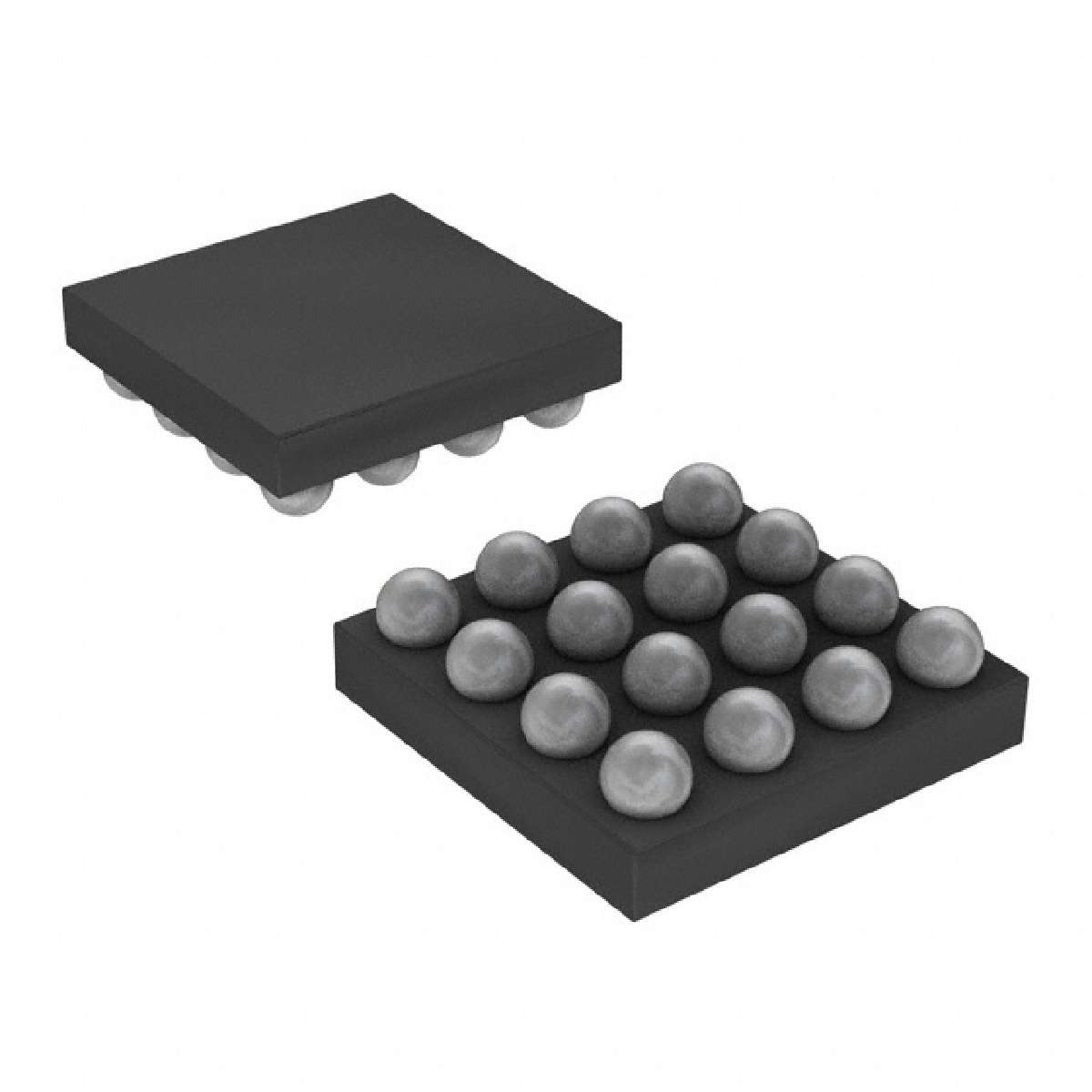

4.5 Ohm Quad SPST Analog Switches in UCSP
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Switches: | 4 Switch |
|---|---|
| Width: | 2.02 mm |
| Pd - Power Dissipation: | 659 mW |
| Supply Voltage - Min: | 1.8 V |
| Height: | 0.33 mm |
| Configuration: | 4 x SPST |
| Off Time - Max: | 40 ns |
| Length: | 2.02 mm |
| Switch Voltage - Max: | 5 V |
| Series: | MAX4737 |
| Brand: | Maxim Integrated |
| RoHS: | Details |
| Supply Current - Max: | 1 uA |
| Switch Continuous Current: | 100 mA |
| ECCN | EAR99 |
| Packaging: | Reel |
| Minimum Operating Temperature: | - 40 C |
| On Resistance - Max: | 3 Ohms |
| Package / Case: | UCSP-16 |
| Supply Voltage - Max: | 5.5 V |
| Mounting Style: | SMD/SMT |
| Supply Type: | Single Supply |
| Manufacturer: | Maxim Integrated |
| Operating Supply Voltage: | 1.8 V to 5.5 V |
| Factory Pack Quantity: | 2500 |
| Part # Aliases: | MAX4737 |
| Product Category: | Analog Switch ICs |
| On Time - Max: | 80 ns |
| Maximum Operating Temperature: | + 85 C |
