| SS-5-2D | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

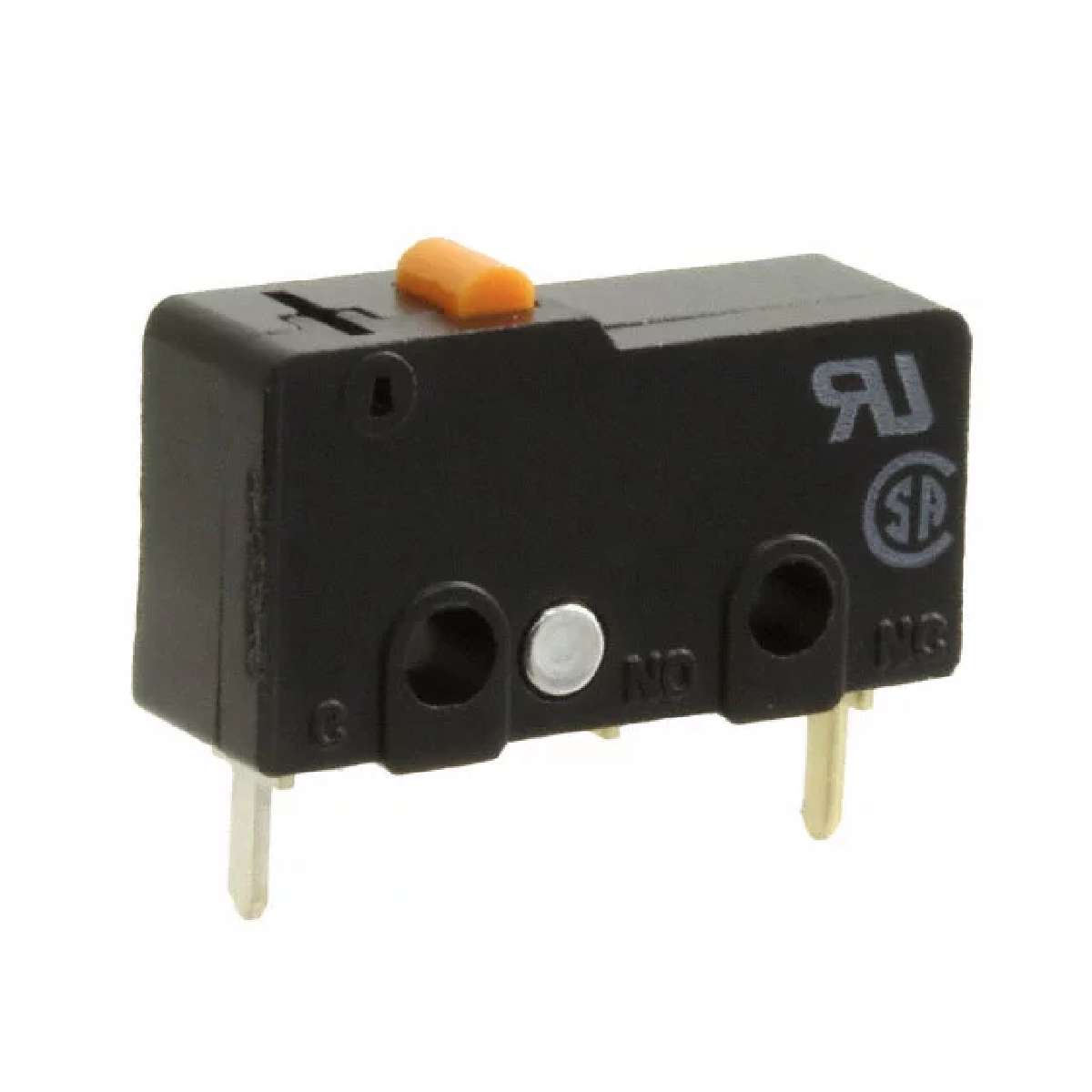

Microswitch SNAP ACTION; without lever; SPST-NC; 5A/125VAC; IP40
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPST-NC |
|---|---|
| Release Force | 25gf |
| Differential Travel | 0.004" (0.1mm) |
| Ingress Protection | IP40 |
| Termination Style | PC Pin |
| Part Status | Active |
| Electrical Life | 200,000 Cycles |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Mechanical Life | 30,000,000 Cycles |
| Family | Snap Action, Limit Switches |
| Overtravel | 0.020" (0.5mm) |
| Packaging | Bulk |
| Actuator Type | Round (Pin Plunger) |
| Switch Function | On-Mom |
| Pretravel | 0.020" (0.5mm) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Operating Force, Torque | 150gf |
| Category | Switches |
| Series | SS |
| Operating Position | 0.330" (8.4mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Current Rating | 5A (AC), 4A (DC) |
