| R82DC4100DQ60K | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

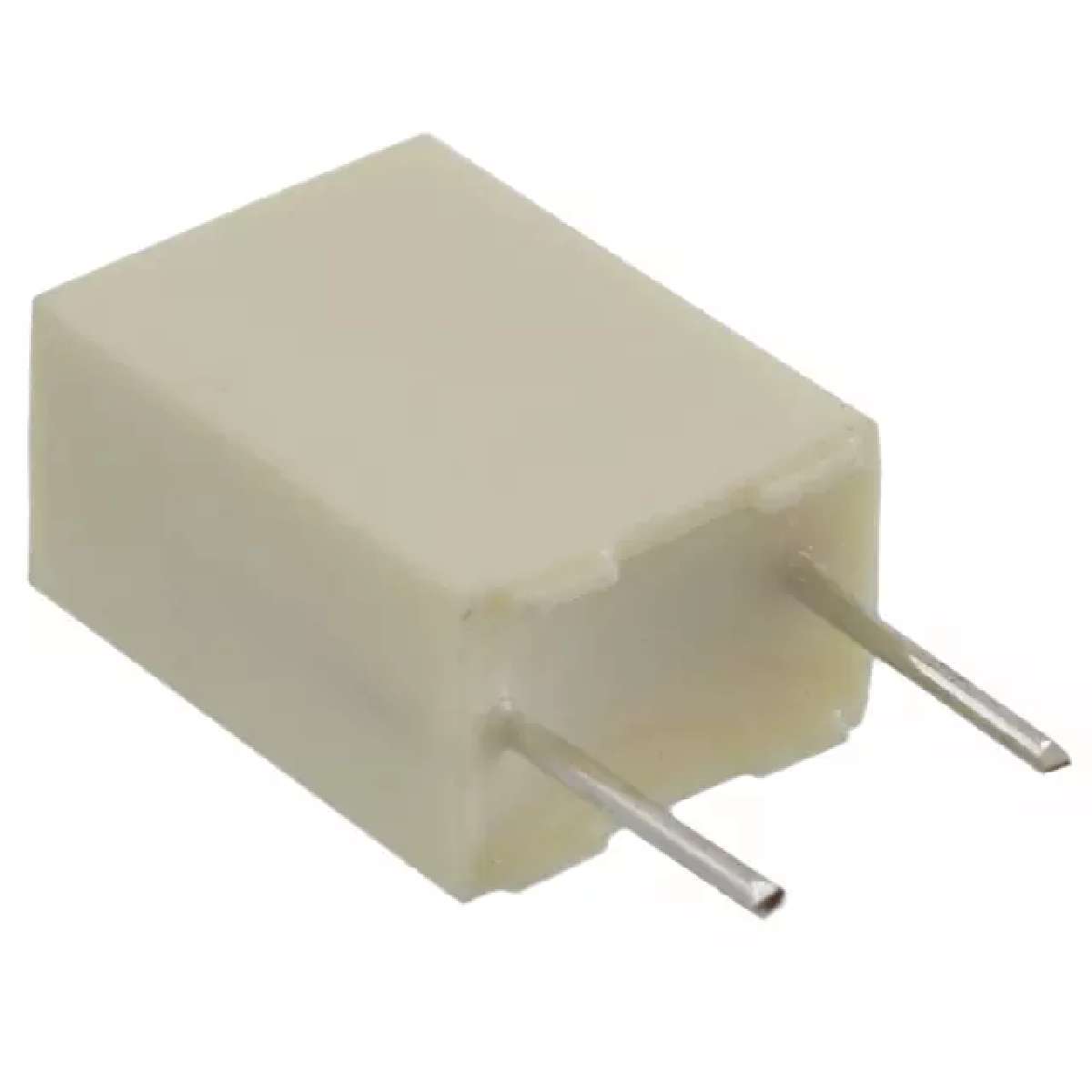

Capacitor: polyester; 1uF; 40VAC; 63VDC; Pitch: 5mm; ±10%; -55÷105°C
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | PC Pins |
|---|---|
| Package / Case | Radial |
| Capacitance | 1µF |
| Voltage Rating - DC | 63V |
| Size / Dimension | 0.283" L x 0.197" W (7.20mm x 5.00mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.398" (10.10mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Cut Tape (CT) |
| Tolerance | ±10% |
| Lead Spacing | 0.197" (5.00mm) |
| Voltage Rating - AC | 40V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| Part Status | Discontinued |
| Manufacturer | Kemet |
| Series | R82 |
| Applications | Automotive |
| Operating Temperature | -55°C ~ 105°C |
