| PTH04T230WAZ | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

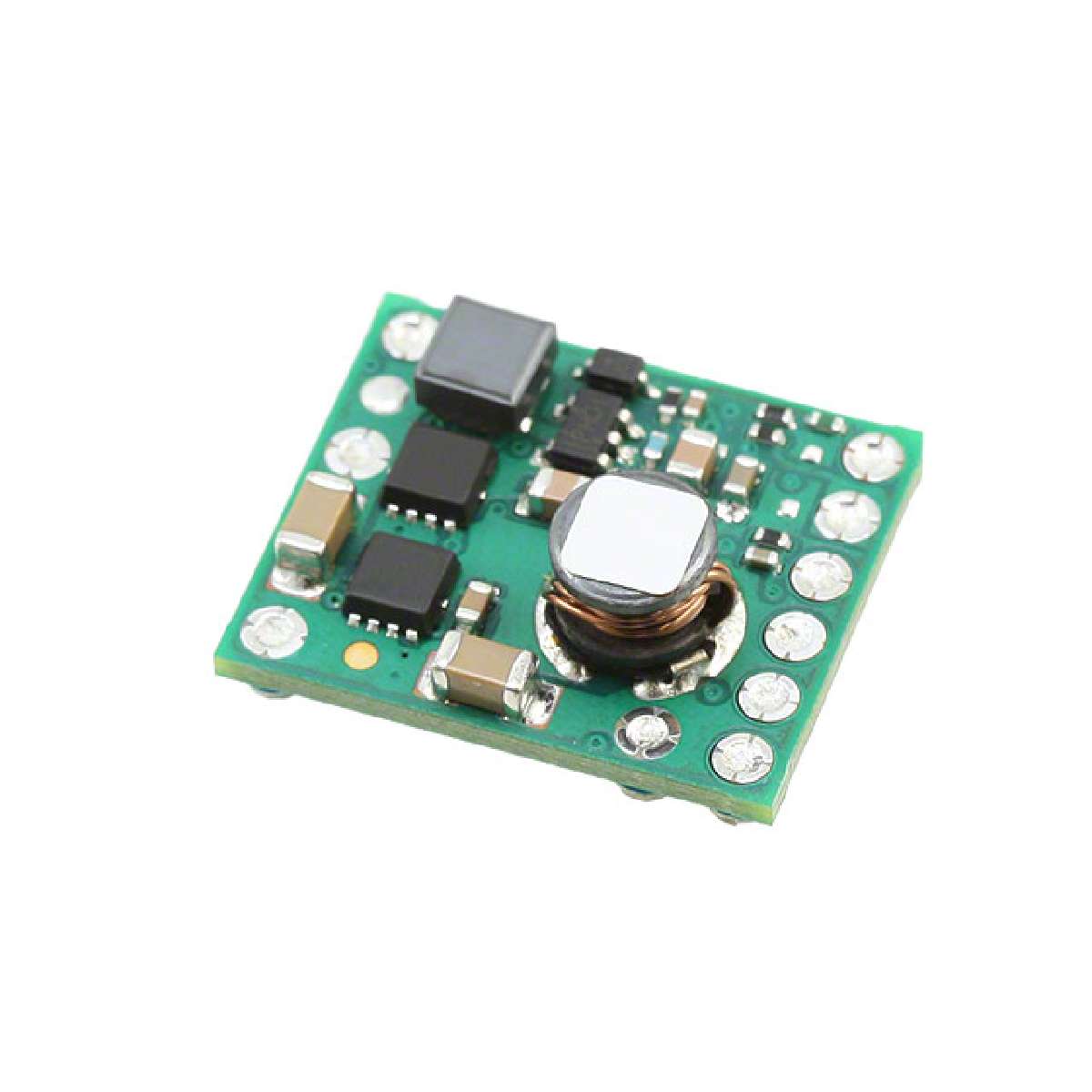

MODULE PIP 6A 2.2/5.5V 10SMD
|
||
| 标准包装：36 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Outputs | 1 |
|---|---|
| Current - Output (Max) | 6A |
| Size / Dimension | 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) |
| Mounting Type | Surface Mount |
| Packaging | Tray |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Online Catalog | PTH04T230W/231W |
| Series | PTH04T230W |
| Voltage - Input (Min) | 2.2V |
| RoHS | Lead free / RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Power (Watts) - Manufacture Series | 22W |
| Efficiency | 94% |
| Power (Watts) - Max | 22W |
| Package / Case | 10-SMD Module |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.69 ~ 3.6 V |
| Family | DC DC Converters |
| Operating Temperature | -40°C ~ 85°C |
