| M2T12SA5W03 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

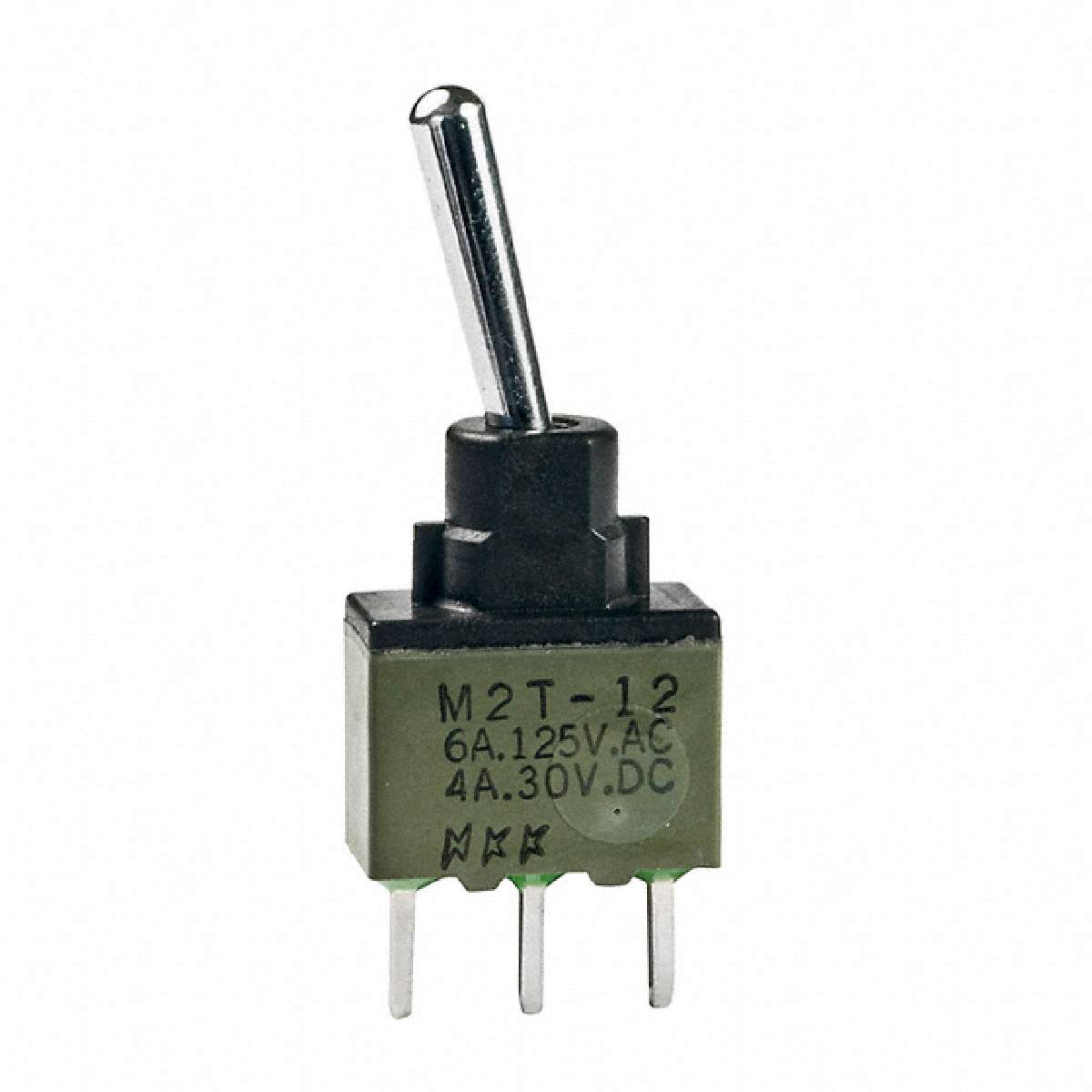

M2 Series SPST On-None-On Process Sealed Mini Toggle Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Housing Material: | Polyamide, Glass Fiber Reinforced |
|---|---|
| Operating Temperature Range: | - 30 C to + 85 C |
| Contact Material: | Silver |
| Mounting Style: | Panel |
| Switch Function: | ON - NONE - ON |
| Manufacturer: | NKK Switches |
| Series: | M2T |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| RoHS: | Details |
| Flammability Rating: | UL 94 V-0 |
| Current Rating: | 6 A |
| Type: | Sealed miniature toggles |
| Actuator: | Bat |
| Contact Form: | SPDT |
| Contact Plating: | Silver |
| Mounting Angle: | Vertical |
| Terminal Seal: | Sealed |
| Voltage Rating AC: | 125 V, 250 V |
| Voltage Rating DC: | 30 VDC |
| Mounting Type: | Bushing |
| Part # Aliases: | M2T-12AAP1 |
| Termination Style: | Solder Lug |
| Product Category: | Toggle Switches |
| Life: | 25000 Cycles |
| ECCN | EAR99 |
