| M2123TCFW01 | ||
|---|---|---|
|
|
||
|
||

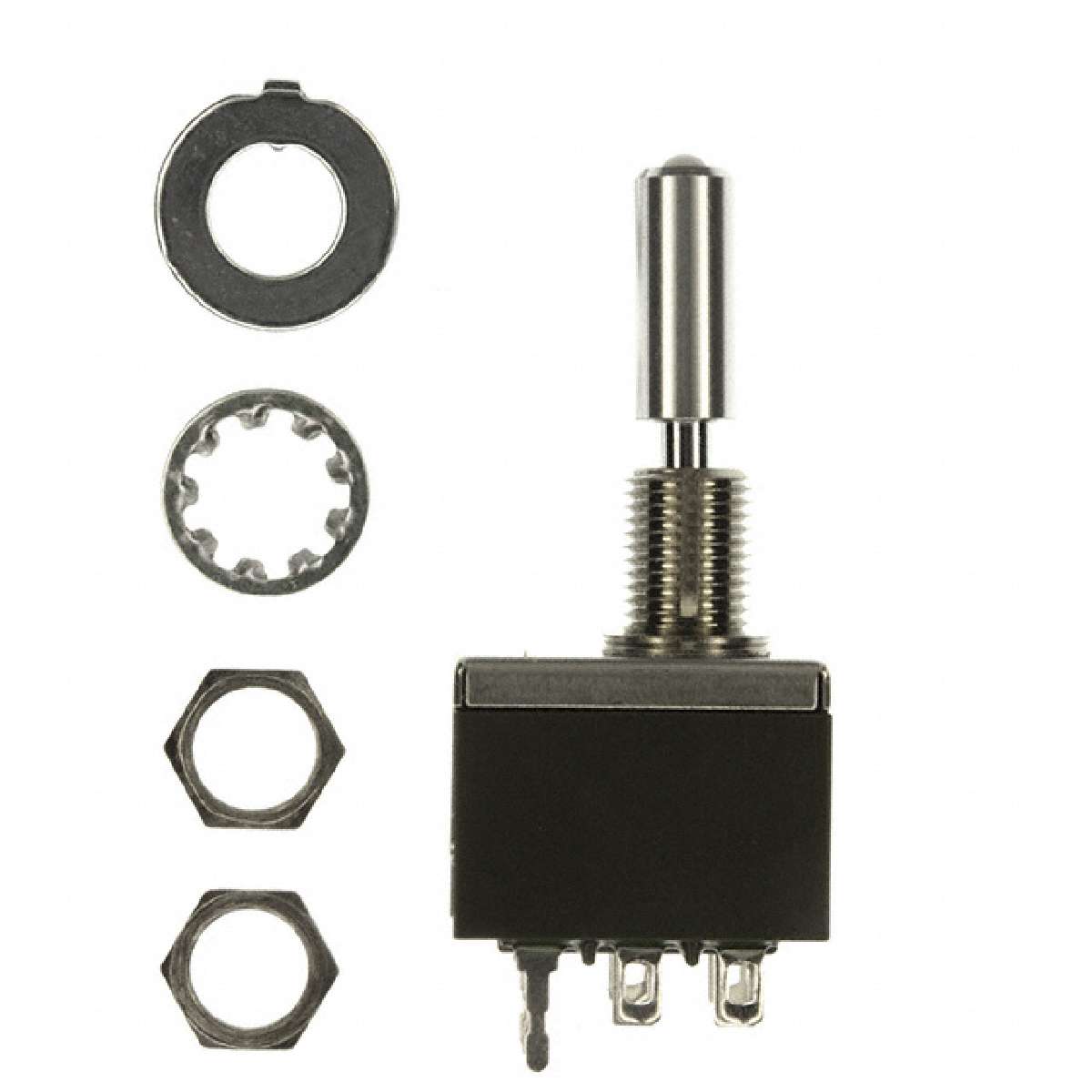

| Product description : M2100 Series 3 A DPDT On-Off-On Solder Lug Panel Mount Toggle Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Packaging: | Bulk |
|---|---|
| Actuator: | Bat |
| Operating Temperature Range: | - 30 C to + 85 C |
| Contact Material: | Silver |
| Contact Plating: | Silver |
| Mounting Style: | Panel |
| Mounting Angle: | Vertical |
| Switch Function: | ON - OFF - ON |
| Voltage Rating AC: | 125 V |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| RoHS: | Details |
| Flammability Rating: | UL 94 V-0 |
| Life: | 25000 Cycles |
| ECCN | EAR99 |
| Housing Material: | Brass |
| Bushing Size: | 1/4-40 |
| Contact Form: | DPDT |
| Illumination: | LED |
| Illumination Color: | Red, Green |
| Color: | Multi Color |
| Terminal Seal: | Sealed |
| Manufacturer: | NKK Switches |
| Series: | M |
| Mounting Type: | Bushing |
| Part # Aliases: | M-2123-N249-RM |
| Termination Style: | Solder Lug |
| Product Category: | Illuminated Toggle Switches |
| Type: | Miniature toggles |
