| M2122TFW01 | ||
|---|---|---|
|
|
||
|
||

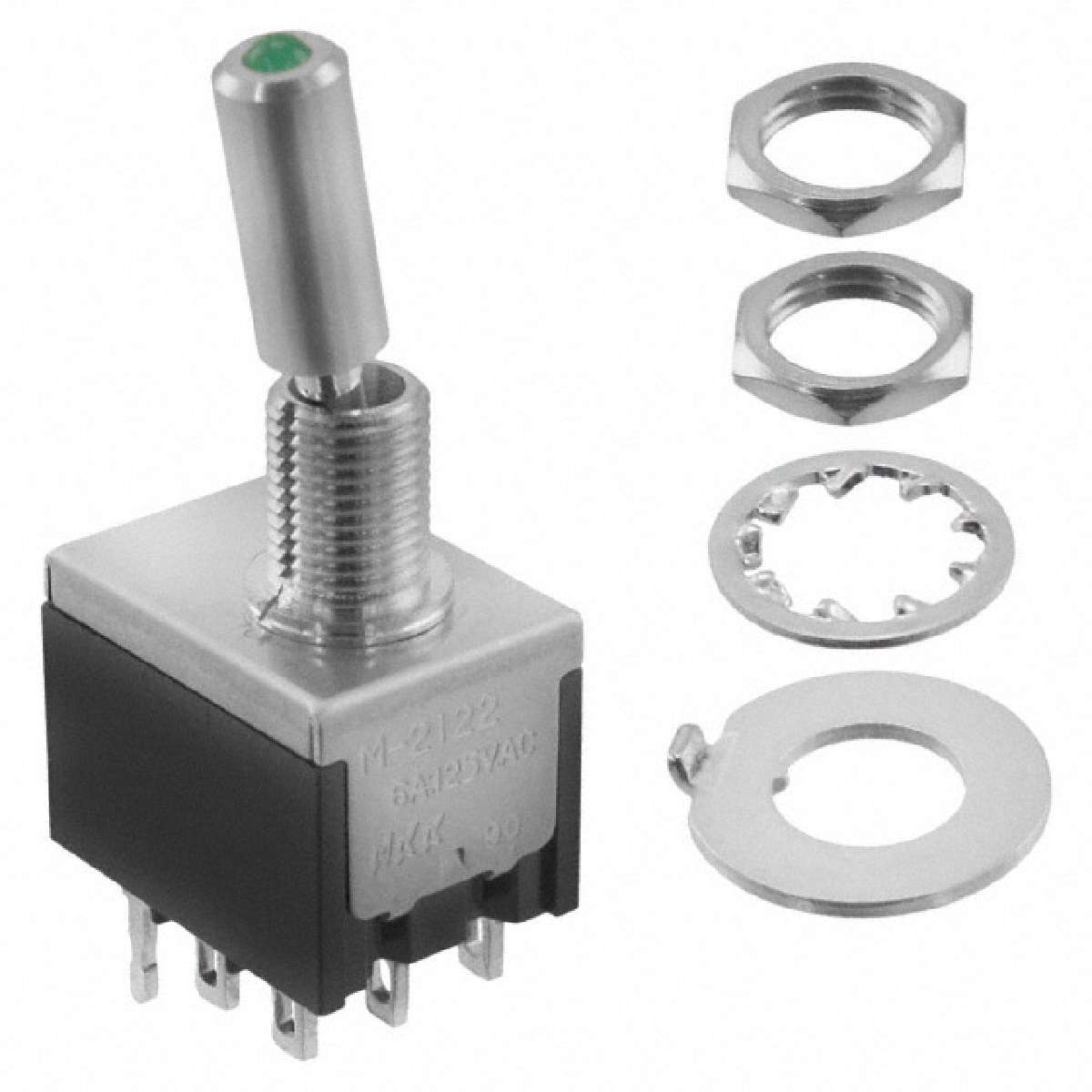

| Product description : MINIATURE TOGGLE/ILLUMINATED/SOLDER LUG & PC | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Packaging: | Bulk |
|---|---|
| Actuator: | Toggle |
| Operating Temperature Range: | - 10 C to + 55 C |
| Contact Material: | Silver |
| Contact Plating: | Silver |
| Mounting Style: | Through Hole |
| Mounting Angle: | Vertical |
| Terminal Seal: | Sealed |
| Voltage Rating AC: | 125 V |
| Factory Pack Quantity: | 1 |
| Part # Aliases: | M-2122-N248-M |
| Termination Style: | Solder Lug |
| Product Category: | Illuminated Toggle Switches |
| Type: | LED tipped actuators |
| Housing Material: | Stainless Steel |
| Bushing Size: | 1/4-40 |
| Contact Form: | DPDT |
| Illumination: | Illuminated |
| Illumination Color: | Green |
| Color: | Green |
| Switch Function: | ON - ON |
| Manufacturer: | NKK Switches |
| Series: | M2100 |
| Brand: | NKK Switches |
| RoHS: | Details |
| Flammability Rating: | UL 94 V-0 |
| Life: | 25000 Cycles |
| ECCN | EAR99 |
