| F862BP224K310ALR0L | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

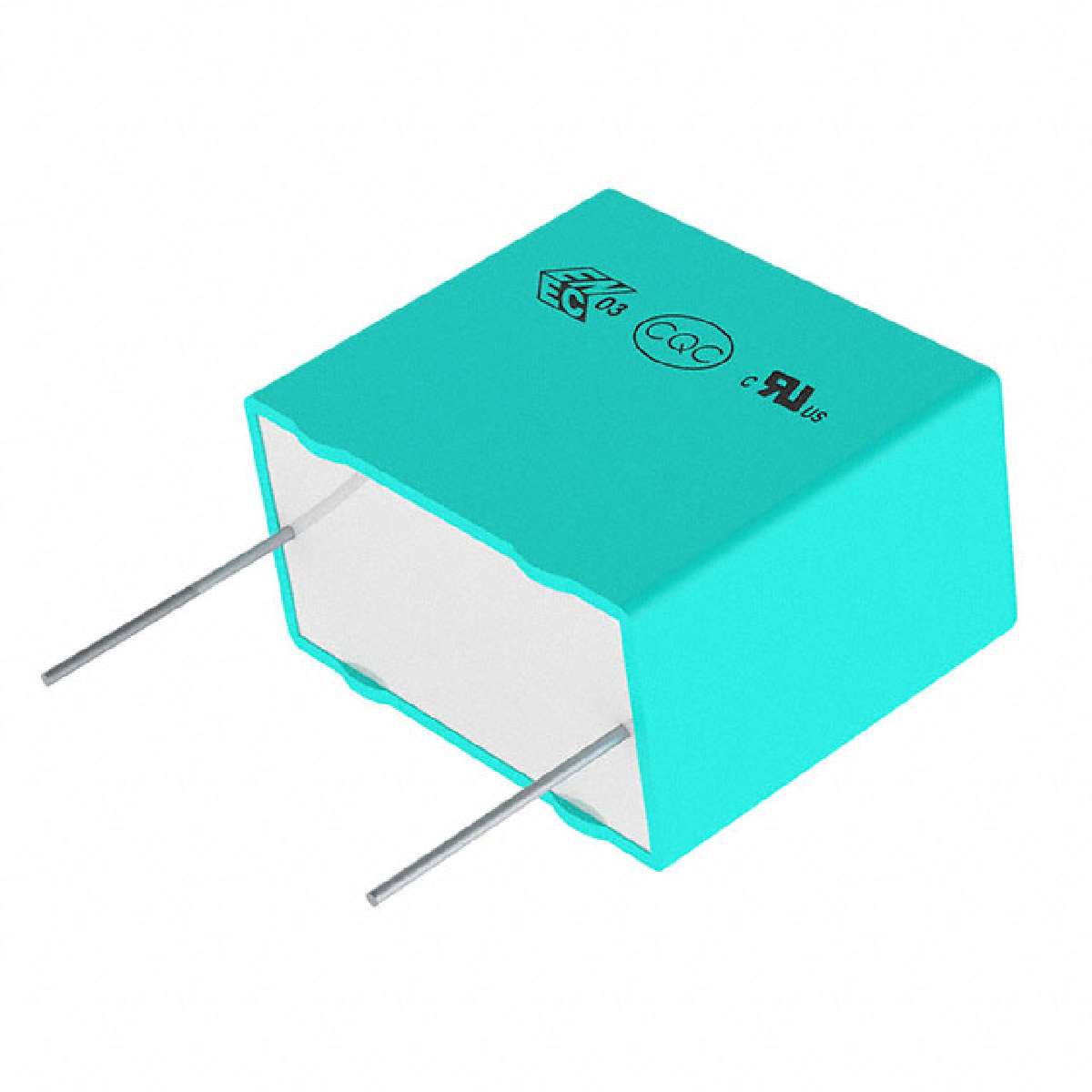

Capacitor: polypropylene; X2; 220nF; 15mm; ±10%; 18x8.5x14.5mm
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | PC Pins |
|---|---|
| Package / Case | Radial |
| Capacitance | 0.22µF |
| Voltage Rating - DC | 630V |
| Features | X2 Safety Rated |
| Part Status | Active |
| Manufacturer | Kemet |
| Series | F862 |
| Applications | EMI, RFI Suppression |
| Operating Temperature | -40°C ~ 110°C |
| Tolerance | ±10% |
| Lead Spacing | 0.591" (15.00mm) |
| Voltage Rating - AC | 310V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Size / Dimension | 0.709" L x 0.335" W (18.00mm x 8.50mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
