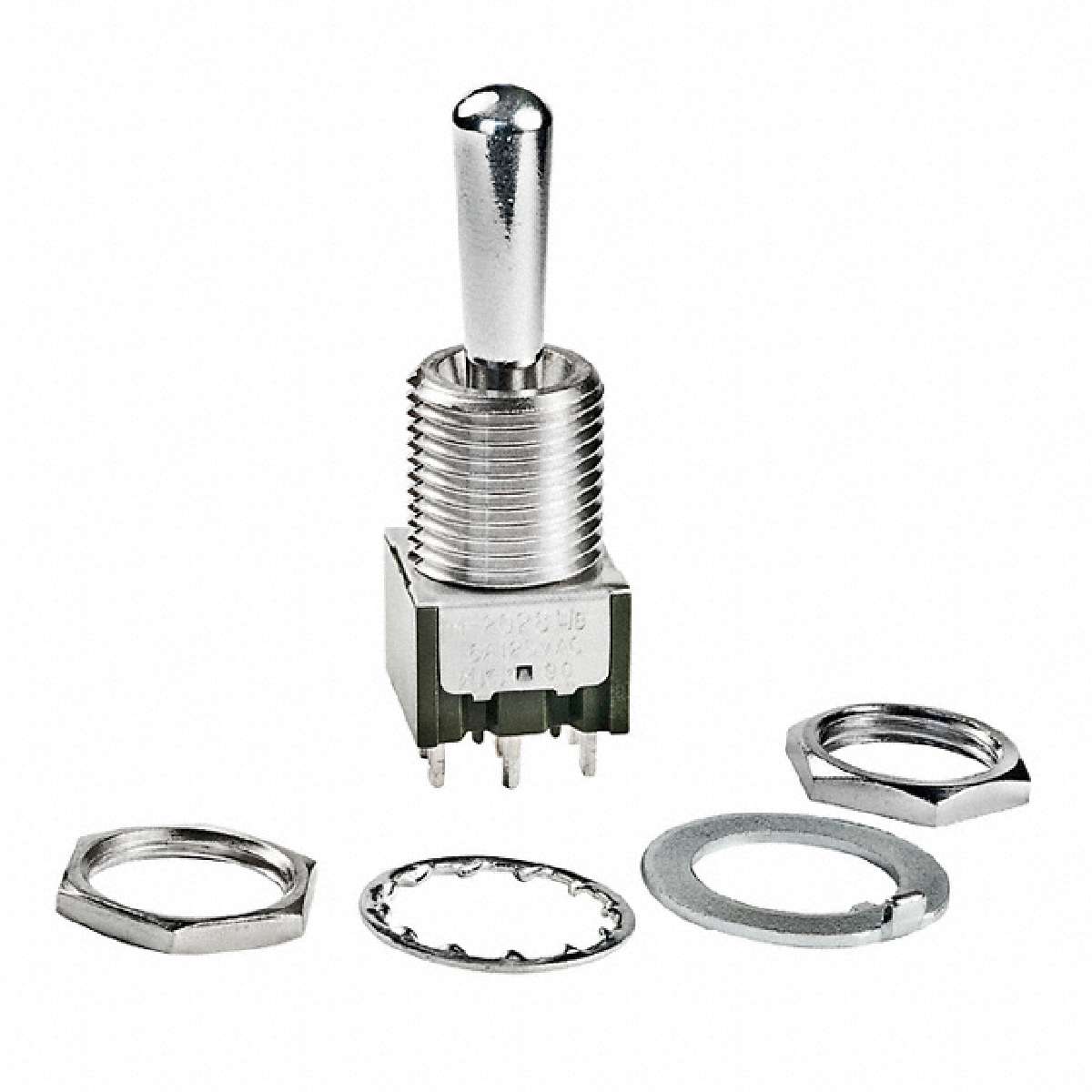

| M2028B2B1W01 | ||
|---|---|---|
|
|
||
|
||
| Product description : MINIATURE TOGGLE/MULTI-FUNCTION | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Switch Function | Mom-Off-Mom |
|---|---|
| Voltage Rating - DC | 30V |
| Manufacturer | NKK Switches |
| Actuator Material | Brass, Chrome Plated |
| Circuit | DPDT |
| Actuator Length | 17.50mm |
| Bushing Thread | M12 x 1 |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Family | Toggle Switches |
| Operating Temperature | -30°C ~ 85°C |
| ECCN | EAR99 |
| Termination Style | Solder Lug |
| Electrical Life | 25,000 Cycles |
| Mounting Type | Panel Mount |
| Packaging | Bulk |
| Actuator Type | Standard Round |
| Voltage Rating - AC | 125V |
| Features | Epoxy Sealed Terminals |
| Category | Switches |
| Series | M |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Current Rating | 6A (AC), 3A (DC) |
