M2023SS1W03 | ||
---|---|---|
|
||
|
||
产品描述:

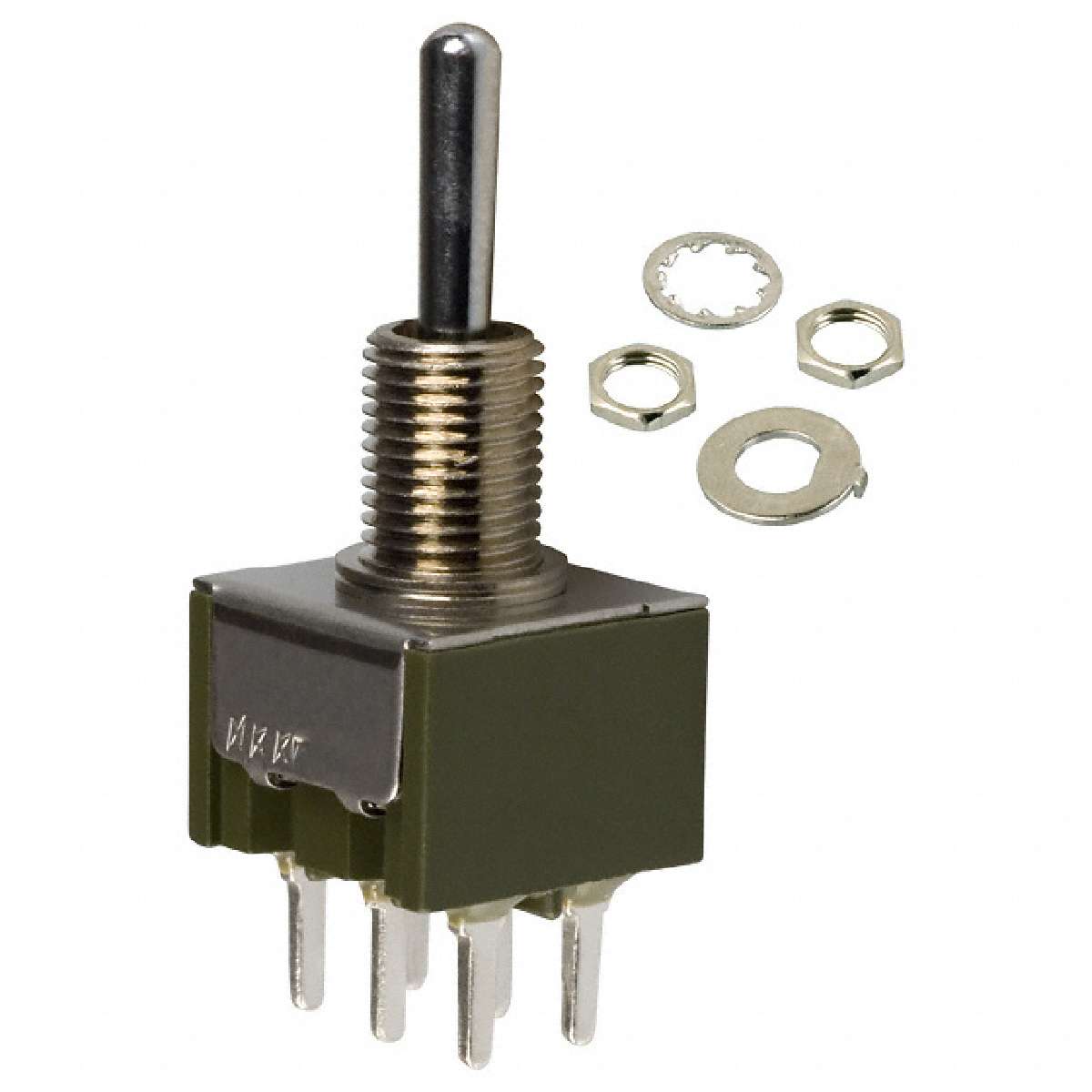

M Series 6 A Mini DPDT On-Off-On Straight PC Mount Toggle Switch
|
||
标准包装:1 | ||
数据手册: -- |
Switch Function | On-Off-On |
---|---|
Voltage Rating - DC | 30V |
Manufacturer | NKK Switches |
Actuator Material | Brass, Chrome Plated |
Circuit | DPDT |
Actuator Length | 10.50mm |
Bushing Thread | 1/4-40 |
Part Status | Active |
Illumination | Non-Illuminated |
Family | Toggle Switches |
Operating Temperature | -30°C ~ 85°C |
ECCN | EAR99 |
Termination Style | PC Pin |
Electrical Life | 25,000 Cycles |
Mounting Type | Panel Mount |
Packaging | Bulk |
Actuator Type | Standard Round |
Voltage Rating - AC | 125V |
Features | Epoxy Sealed Terminals |
Category | Switches |
Series | M |
Panel Cutout Dimensions | Circular - 6.50mm Dia |
Current Rating | 6A (AC), 3A (DC) |
