| M2013TXG13-DA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

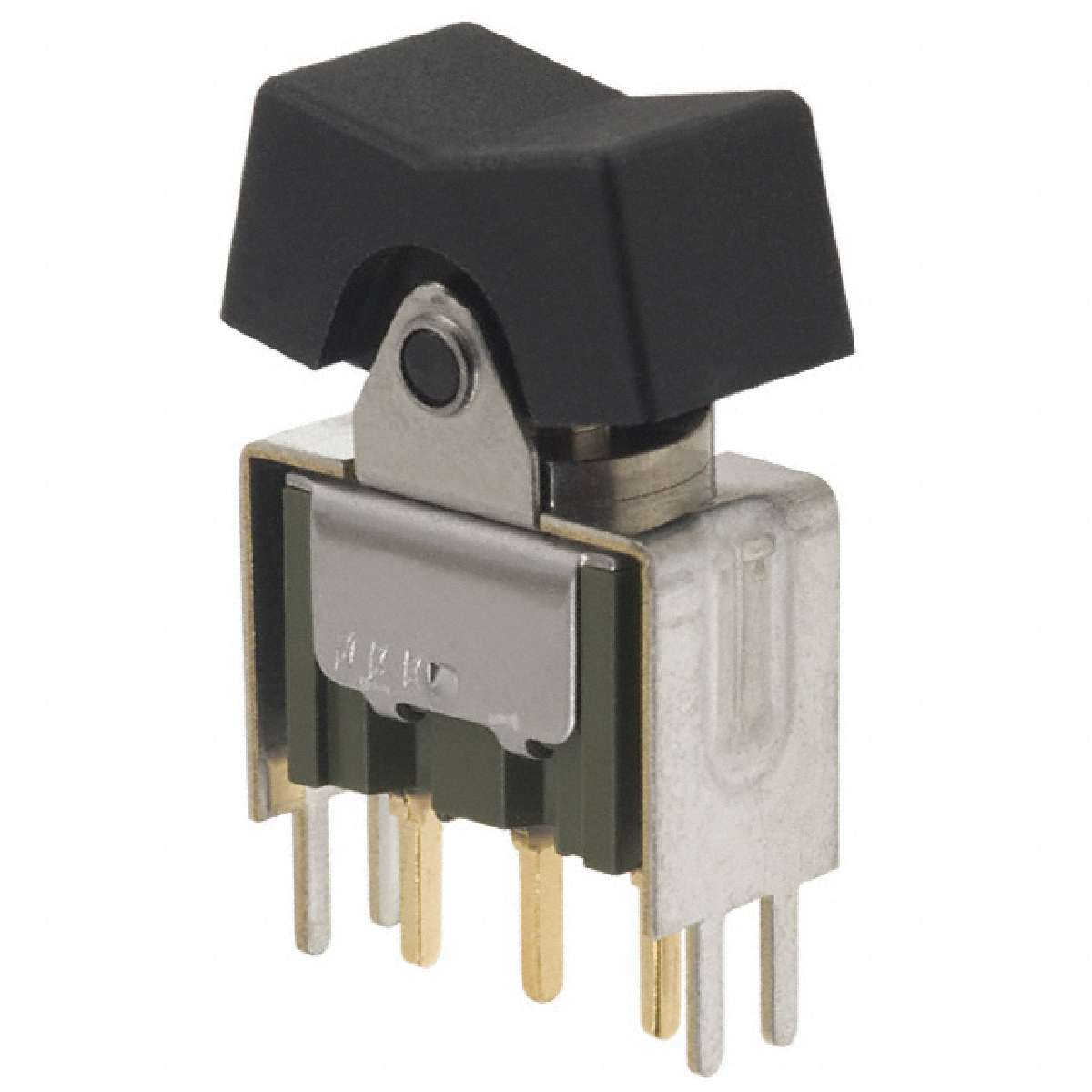

M Series 0.4 VA Mini SPDT On-Off-On Straight PC Mount Rocker Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPDT |
|---|---|
| Actuator Marking | No Marking |
| Voltage Rating - AC | 28V |
| Voltage Rating - DC | 28V |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Color - Actuator/Cap | Black |
| Mechanical Life | 50,000 Cycles |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| ECCN | EAR99 |
| Actuator Type | Concave (Standard V) |
| Switch Function | On-Off-On |
| Termination Style | PC Pin |
| Features | Epoxy Sealed Terminals |
| Electrical Life | 50,000 Cycles |
| Category | Switches |
| Series | M |
| Family | Rocker Switches |
| Operating Temperature | -30°C ~ 85°C |
| Current Rating | 0.4VA (AC/DC) |
