| LXR9-SW30 | ||
|---|---|---|
|
|
||
|
||

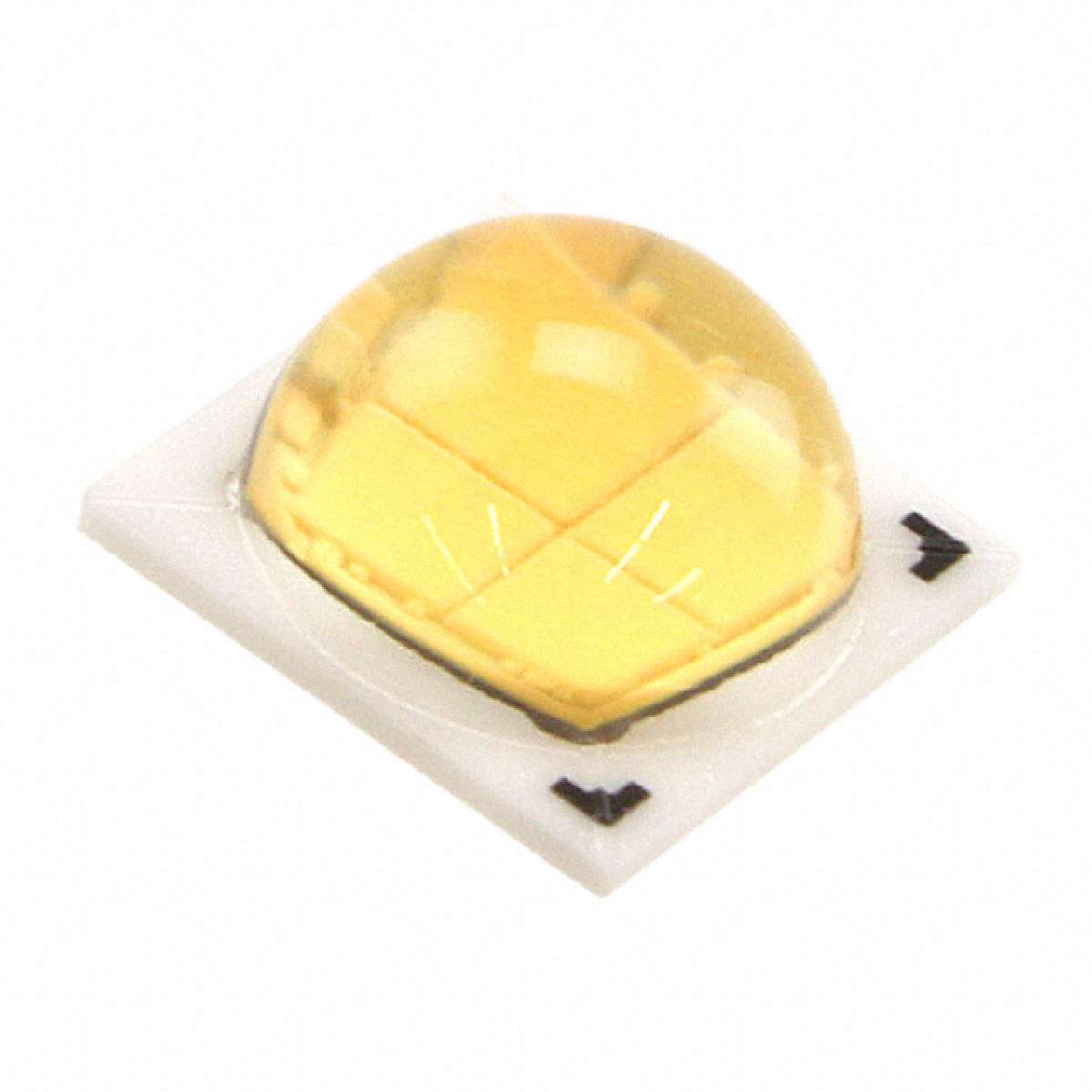

| Product description : LUXEON M High Power SMT LED Emitter Warm White 90 CRI 3000K 700 mA 560 lm Min | ||
| SPQ：500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Width: | 7 mm |
|---|---|
| Packaging: | Reel |
| Luminous Flux/Radiant Flux: | 580 lm |
| Color Rendering Index - CRI: | 90 |
| Manufacturer: | Lumileds |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Lumileds |
| RoHS: | Details |
| Height: | 3.75 mm |
| Lens Shape: | Dome |
| Mounting Style: | SMD/SMT |
| Maximum Operating Temperature: | + 120 C |
| Viewing Angle: | 120 deg |
| Color Temperature: | 3000 K |
| Length: | 7 mm |
| If - Forward Current: | 700 mA |
| Series: | LUXEON M |
| Factory Pack Quantity: | 500 |
| Tradename: | LUXEON |
| Product Category: | High Power LEDs - White |
| Illumination Color: | Warm White |
| Unit Weight: | 0.010582 oz |
| Vf - Forward Voltage: | 11.2 V |
| ECCN | EAR99 |
