| LXML-PWN1-0120 | ||
|---|---|---|
|
|
||
|
||

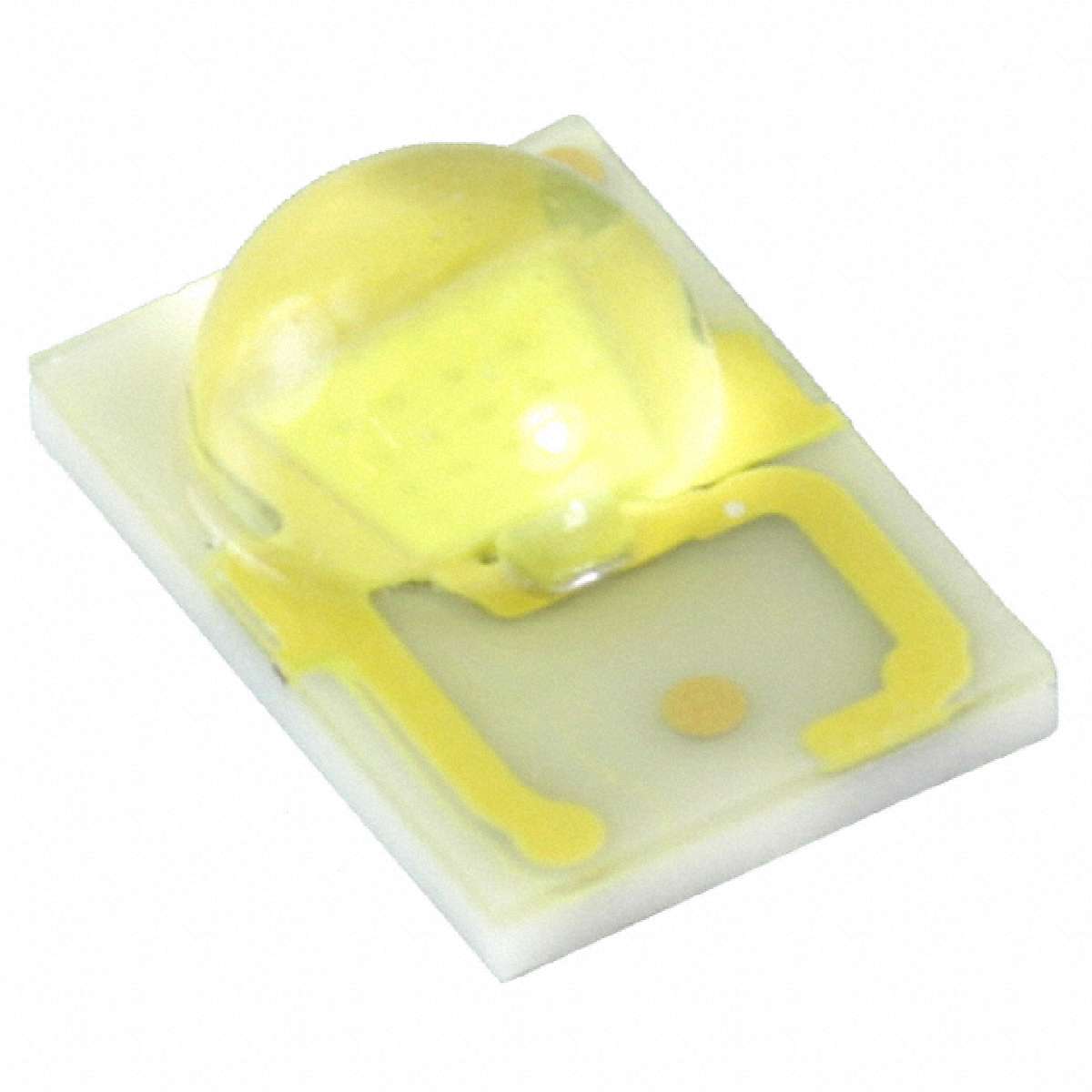

| Product description : LUXEON Rebel SMT High Power LED Emitter Neutral White Lambertian 350 mA 120 lm | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Lens Color/Style: | Water Clear |
|---|---|
| Viewing Angle: | 120 deg |
| Luminous Flux/Radiant Flux: | 120 lm |
| Minimum Operating Temperature: | - 40 C |
| LED Size: | 4.49 mm x 3.05 mm x 1.98 mm |
| Illumination Color: | Neutral White |
| Lens Shape: | Dome |
| Mounting Style: | SMD/SMT |
| Color Temperature: | 4100 K |
| If - Forward Current: | 350 mA |
| Series: | LUXEON Rebel White |
| Brand: | Lumileds |
| Product Category: | High Power LEDs - White |
| Maximum Operating Temperature: | + 135 C |
| Width: | 3.05 mm |
| Packaging: | Reel |
| Color Rendering Index - CRI: | 70 |
| Tradename: | LUXEON |
| Package / Case: | SMD-2 |
| Height: | 1.98 mm |
| Lens Dimensions: | 2.55 mm |
| Vf - Forward Voltage: | 3 V |
| Length: | 4.49 mm |
| Manufacturer: | Lumileds |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Type: | LUXEON Rebel |
| ECCN | EAR99 |
