LXML-PL01-0050 | ||
---|---|---|
|
||
|
||
产品描述:

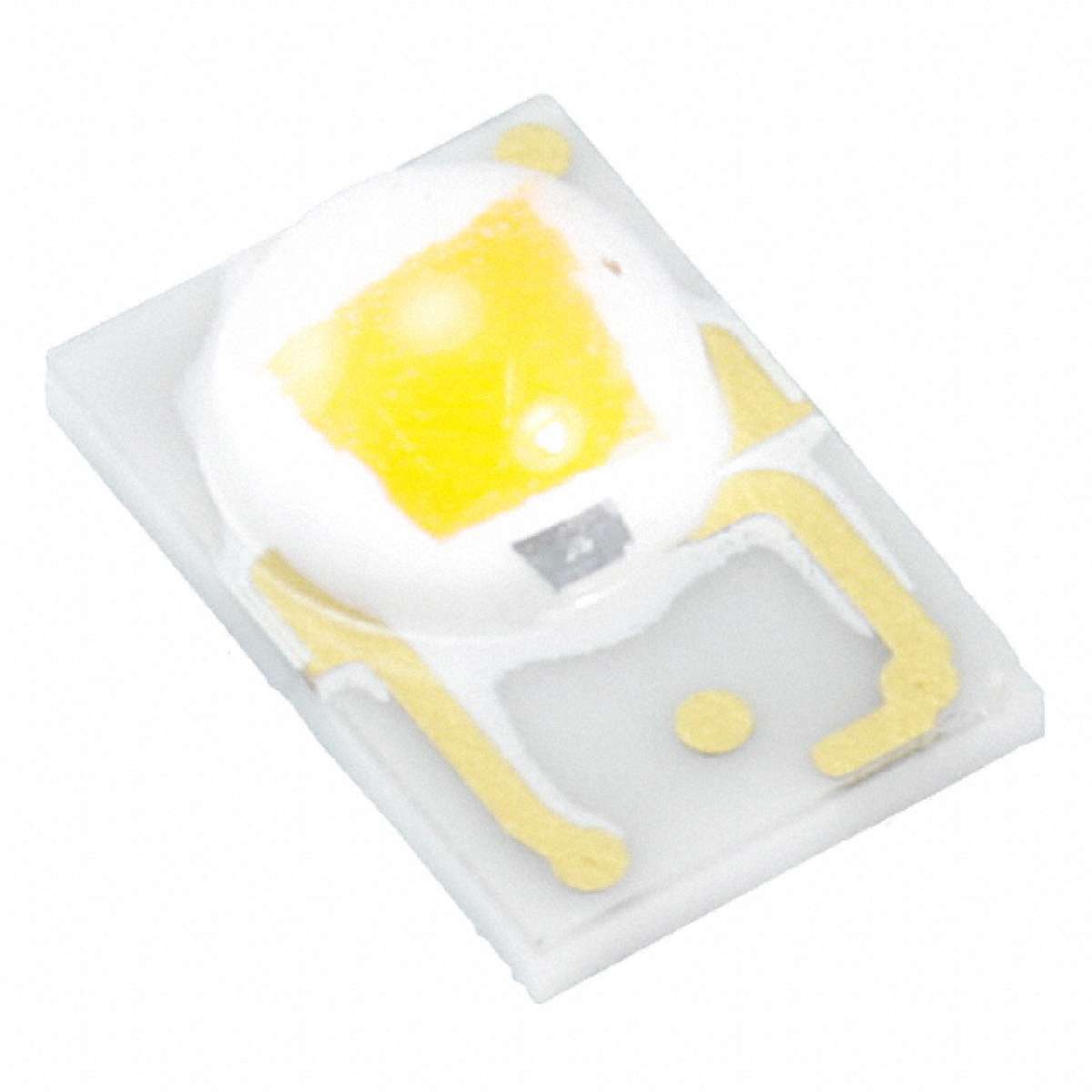

LUXEON Rebel SMT High Power LED Emitter Amber Lambertian 350 mA 2.9 V 50 lm Min
|
||
标准包装:1000 | ||
数据手册: -- |
Lens Color/Style: | Water Clear |
---|---|
Viewing Angle: | 120 deg |
Luminous Flux/Radiant Flux: | 50 lm |
Tradename: | LUXEON |
Package / Case: | SMD-2 |
Height: | 2.1 mm |
Mounting Style: | SMD/SMT |
Length: | 4.91 mm |
Manufacturer: | Lumileds |
Factory Pack Quantity: | 1000 |
Part # Aliases: | LXML-PL-0023 |
Product Category: | High Power LEDs - Single Color |
Wavelength: | 590 nm |
ECCN | EAR99 |
Width: | 3.17 mm |
Packaging: | Reel |
Minimum Operating Temperature: | - 40 C |
LED Size: | 4.91 mm x 3.17 mm x 2.1 mm |
Illumination Color: | Amber |
Lens Shape: | Dome |
Vf - Forward Voltage: | 2.9 V |
If - Forward Current: | 350 mA |
Series: | LUXEON Rebel Color |
Brand: | Lumileds |
RoHS: | Details |
Type: | LUXEON Rebel Color |
Maximum Operating Temperature: | + 120 C |
