| LXA7-PW50 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

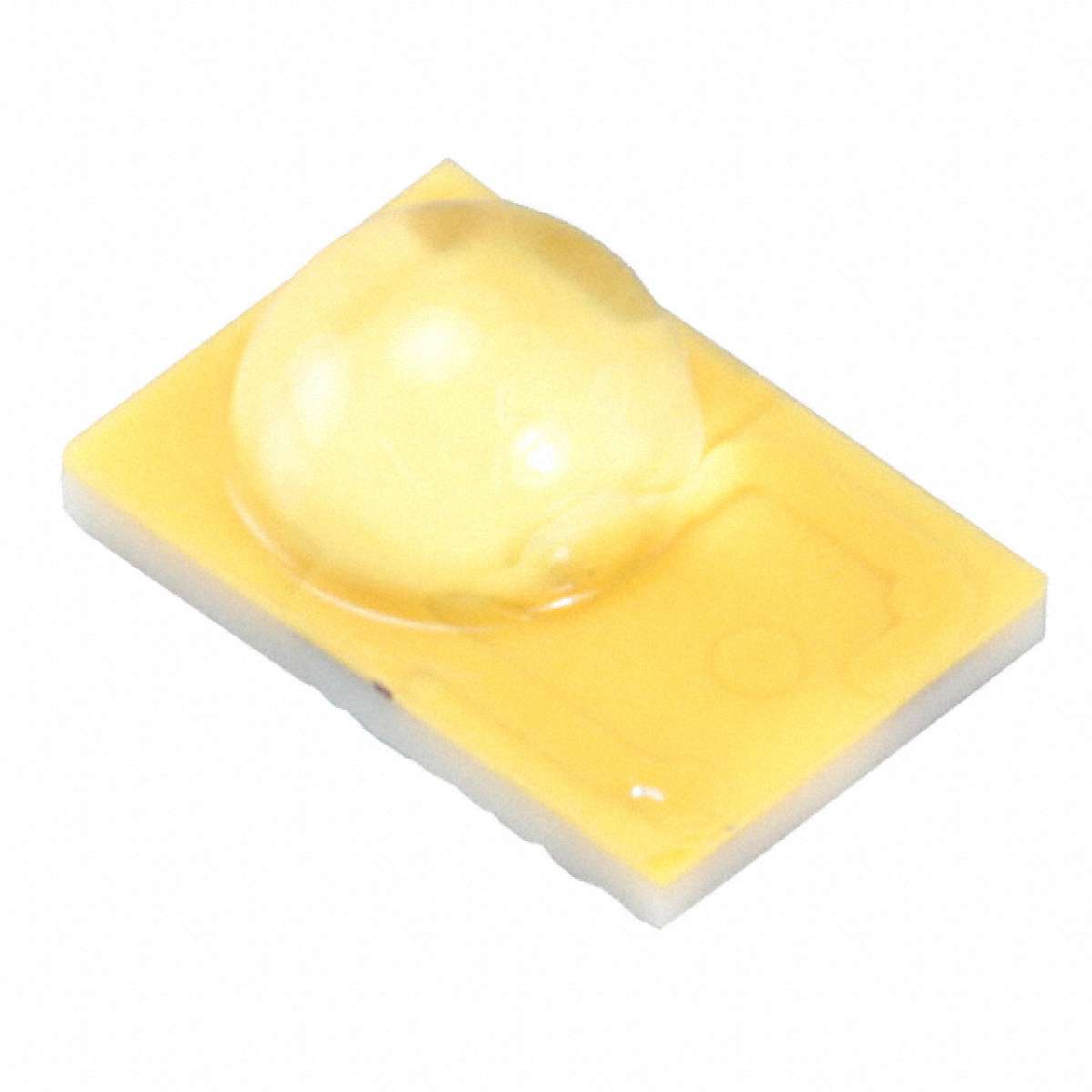

LUXEON R SMT High Power LED Emitter Cool White Lambertian 5000K 700 mA 200lm Min
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 70 |
|---|---|
| Viewing Angle | 120° |
| CCT (K) | 5000K 5-Step MacAdam Ellipse |
| Part Status | Active |
| Manufacturer | Lumileds |
| Voltage - Forward (Vf) (Typ) | 2.81V |
| Series | LUXEON R |
| Family | LED Lighting - White |
| Lumens/Watt @ Current - Test | 112 lm/W |
| ECCN | EAR99 |
| Package / Case | 2-SMD, No Lead, Exposed Pad |
| Thermal Resistance of Package | 6°C/W |
| Color | White, Cool |
| Category | Optoelectronics |
| Flux @ 85°C, Current - Test | 220 lm (Typ) |
| Current - Test | 700mA |
| Current - Max | 1A |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel® |
