| LX18-P140-3 | ||
|---|---|---|
|
|
||
|
||

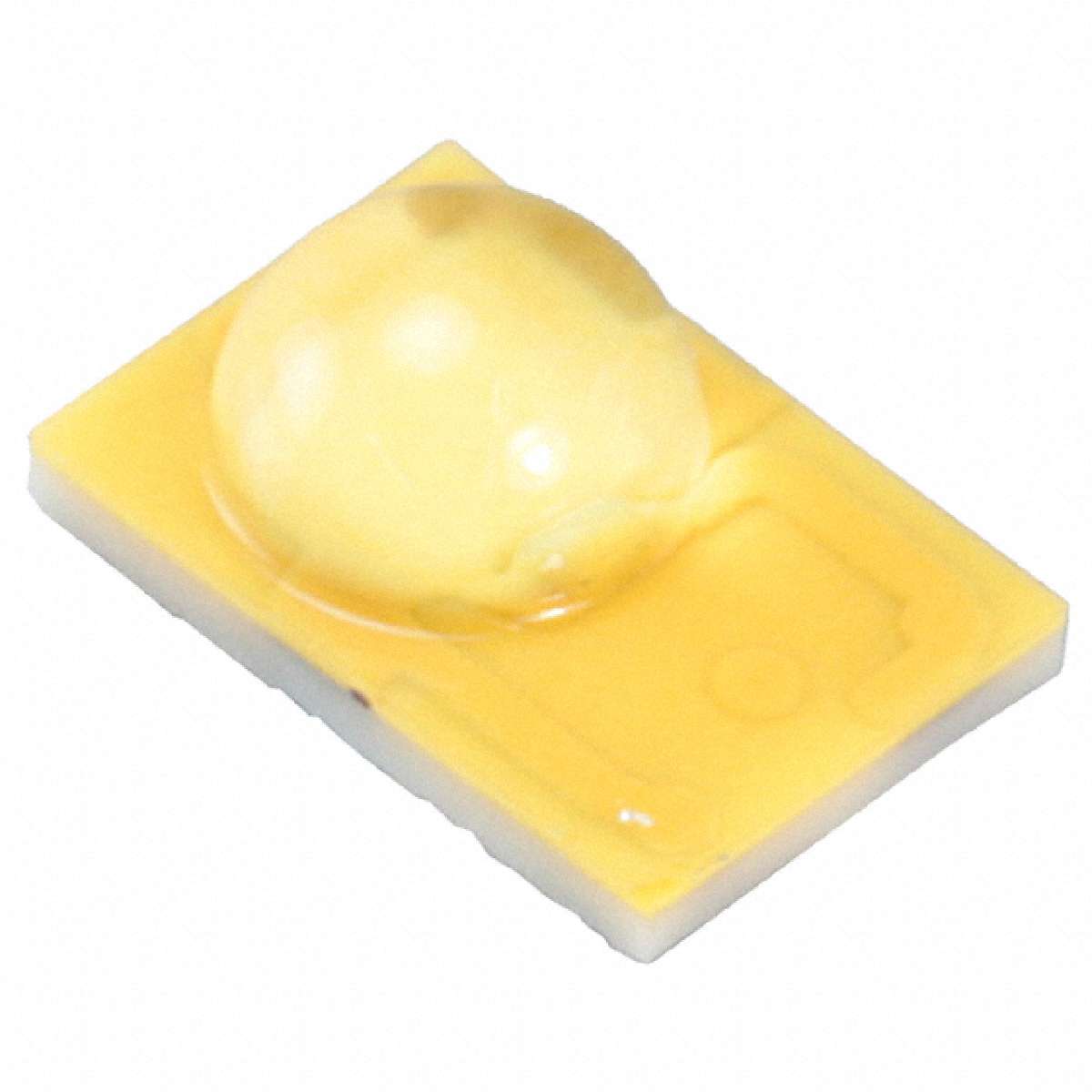

| Product description : LUXEON Rebel PLUS High Power LED Neutral White 80 CRI 4000 K 3 Step MCE 350 mA | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Lens Color/Style: | Water Clear |
|---|---|
| Viewing Angle: | 120 deg |
| Luminous Flux/Radiant Flux: | 103 lm |
| Minimum Operating Temperature: | - 40 C |
| LED Size: | 4.61 mm x 3.17 mm x 2.1 mm |
| Illumination Color: | Neutral White |
| Lens Shape: | Dome |
| Vf - Forward Voltage: | 2.76 V |
| Length: | 4.61 mm |
| Manufacturer: | Lumileds |
| Factory Pack Quantity: | 1000 |
| Part # Aliases: | LXM3-PW51 LXM7-PW40 |
| Product Category: | High Power LEDs - White |
| Maximum Operating Temperature: | + 135 C |
| Width: | 3.17 mm |
| Packaging: | Reel |
| Color Rendering Index - CRI: | 80 |
| Tradename: | LUXEON |
| Package / Case: | 4530 |
| Height: | 2.1 mm |
| Mounting Style: | SMD/SMT |
| Color Temperature: | 4000 K |
| If - Forward Current: | 350 mA |
| Series: | LUXEON Rebel PLUS |
| Brand: | Lumileds |
| RoHS: | Details |
| Type: | LUXEON Rebel PLUS LEDs |
| ECCN | EAR99 |
