| LV8402GP-TE-L-H | ||
|---|---|---|
|
|
||
|
||

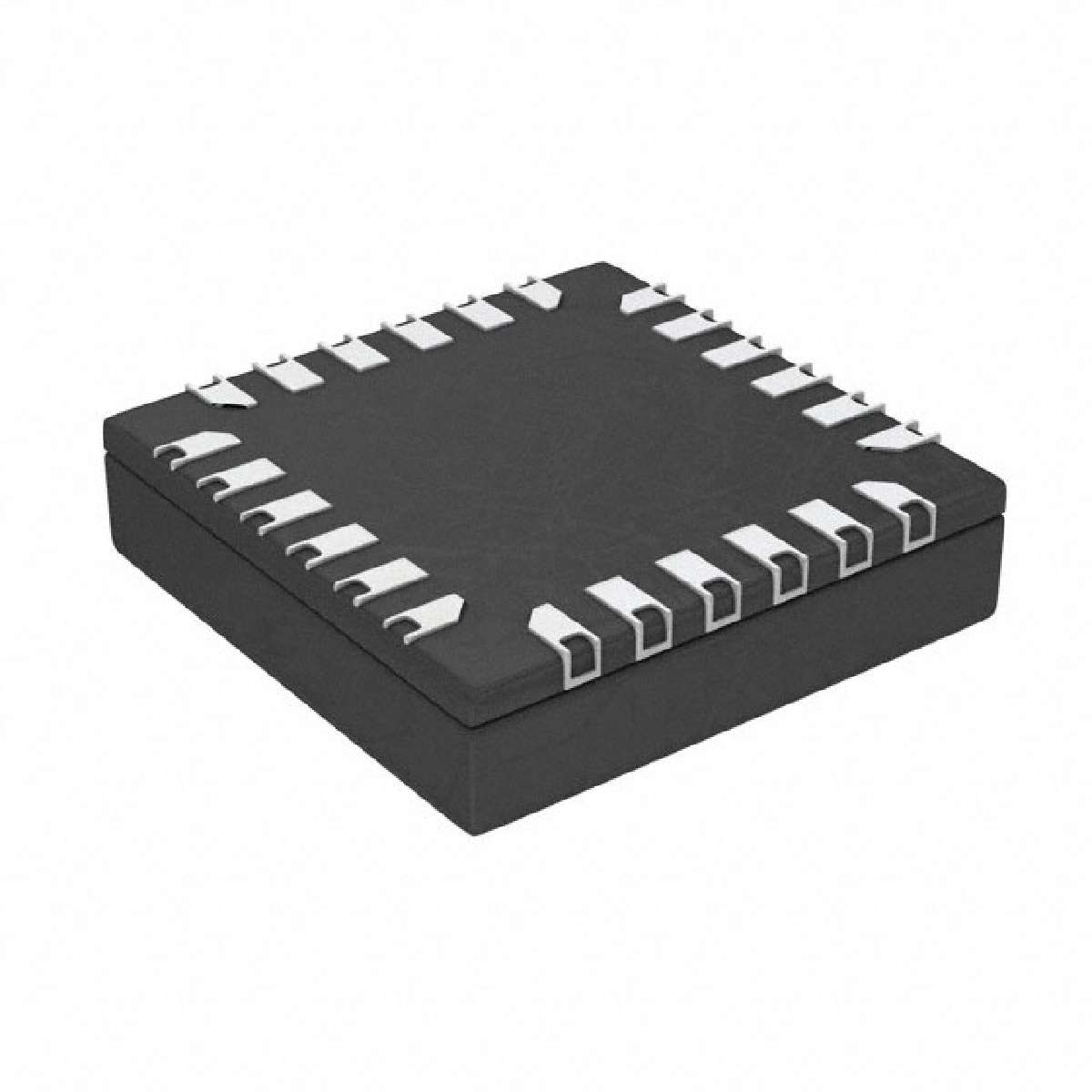

| Product description : LV8402GP Series Dual Ch 6 V 1.4 A 1050 mW Bi-Directional Motor Driver - VCT-24 | ||
| SPQ：2000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Output Configuration | Half Bridge (4) |
|---|---|
| Package / Case | 24-WFQFN |
| Supplier Device Package | 24-VCT (3.5x3.5) |
| Part Status | Active |
| Category | Integrated Circuits (ICs) |
| Voltage - Load | 1.5 V ~ 15 V |
| Applications | General Purpose |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Packaging | Tape & Reel (TR) |
| ECCN | EAR99 |
| Voltage - Supply | 2.8 V ~ 5.5 V |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.4A |
| Interface | Parallel |
| Manufacturer | ON Semiconductor |
| Family | PMIC - Motor Drivers, Controllers |
| Mounting Type | Surface Mount |
| Technology | Bi-CMOS |
| Motor Type - AC, DC | Brushed DC |
