| LTW-S272TLA | ||
|---|---|---|
|
|
||
|
||

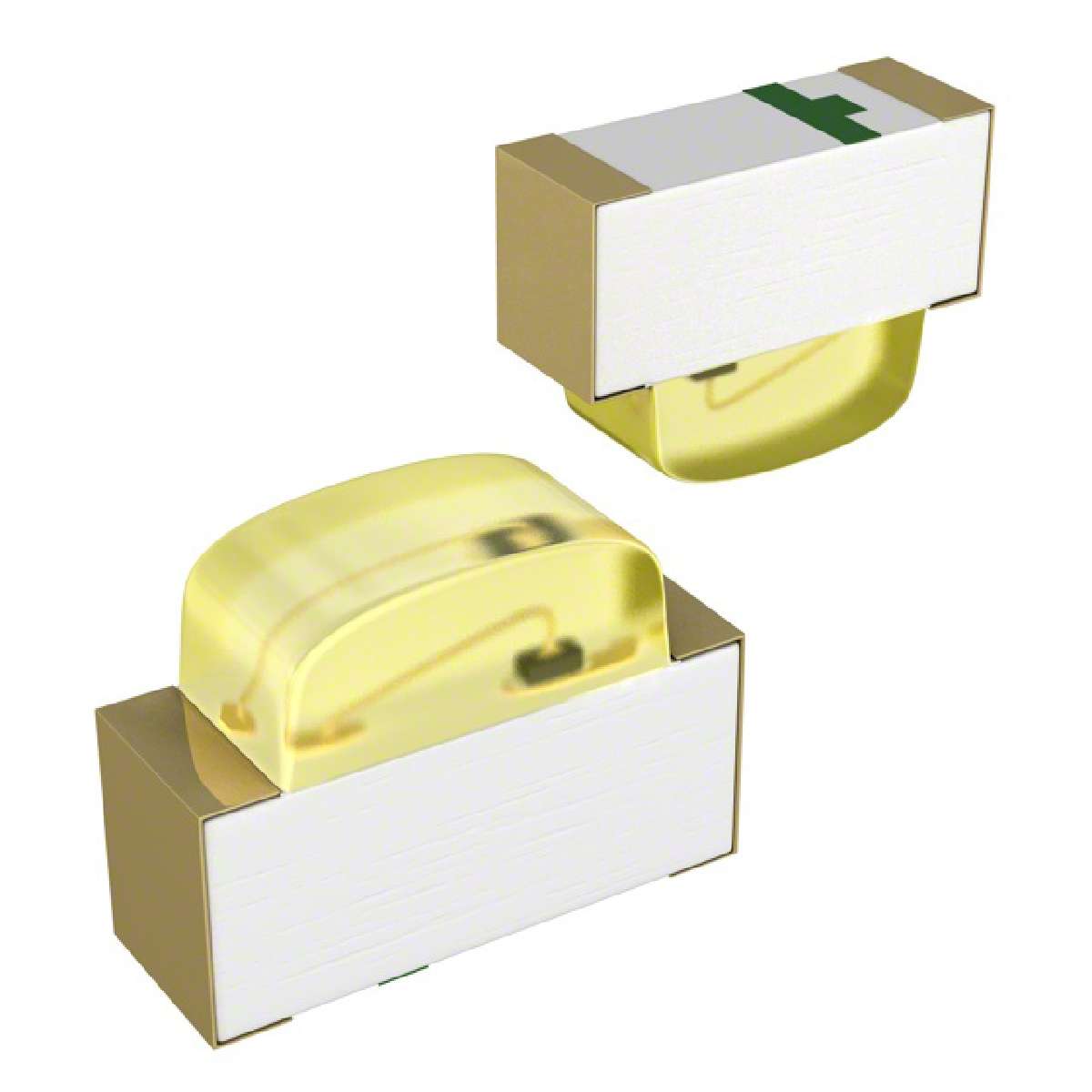

| Product description : White 1.6 x 0.6 mm 130° 180 mcd Tinted 3.4 V Side View SMT LED | ||
| SPQ：4000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Lens Color/Style: | Yellow |
|---|---|
| Packaging: | Reel |
| Power Rating: | 50 mW |
| Minimum Operating Temperature: | - 20 C |
| Package / Case: | Side Looker |
| Height: | 0.6 mm |
| Lens Dimensions: | 1.2 mm x 0.6 mm x 0.47 mm |
| Vf - Forward Voltage: | 3.4 V |
| Length: | 1.6 mm |
| Manufacturer: | Lite-On |
| Factory Pack Quantity: | 4000 |
| RoHS: | Details |
| Maximum Operating Temperature: | + 80 C |
| Width: | 1.15 mm |
| Viewing Angle: | 130 deg |
| Luminous Intensity: | 95 mcd |
| LED Size: | 1.6 mm x 1.15 mm x 0.6 mm |
| Illumination Color: | White |
| Lens Shape: | Semitube |
| Mounting Style: | SMD/SMT |
| Orientation: | Side View |
| If - Forward Current: | 10 mA |
| Vr - Reverse Voltage: | 5 V |
| Brand: | Lite-On |
| Product Category: | Standard LEDs - SMD |
| ECCN | EAR99 |
