| LTST-S326KGJSKT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

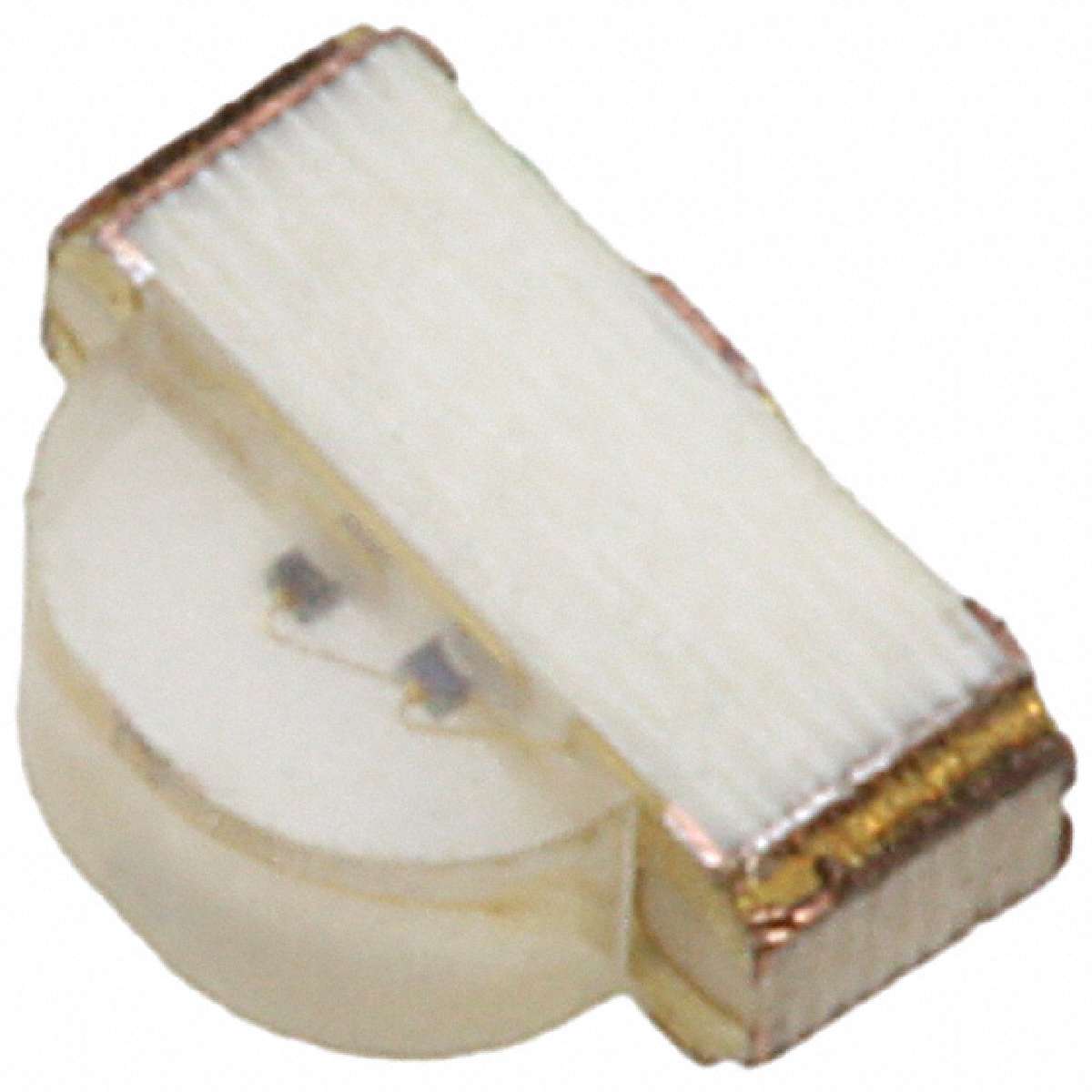

Yellow/Green 130° Water Clear 35/75 mcd 2 V 20 mA Surface Mount LED
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Supplier Device Package | Chip LED |
|---|---|
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Domed Top, 2.00mm x 1.00mm |
| Wavelength - Dominant | 571nm Green, 589nm Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 35mcd Green, 75mcd Yellow |
| ECCN | EAR99 |
| Viewing Angle | 130° |
| Color | Green, Yellow |
| Part Status | Active |
| Manufacturer | Lite-On Inc. |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Yellow |
| Wavelength - Peak | 574nm Green, 591nm Yellow |
| Height (Max) | 1.00mm |
| Lens Transparency | Clear |
| Packaging | Tape & Reel (TR) |
