| LTST-C230GKT | ||
|---|---|---|
|
|
||
|
||

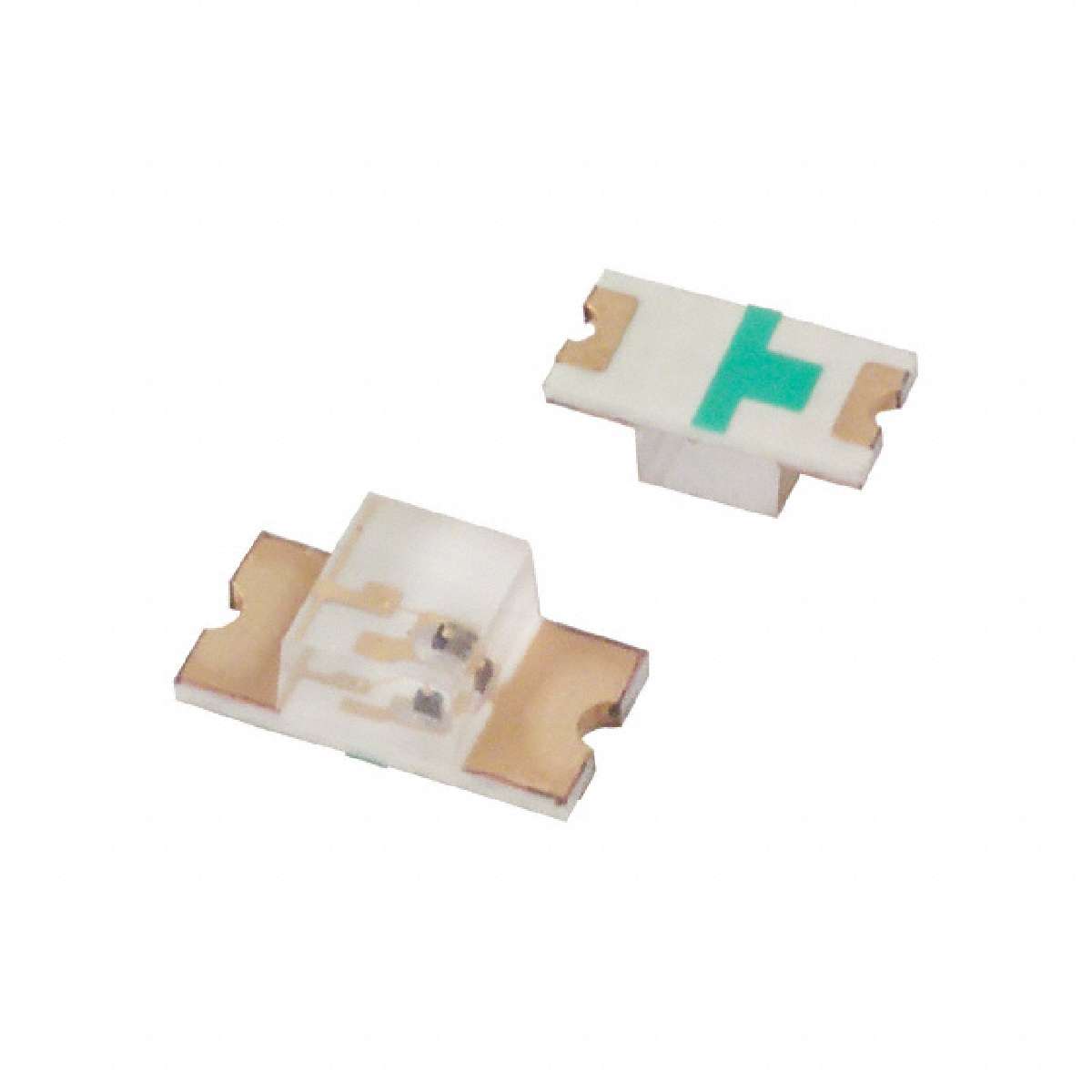

| Product description : Green 3.2 x 1.6 x 1.1mm 130° Water Clear 6 mcd 2.1 V Reverse SMT LED | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Viewing Angle: | 130 deg |
|---|---|
| Lens Color/Style: | Water Clear |
| Power Rating: | 100 mW |
| Minimum Operating Temperature: | - 55 C |
| LED Size: | 3.2 mm x 1.6 mm |
| Illumination Color: | Green |
| Lens Shape: | Rectangular |
| Mounting Style: | SMD/SMT |
| Orientation: | Top View |
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 565 nm |
| Factory Pack Quantity: | 3000 |
| RoHS: | Details |
| Wavelength: | 569 nm |
| ECCN | EAR99 |
| Width: | 1.6 mm |
| Packaging: | Reel |
| Luminous Intensity: | 14 mcd |
| Wavelength/Color Temperature: | 569 nm |
| Package / Case: | 1206 |
| Height: | 1.1 mm |
| Lens Dimensions: | 1.49 mm x 1.6 mm |
| Vf - Forward Voltage: | 2.1 V |
| Length: | 3.2 mm |
| Manufacturer: | Lite-On |
| Vr - Reverse Voltage: | 5 V |
| Brand: | Lite-On |
| Product Category: | Standard LEDs - SMD |
| Maximum Operating Temperature: | + 85 C |
