| LTST-C195TBKFKT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

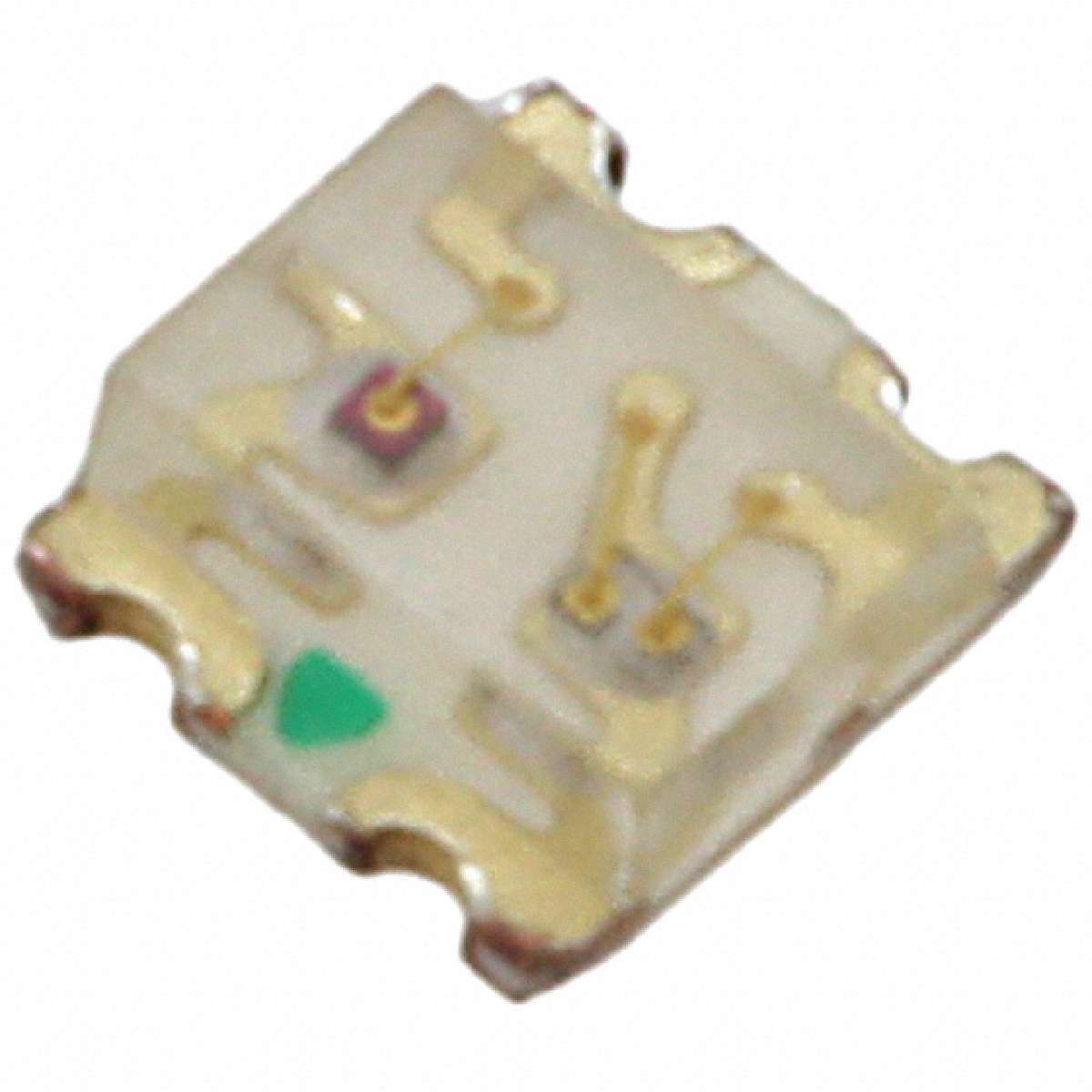

Blue / Orange 1.6 x 1.5 x 0.55 mm 130° Clear 180 mcd 3.5 / 2.4 V LED SMT
|
||
| 标准包装：4000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Supplier Device Package | Chip LED |
|---|---|
| Package / Case | 0605 (1613 Metric) |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.10mm x 1.50mm |
| Wavelength - Dominant | 470nm Blue, 605nm Orange |
| Current - Test | 20mA Blue, 20mA Orange |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 104mcd Blue, 113mcd Orange |
| ECCN | EAR99 |
| Viewing Angle | 130° |
| Color | Blue, Orange |
| Part Status | Active |
| Manufacturer | Lite-On Inc. |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 2V Orange |
| Wavelength - Peak | 468nm Blue, 611nm Orange |
| Height (Max) | 0.55mm |
| Lens Transparency | Clear |
| Packaging | Digi-Reel® |
