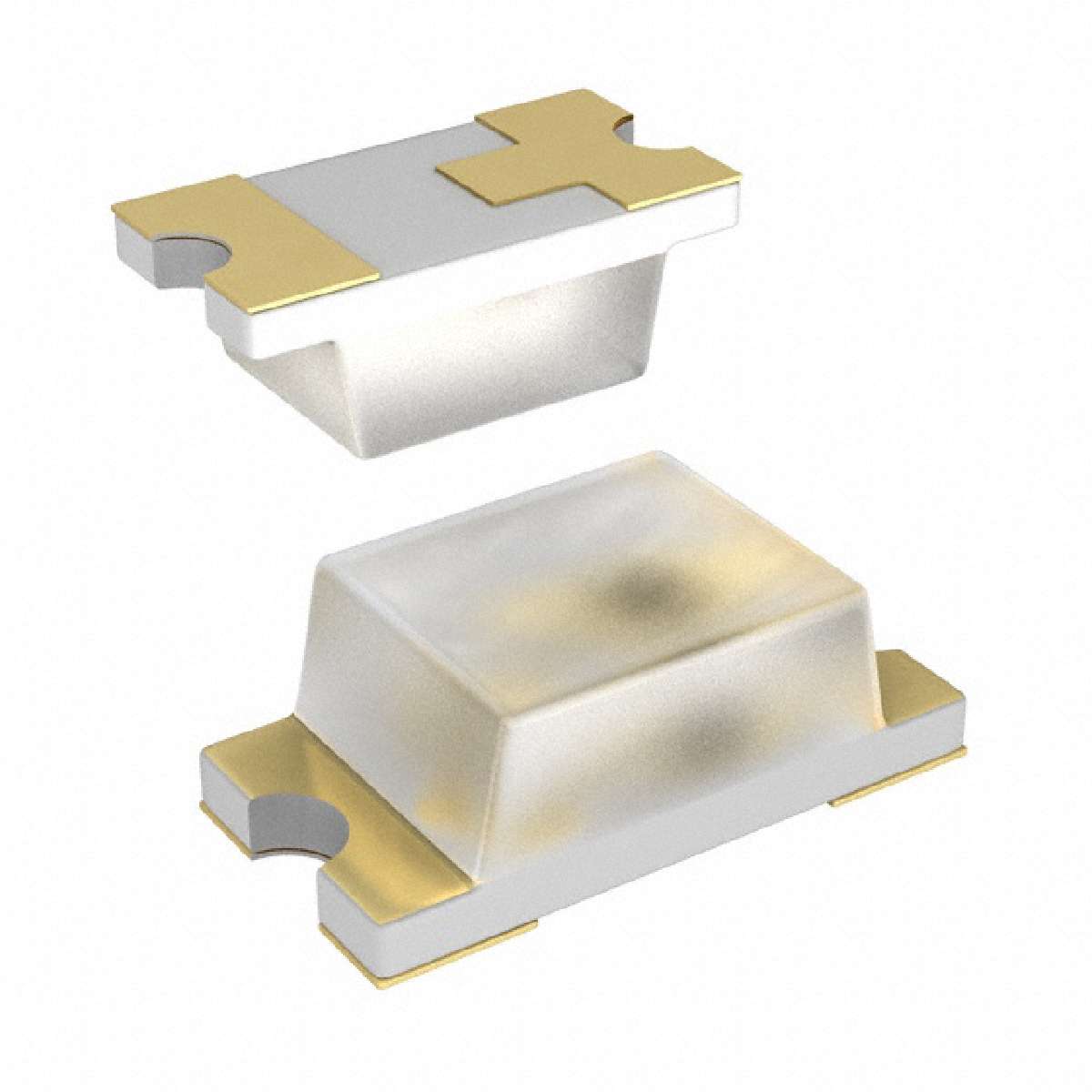

| LTST-C191TBKT-5A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
LED; SMD; 0603; blue; 11.2÷15mcd; 1.6x0.8x0.55mm; 130°; 2.8÷3.05V
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Supplier Device Package | * |
|---|---|
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Category | Optoelectronics |
| Lens Style/Size | Rectangle with Flat Top, 1.10mm x 0.80mm |
| Wavelength - Dominant | 473nm |
| Current - Test | 5mA |
| Family | LED Indication - Discrete |
| Mounting Type | Surface Mount |
| Millicandela Rating | 15mcd |
| ECCN | ECL99 |
| Viewing Angle | 130° |
| Color | Blue |
| Part Status | Active |
| Manufacturer | Lite-On Inc. |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Wavelength - Peak | 468nm |
| Height (Max) | 0.55mm |
| Lens Transparency | Clear |
| Packaging | Tape & Reel (TR) |
