| LTST-C190TBKT | ||
|---|---|---|
|
|
||
|
||

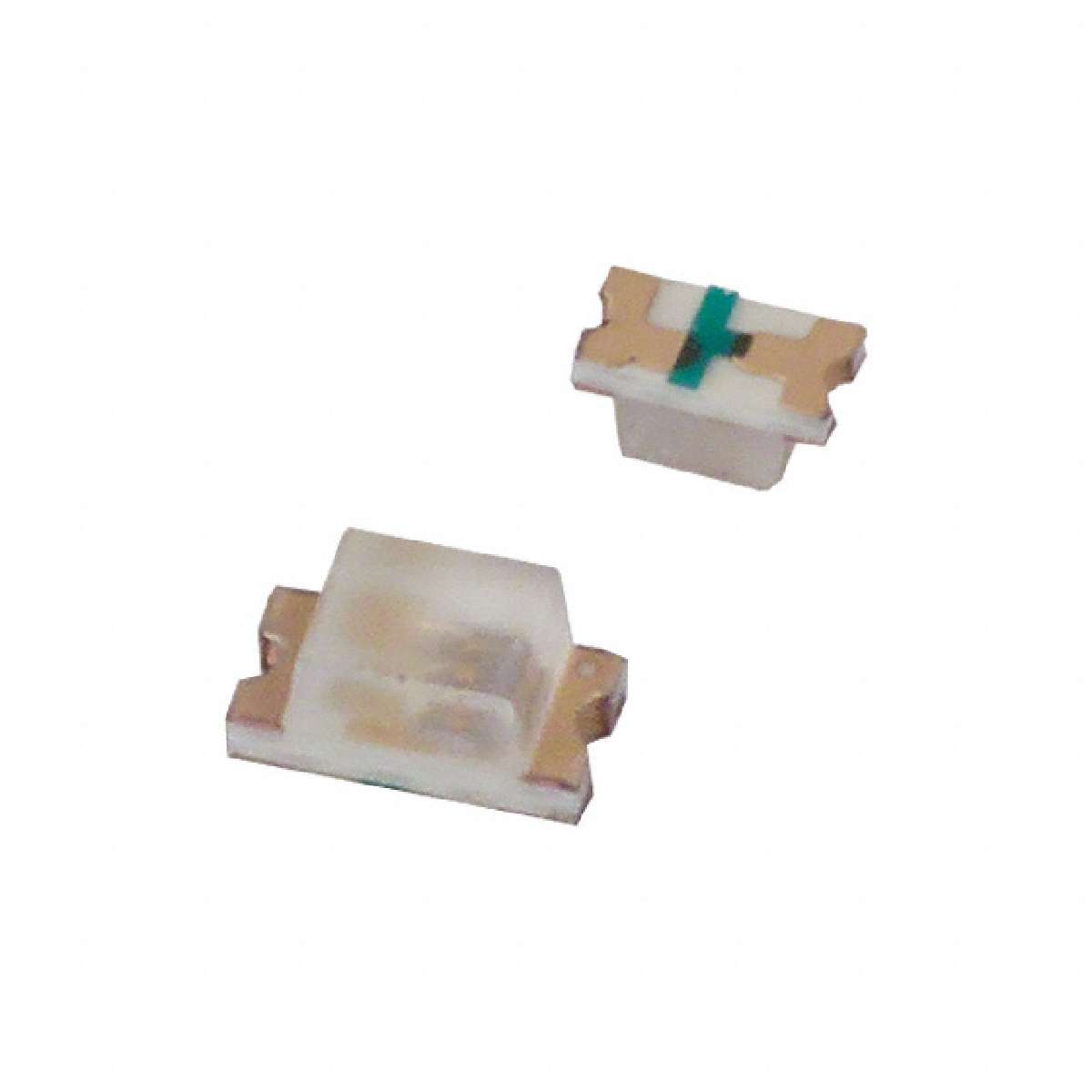

| Product description : Blue 1.6 x 0.8 x 0.8 mm 130° Water Clear 112 mcd 3.8 V SMT LED | ||
| SPQ：4000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Viewing Angle: | 130 deg |
|---|---|
| Lens Color/Style: | Water Clear |
| If - Forward Current: | 20 mA |
| Peak Wavelength: | 468 nm |
| Minimum Operating Temperature: | - 20 C |
| Brand: | Lite-On |
| RoHS: | Details |
| LED Size: | 0603 |
| Illumination Color: | Blue |
| Mounting Style: | SMD/SMT |
| Vf - Forward Voltage: | 2.8 V to 3.8 V |
| ECCN | EAR99 |
| Orientation: | Top View |
| Packaging: | Reel |
| Manufacturer: | Lite-On |
| Luminous Intensity: | 28 mcd to 112 mcd |
| Factory Pack Quantity: | 3000 |
| Wavelength/Color Temperature: | 465 nm to 475 nm |
| Package / Case: | 0603 |
| Product Category: | Standard LEDs - SMD |
| Lens Shape: | Rectangular |
| Wavelength: | 465 nm to 475 nm |
| Maximum Operating Temperature: | + 80 C |
