LTD-4608JR | ||
---|---|---|
|
||
|
||
产品描述:

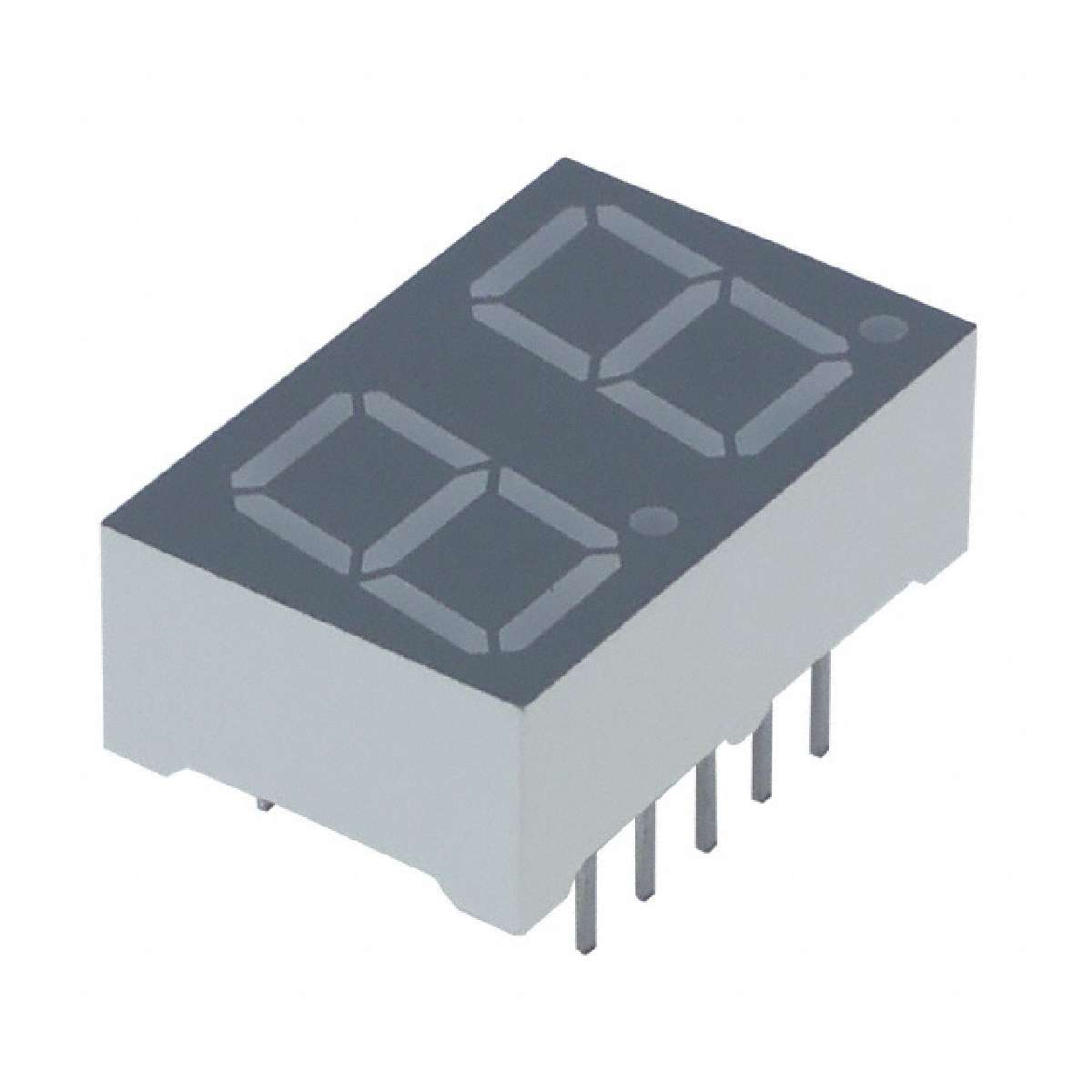

0.4 inch 70 mW Dual Digit Seven-Segment RED Common Anode Display
|
||
标准包装:1 | ||
数据手册: |
Display Type: | 7 Segment |
---|---|
Product: | LED Display |
If - Forward Current: | 20 mA |
Luminous Intensity: | 850 ucd |
Minimum Operating Temperature: | - 35 C |
Brand: | Lite-On |
Power Consumption: | 70 mW |
Number of Digits: | 2 |
Configuration: | Common Anode |
Wavelength: | 631 nm |
Maximum Operating Temperature: | + 105 C |
Character Size: | 0.4 in |
Packaging: | Tube |
Manufacturer: | Lite-On |
Operating Temperature Range: | - 35 C to + 105 C |
Factory Pack Quantity: | 24 |
RoHS: | Details |
Product Category: | LED Displays & Accessories |
Illumination Color: | Red |
Mounting Style: | Through Hole |
Vf - Forward Voltage: | 2 V |
ECCN | EAR99 |
