LSHD-7503 specifications -Ameya360 electronic components purchase network


LSHD-7503

ACTIVE EAR99

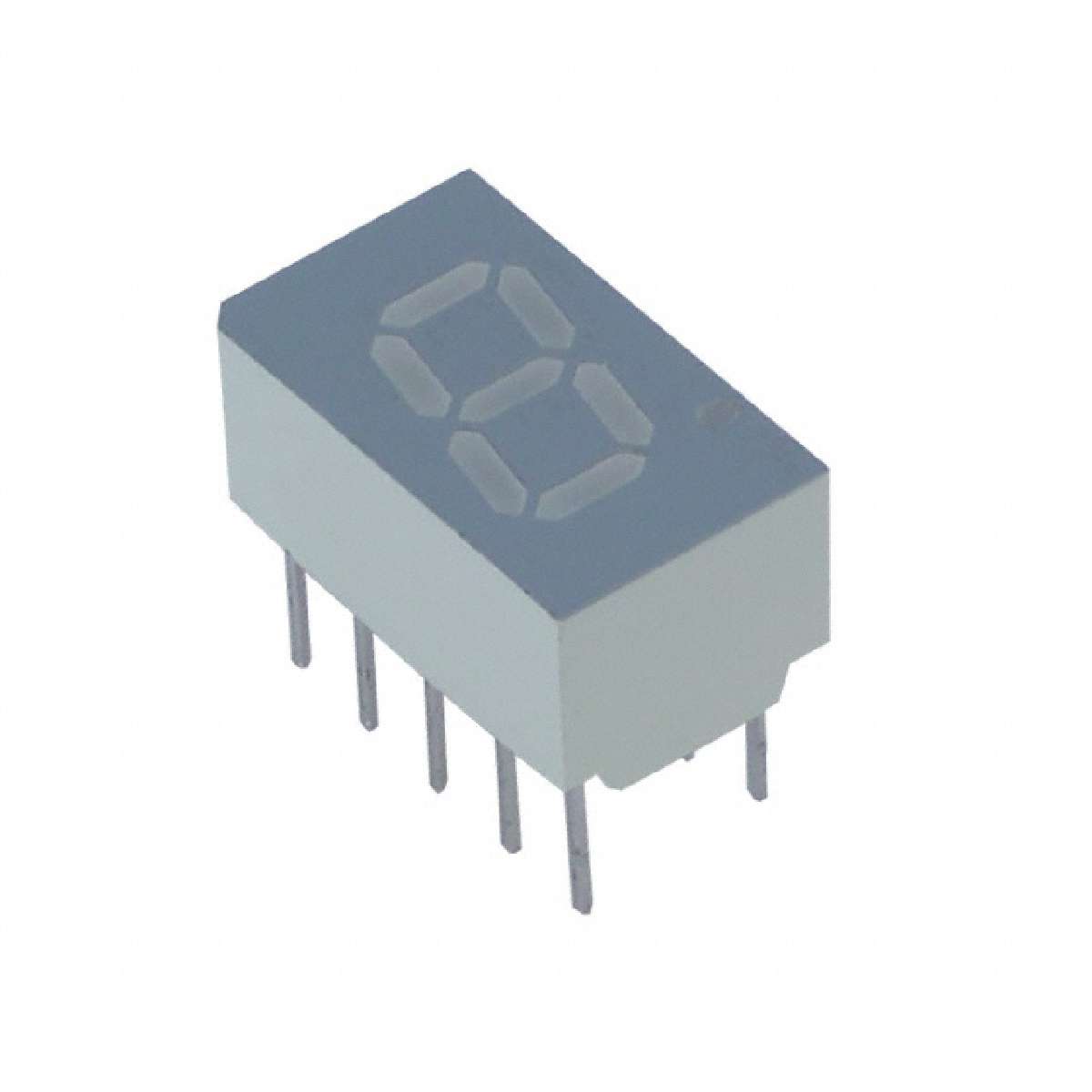

Product description : Single Digit 0.3 Inch Seven Segment Common Cathode
SPQ：39
Datasheet : LSHD-7503.pdf

Packaging:	Tube
Character Size:	7.62 mm
Manufacturer:	Lite-On
Operating Temperature Range:	- 35 C to + 105 C
Factory Pack Quantity:	39
RoHS:	Details
Product Category:	LED Displays & Accessories
Illumination Color:	Red
Mounting Style:	Through Hole
Vf - Forward Voltage:	2.1 V
ECCN	EAR99
Display Type:	7 Segment
If - Forward Current:	25 mA
Luminous Intensity:	923 ucd to 12000 ucd
Minimum Operating Temperature:	- 35 C
Brand:	Lite-On
Power Consumption:	70 mW
Number of Digits:	1
Configuration:	Common Cathode
Wavelength:	624 nm
Maximum Operating Temperature:	+ 105 C

Datasheet： LSHD-7503.pdf
